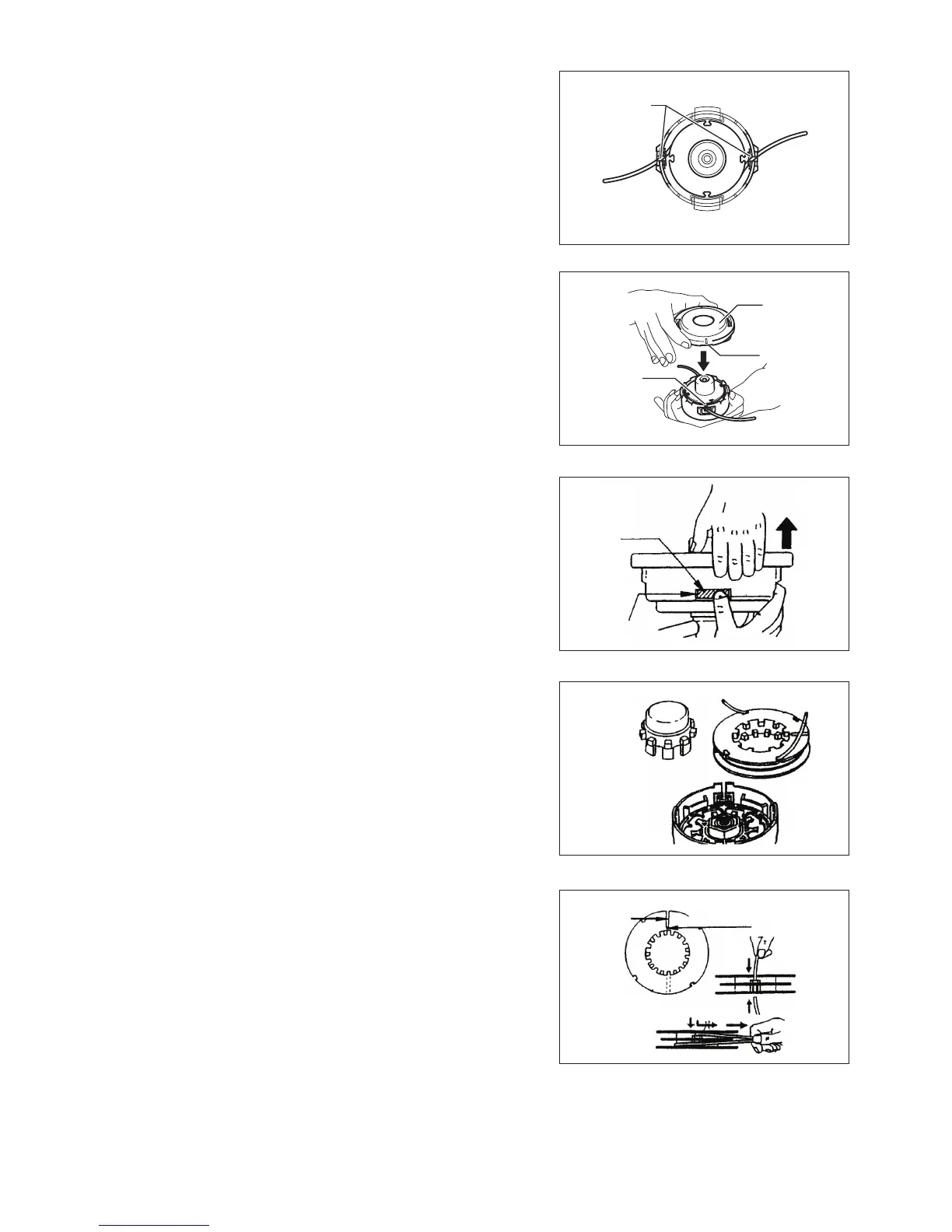

Mount the spool in the housing so that the grooves and protrusions on the spool
match up with those in the housing. Keep the side with letters on the spool visible
on the top. Now, unhook the ends of the cord from their temporary position and feed
the cords through the eyelets to come out of the housing.
Align the protrusion on the underside of the cover with the slots of the eyelets.
Then push cover firmly onto the housing to secure it. Make sure the latches fully
spread in the cover.
Replacing the nylon cord (ULTRA AUTO)
1. Put off cover from housing, pressing two cover locking tabs located oppositely
on side of the housing.
2. Take off tab knob and spool from the housing.
3. Put each one end of two cutting lines into each holes at innermost of the slot on
one of spool outer anges. Put the lines into spool gutters through each slit on
the anges.
Eyelets
Cover
Protrusion
Slot of
eyelet
Pull up
Cover
locking tab
Tab knob
Spool
Slit
There is a hole
innermost of the slit
