5. About the engine
90

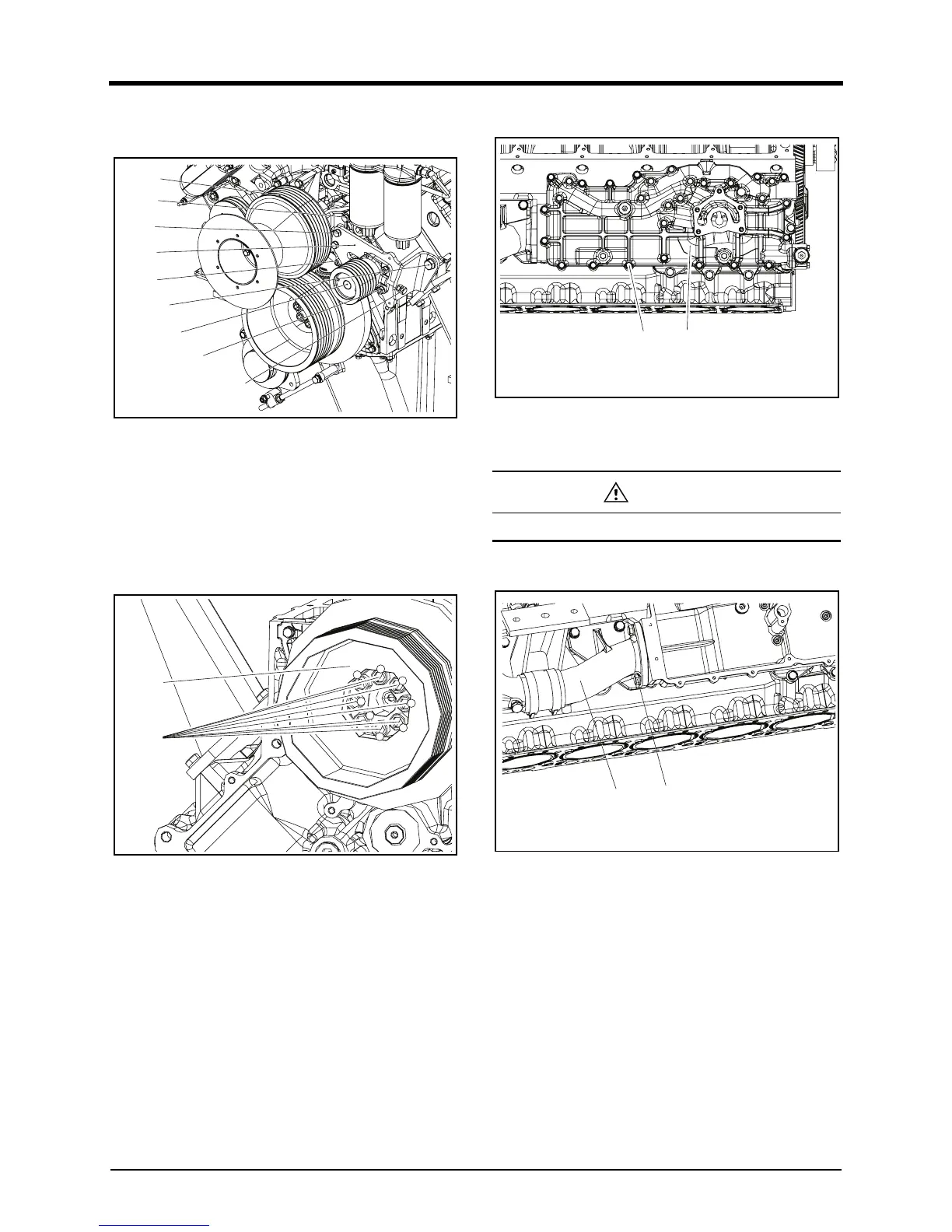

35. Remove the idle pulley and cooling fan pulley
a
ssembly.
DV2213174A
1) Loosen 1 fixing bolt(A) and 2 fixing nuts(B).
2) Remove the idle pulley(C).
3) Loosen 1 fixing bolt(D) and 2 fixing bolts(E).
4) Remove the idle pulley bracket(F).
5) Loosen 3 fixing bolts and 1 socket bolt.
6) Remove the cooling fan assembly(I).
36. Remove the crankshaft pulley.
DV2213175A
1) Loosen 8 fixign bolts(A) in the order of 1 ~ 8.
2) Remove the crankshaft pulley(B).
37. Remove the oil cooler cover.
DV2213083A
1) Loosen 20 fixing bolts(A).
2) Remove the oil cooler cover(B).
38. Remove the cooling water pipe.
DV2213084A
1) Loosen fixing bolts(A).
2) Remove the cooling water pipe(B).
H
E
F
G
B
I
D
A
C
A
B
1
2
3
4
5
6
7
8
CAUTION
Remove the gasket on the assembly surface.
A
B
A
B
A
B
