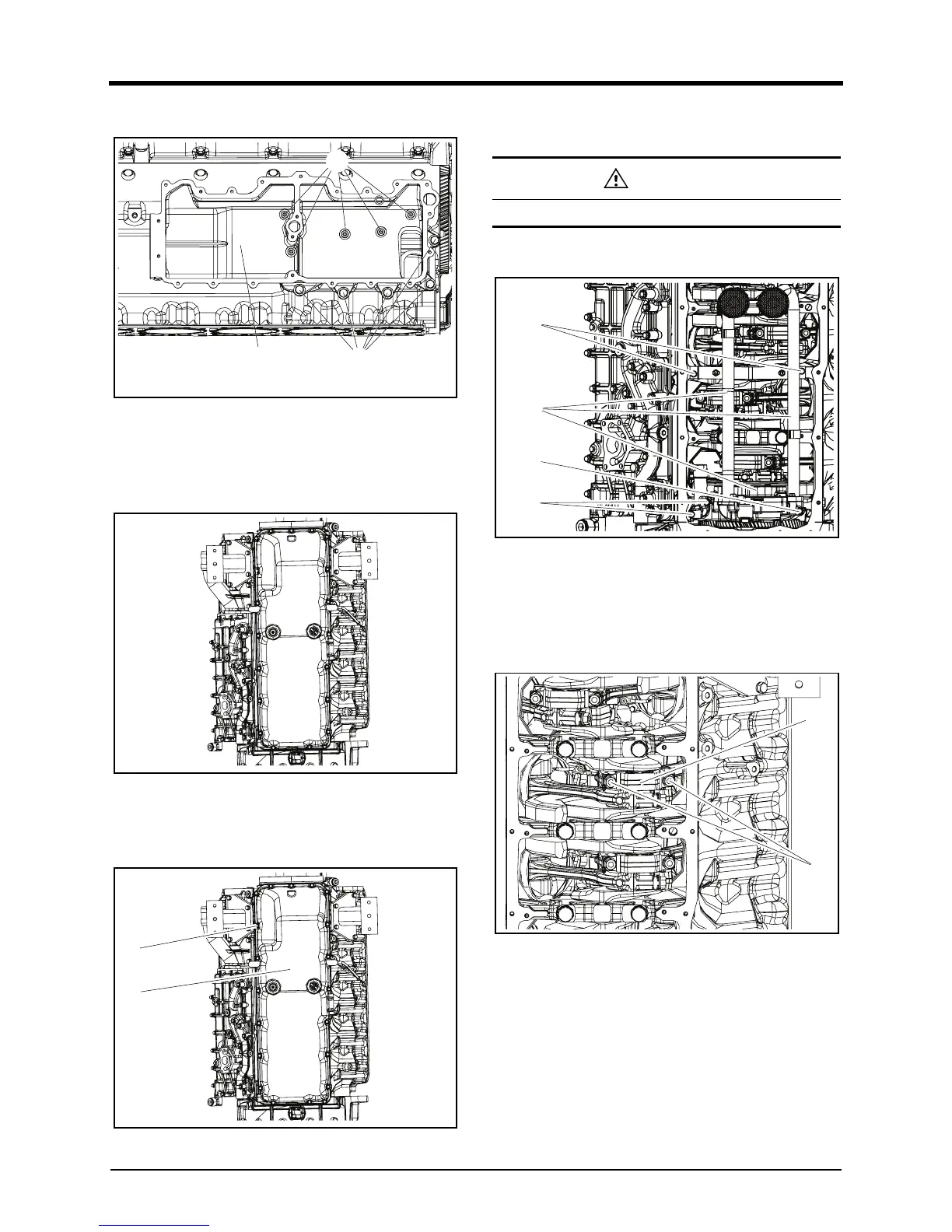

Doosan DP158LDF - Page 58

5. About the engine
91
39. Remove the oil cooler housting.
DV2213085A
1) Loosen 5 inner socket bolts(A).
2) Loosen 5 outer fixing bolts(B).
3) Remove the oil cooler housting(C).
40. Change the engine position.
DV2213176A
1) Change the engine position. The flywheel housing
di
rection is downward.
41. Remove the oil pan.
DV2213086A
1) Loosen 20 fixing bolts(A).
2) Remove the oil pan(B).
42. Remove the oil suction pipe and the oil pump.
DV2213087A
1) Loosen 2 fixing bolts(A).
2) Loosen 2 fixing bolts(B).
3) Loosen the fixing bolt(C).
4) Remove the oil suction pipe and the oil pump(D).
43. Remove the connecting rod and piston assembly.
DV2213088A
1) Loosen 2 connecting rod bolts and then remove the
conn
ecting rod cap(B).
2) Push the connectin rod.
C
B
A
A
B
CAUTION
Remove the gasket on the assembly surface.
A
B
C
D
A
B
