5. About the engine
111

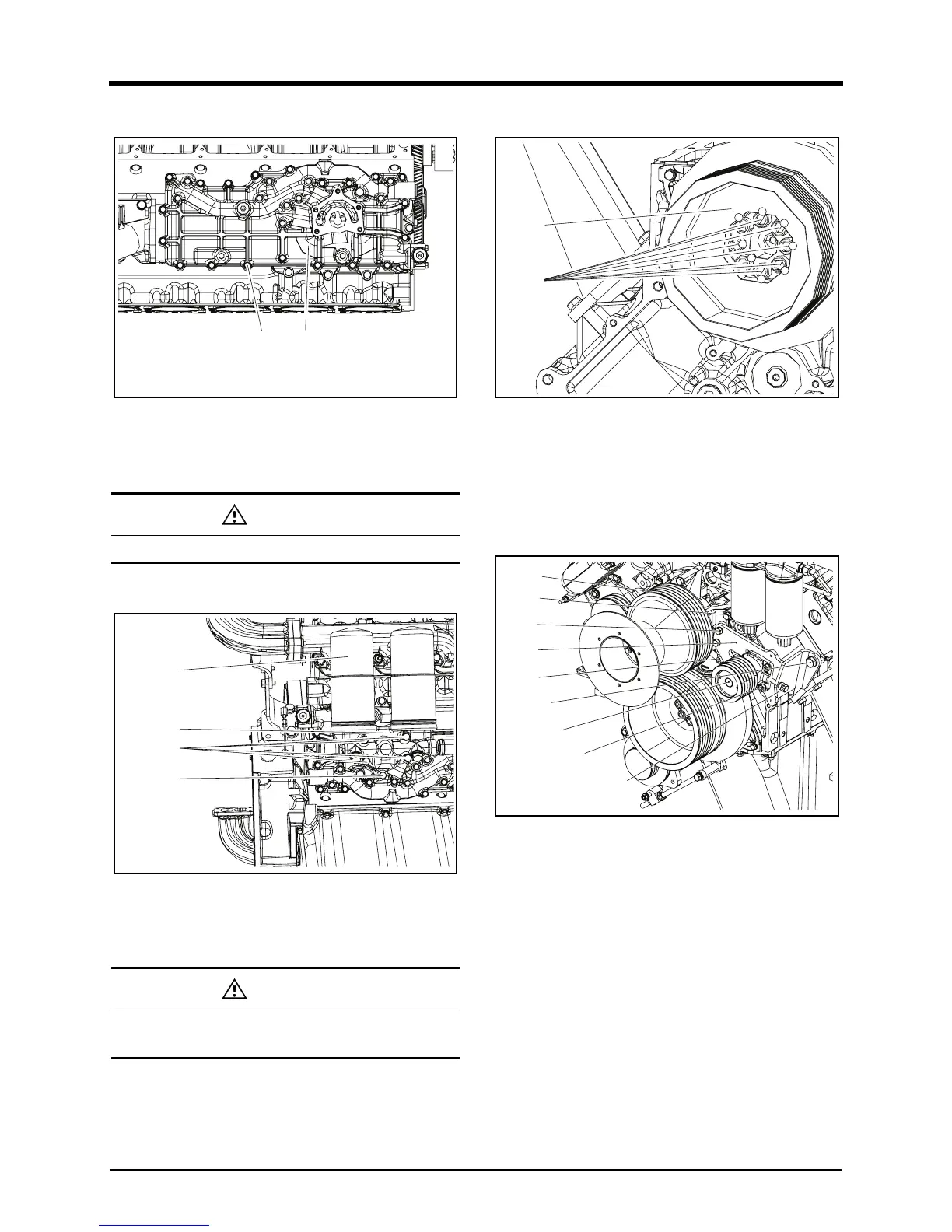

48. Attach the oil cooler cover.
DV2213083A
1) Attach the oil cooler and the oil cooler cover(B).
2) Tighten 20 M8 fixing bolts(A) at a tightening torq
ue
2
.2kgf·m.
49. Attach the oil filter assembly.
DV2213082A
1) Attach the oil filter housing(D).
2) Tighten the fixign bolts(B) and (C).
3) Attach the oil filter(A) with the chain plier(EF.200-038).
50. Attach the crankshaft pulley.
DV2213190A
1) Attach the crankshaft pulley(B).
2) Tighten 8 M16 stud head bolts(A) at a tighteni
ng
t
orque 21.0kgf·m ±1.0kgf·m.
Note) Tighten the stud head bolts in the order from (1)
~ (8).
51. Attach the cooling fan pulley and the idle pulley.
DV2213174A
1) Attach the cooling fan pulley assembly(I).
2) Tighten 3 fixing bolts(G) and 1 socket bolt(H) at
a
t
ightening torque 4.4kgf·m ± 0.33kgf·m.
3) Fix the cooling fan pulley using the jig.
4) Tighten 1 cooling fan fixing bolt at a tightening tor
que
20kg
f·m.
5) Attach the idle pulley bracket(F).
6) Tighten 3 fixing bolts(G) and 1 socket bolt(H) at
a
t
ightening torque 4.4kgf·m ± 0.33kgf·m.
7) Tighten 1 fixing bolt(D).
8) Attach the idle pulley(C).
CAUTION
Make sure that the gaskets have been attached.
CAUTION
• Make sure that the gaskets have been attached.
• Be careful not to run down oil.
A
B
A
D
B
C
A
B
8
7
5
6
3
4
2
1
H
E
F
G
B
I
D
A
C
