17DORMA
Center line
Before drilling any holes, make sure
there are no cables and/or pipes in the way.

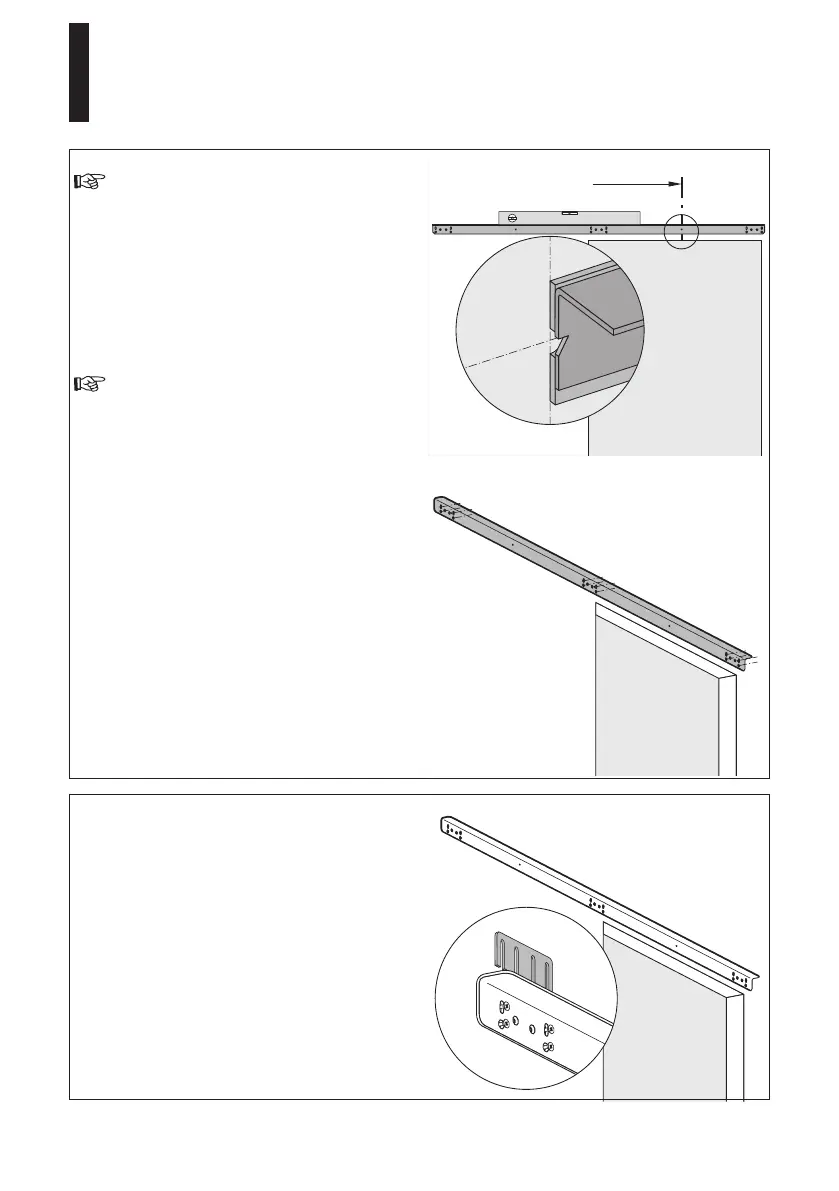

Position the fixing bracket onto the center line.
Ensure that the bottom vertex of the triangle is
located exactly on the center line.
Aling the fixing bracket so that it is level.
Fix the bracket with screws
(one screw respectively per one oblong hole on
each side).
Use adequate wall plugs and screws depen-
ding on the prevailing structure
when fixing the bracket.
The supplied screws and wall plugs are
suitable for concrete and brickwork.
Recheck the fixing bracket for exact
positioning.
Drill the further holes through the drill holes in
the fixing bracket and fix the bracket with at
least 12 screws.
In case of uneven walls you have to shim the
bracket so that it does not bend.
Use the enclosed distance plates in different
sizes for this purpose.
Installation and Maintenance Manual
CS 80 MAGNEO
—
