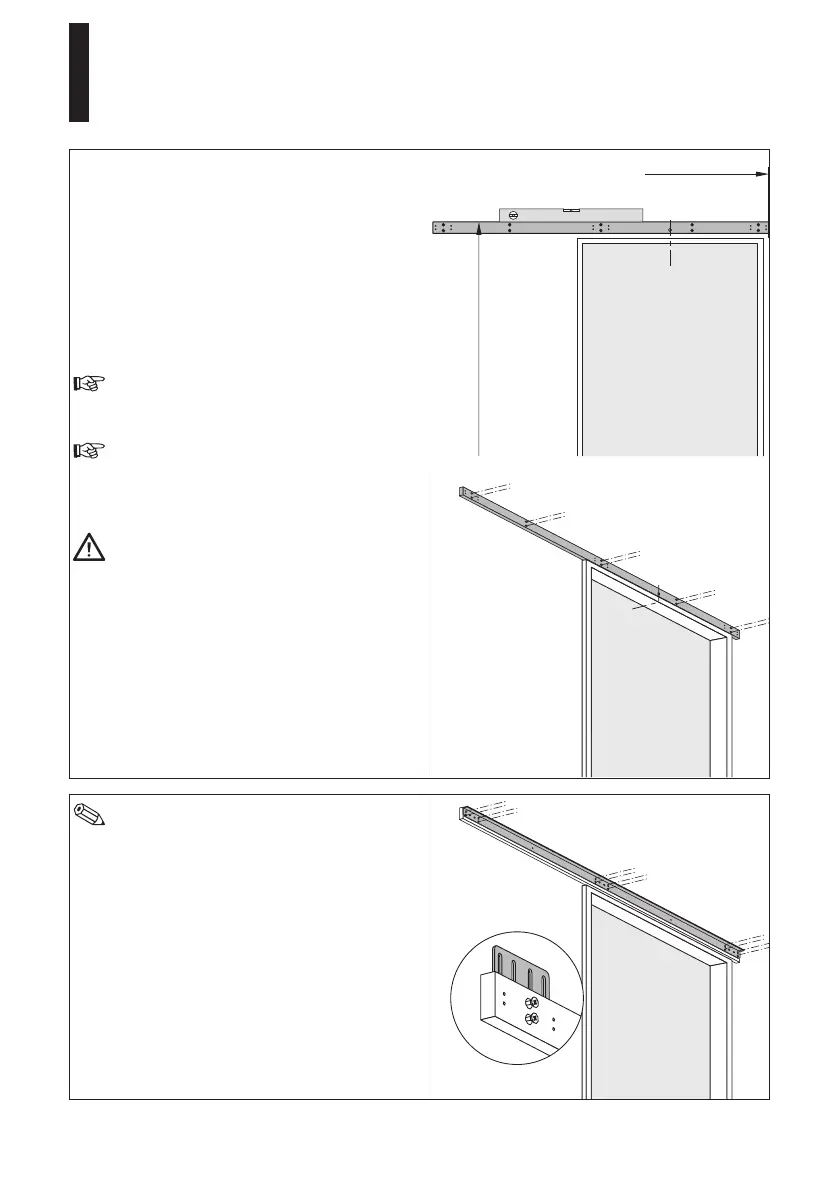

Mounting with shim plate
Position the shim plate at the reference line.
Calculate the dimension from the floor to the
upper edge of the shim plate as follows:
Doorpanelheight+3.1”[78mm]
When using DORMA MANET single-point fixings:
Doorpanelheight+2.9”[74mm]
Align the shim plate so that it is level and mark
the drill holes.
Before drilling any holes, make sure
there are no cables and/or pipes in the way.
Drill the marked holes and fix the shim plate.
Use adequate wall plugs and screws with
respect to the prevailing structure.
The supplied screws and wall plugs are
suitable for concrete and brickwork.
The load-bearing capacity of the fixing bra-
cket must amount to at least 528 lbs.
In case the frame is thicker than .375” you
have to underlay the shim plate with the
enclosed distance plates so that it is flush
with the door frame.
Use 12 screws to fix the bracket to the shim
plate.
