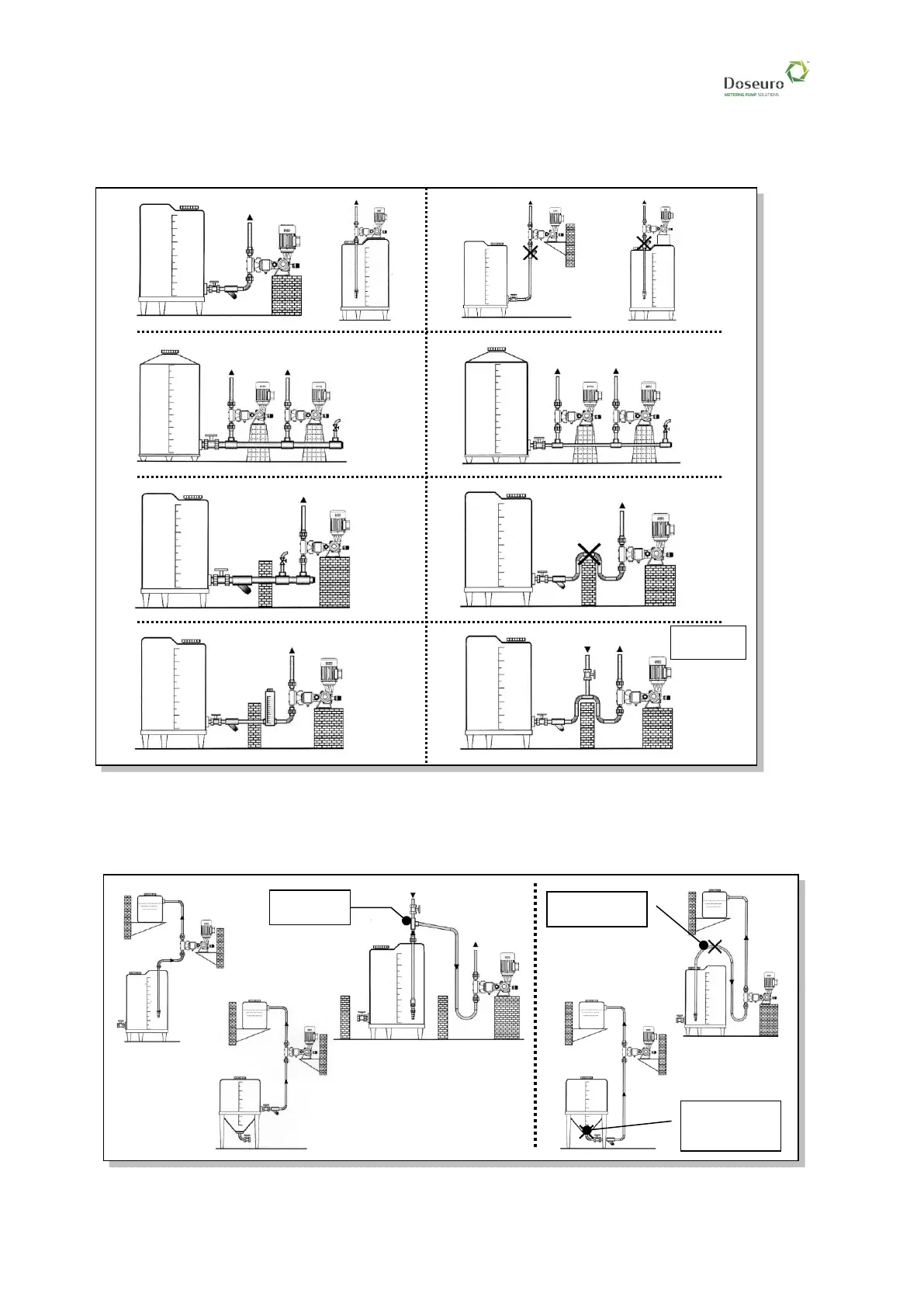

EXAMPLES OF SUCTION PIPING CONNECTION

CORRECT APPLICATION INCORRECT APPLICATION

EXAMPLES OF SUCTION PIPING CONNECTION

CORRECT APPLICATION INCORRECT APPLICATION

Draws out

deposits from

the bottom

Interrupts the

vein of the fluid

Acceptable

execution

Acceptable

solution
