SECTION 5 TROUBLESHOOTING
0855849enf 6/08 57
1.0 Troubleshooting Guidelines
The LED indicators on the user interface module will indicate when
the coder is not ready for printing. Further details will be displayed on
the Top Level Menu.
If you encounter a problem that is not covered in this guide, ask your
company's setup technician for assistance.
Diagnostic information can be found in Section 4 of the
Model 5200/5400 Service Guide (P/N 0855855).
Information about error and warning messages can be found in the
document, Model 5200/5400 Fault Messages P/N 10019996.
2.0 Signal Lights
LED indicators on the print station and on each printhead are used to
monitor the coder. The Top Level Menu provides additional
information.
The optional signal tower is also used to monitor the coder.

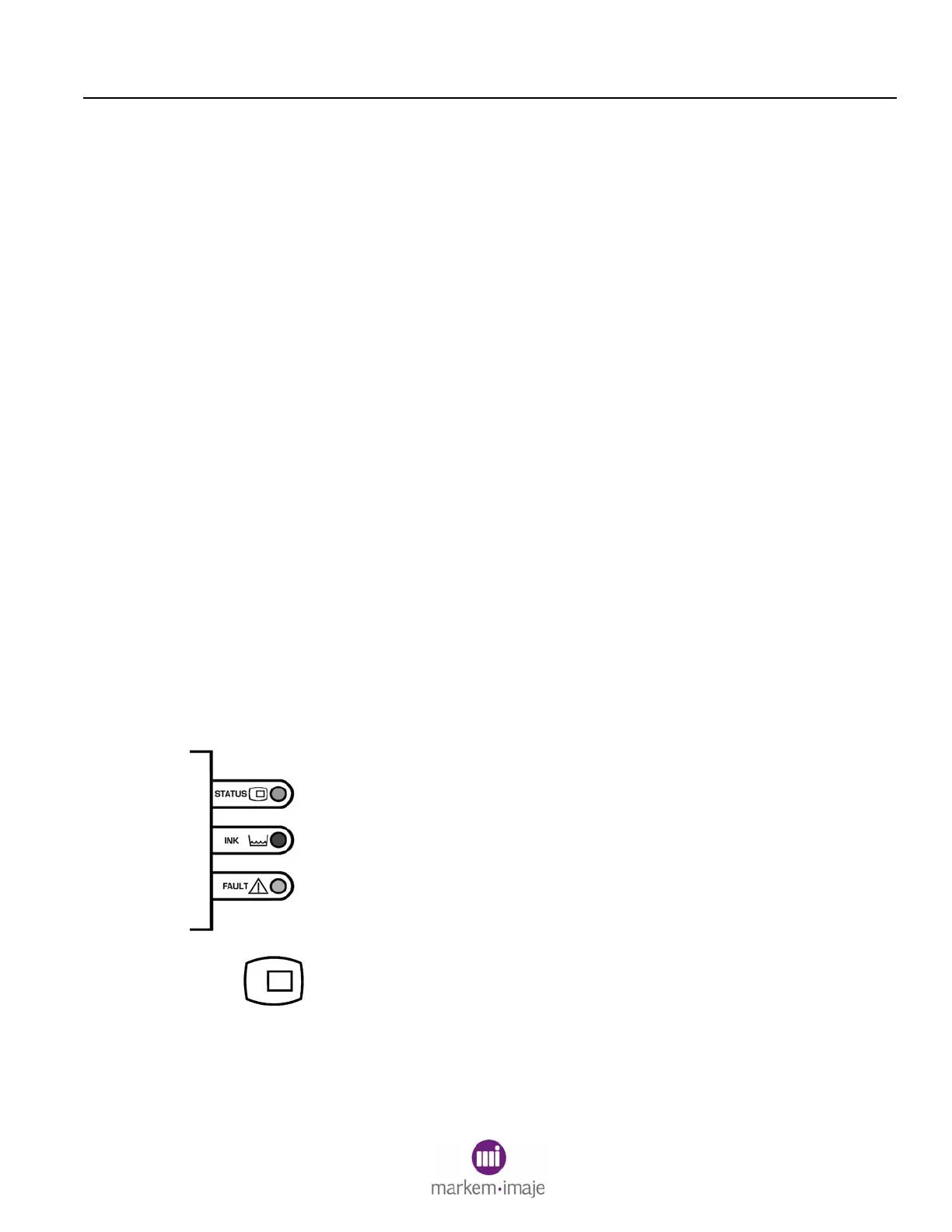

2.1 LED Indicators on the Print Station
LED indicators are located on the user interface module. The Top
Level Menu provides messages to indicate the nature of the printing
status, ink supply, and fault condition.
The green STATUS LED indicates whether conditions are met for
printing.
The blue INK LED indicates when the coder needs ink.
The amber FAULT LED indicates when the coder needs attention.
STATUS LED
On Online
Off Power is off
Blinking Warming up or cooling down (fast blinking) or
Printhead is offline (slow blinking)
