SECTION 2 BASIC OPERATION
0855849enf 6/08 23

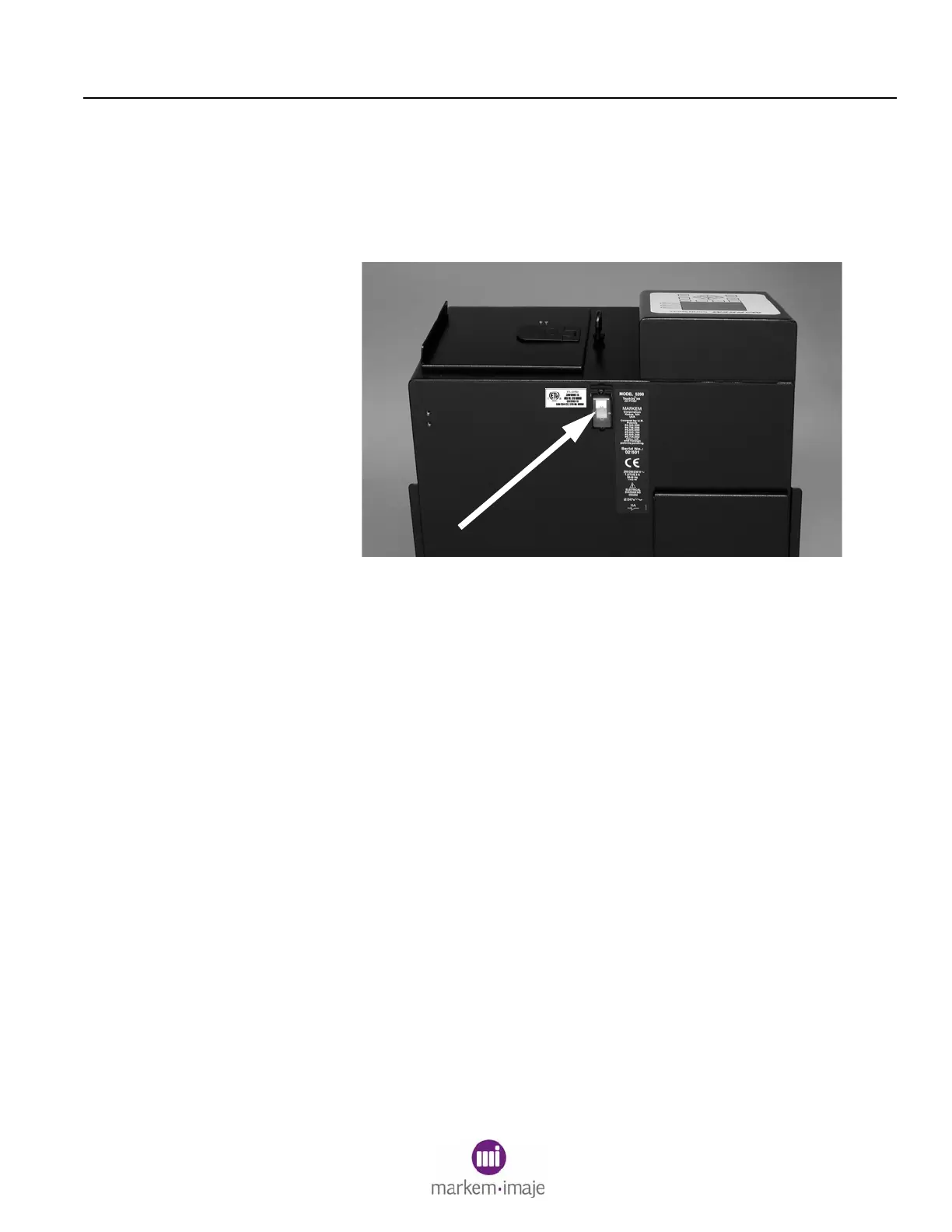

2.0 The Power Switch
The power switch (1) is located on the rear of the print station, and is
used to turn the coder on and off.
The I position is ON. The 0 position is OFF.
2.1 Powering On the Coder
Turning the power switch to the I position powers on the coder and
initializes the coder.
• The green STATUS LED will blink.
• The Version menu will appear briefly.
• The Top Level menu will appear.
• The status message will say Warming up or Shut Down.
If the status message indicates the coder is shut down, the start up
process can be initiated by pressing F3 (Start Up).
A prompt will ask you to confirm that you want to start up.
Select YES.
• The amber LED on the printhead will begin to blink.
After about 60 minutes, the blinking green STATUS LED will begin to
blink slowly, indicating that the coder is ready for printing.
