Instructions for use | Atlan A100 (XL), A300 (XL), A350 (XL) SW 2.1n 35
Overview

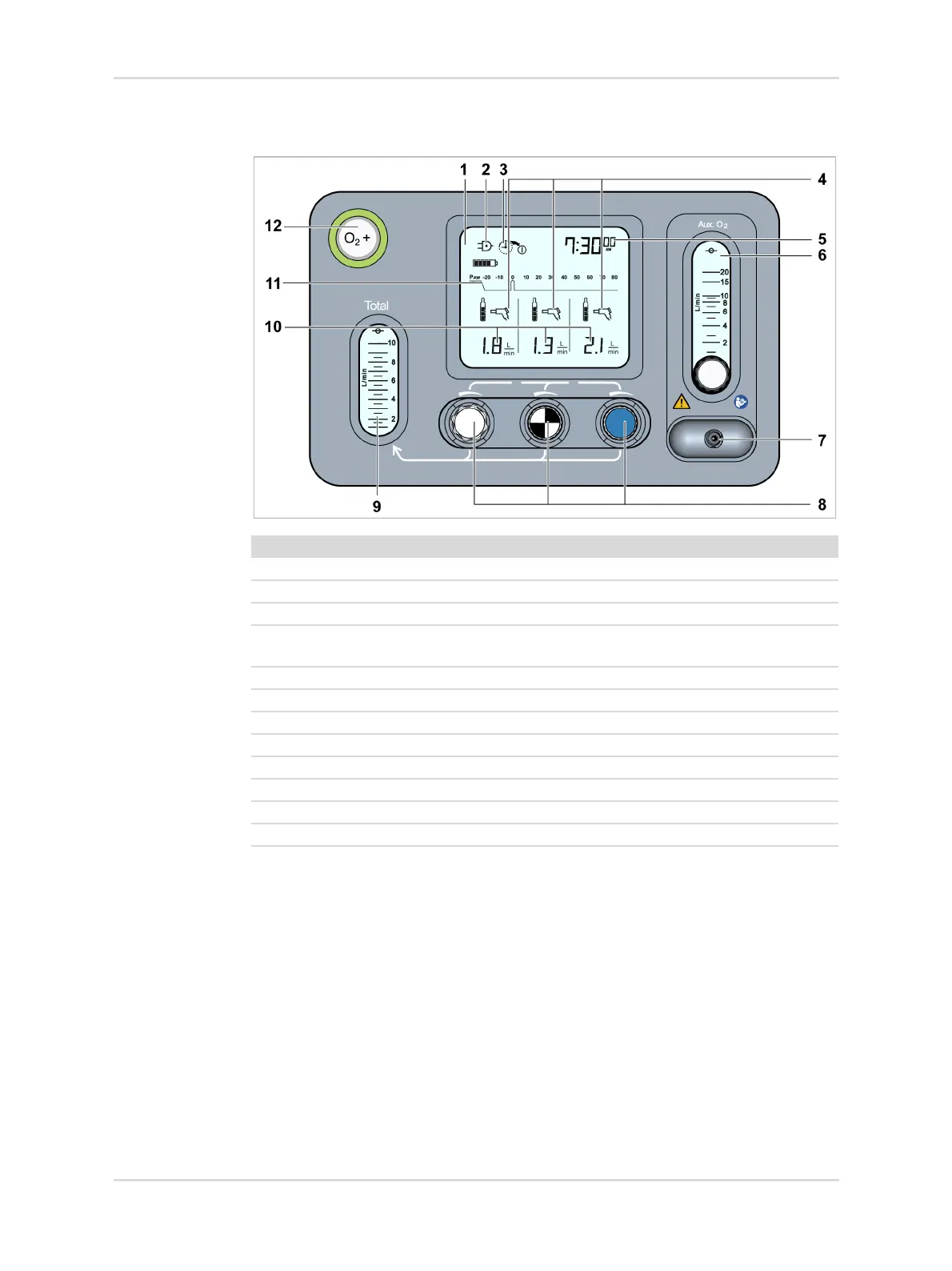

3.1.12.2 Gas mixing unit (mechanically controlled with electronic flow measurement)
The explanation of the symbols can be found on page 330.
36480
No. Designation
1 Status display
2 Symbols for mains power supply and power supply from internal battery
3 Symbol for programmed Auto On
4 Symbols for gas supply (O
2, Air, N2O or O2, Air) from central supply and gas
cylinders
5 Current time or time for Auto On
6O
2 flowmeter (for O2 insufflation Aux. O2)
7 Outlet for O
2 insufflation, e.g., for nasal cannula
8 Flow control valves (O
2, Air, N2O or O2, Air)
9 Total flow tube
10 Display of the set fresh-gas flows
11 Display of airway pressure in the internal breathing system, see page 22
12 O
2+ key (O2 flush)
