36 Instructions for use | Atlan A100 (XL), A300 (XL), A350 (XL) SW 2.1n
Overview

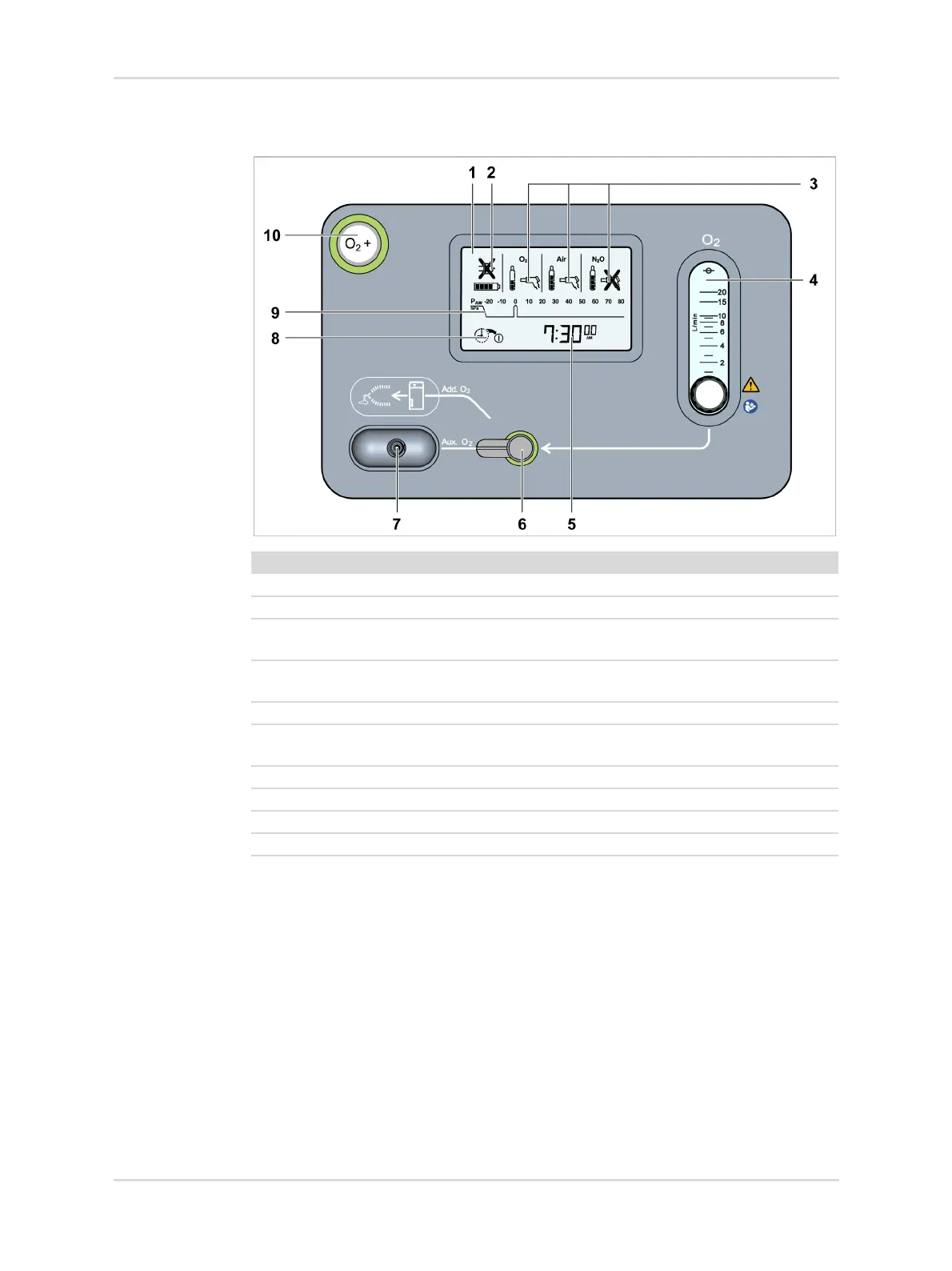

3.1.12.3 Gas mixing unit (electronically controlled)
The explanation of the symbols can be found on page 330.
36479
No. Designation
1 Status display
2 Symbols for mains power supply and power supply from internal battery
3 Symbols for gas supply (O
2, Air, N2O or O2, Air) from central supply and gas
cylinders
4O
2 flowmeter (for O2 insufflation Aux. O2 and emergency O2 delivery
Add. O
2)
5 Current time or time for Auto On
6O
2 switch (for switching between O2 insufflation Aux. O2 and emergency O2
delivery Add. O
2)
7 Outlet for O
2 insufflation, e.g., for nasal cannula
8 Symbol for programmed Auto On
9 Display of airway pressure in the internal breathing system, see page 22
10 O
2+ key (O2 flush)
