Instructions for use | Atlan A100 (XL), A300 (XL), A350 (XL) SW 2.1n 53
Overview

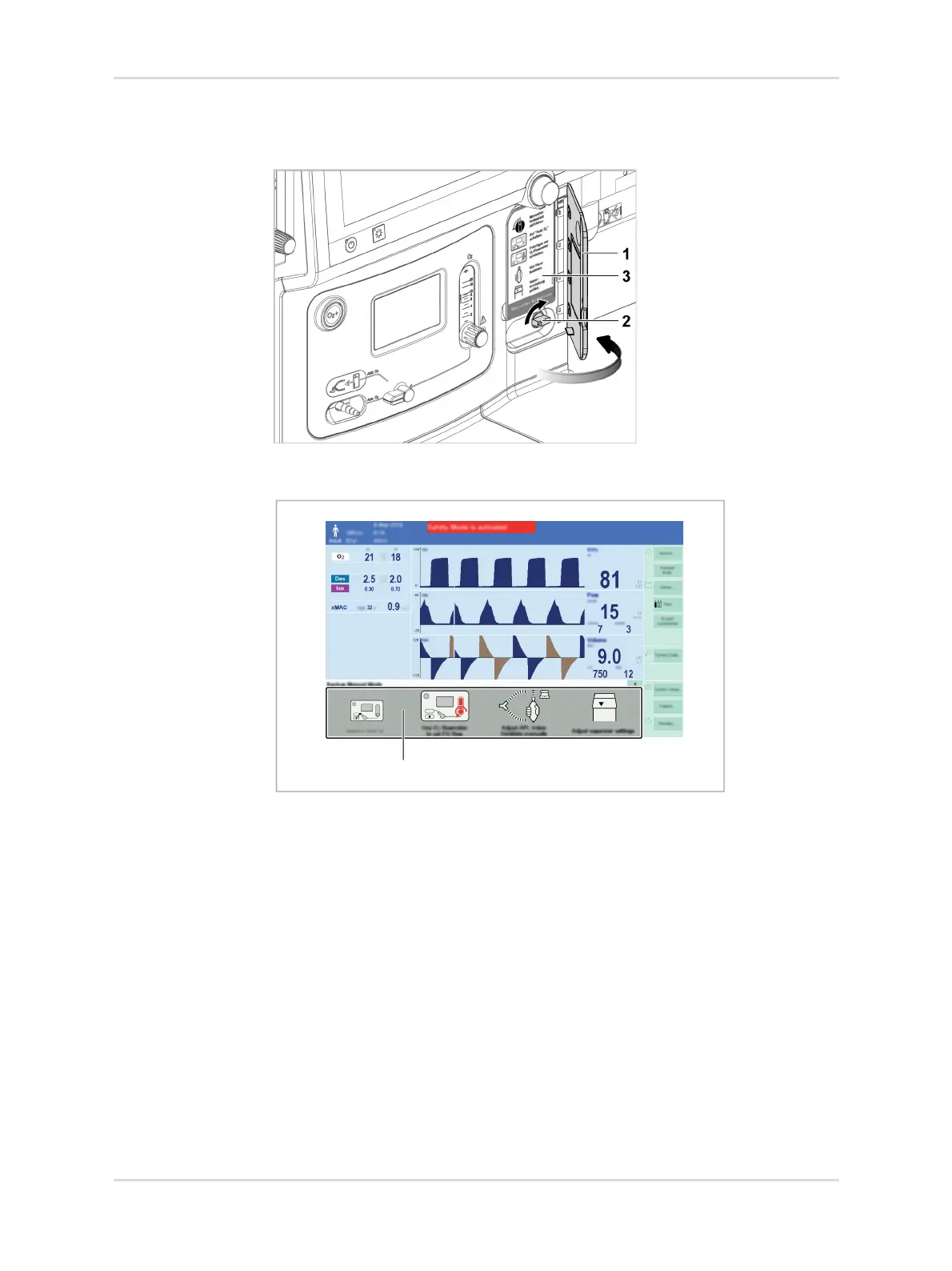

Backup manual mode with an electronically controlled gas mixer
1. Open the flap (1).
2. Activate the backup manual switch (2). Follow the instructions on the product
label (3) or the screen (4).
3. Set the O
2 switch to Add. O2.
4. Open the flow control valve on the emergency O
2 delivery and set an adequate
O
2 flow. The set O2 flow constitutes the total fresh-gas flow.
5. Ventilate the patient manually.
a. During mechanical ventilation or in Man/Spon ventilation mode:
Ventilate manually with the breathing bag.
b. When using the external fresh-gas outlet:
Ventilate manually with the breathing bag on the non-rebreathing system.
6. Check the vaporizer setting.
4067647439
