Dräger CMS Analyzer 39
What's what?

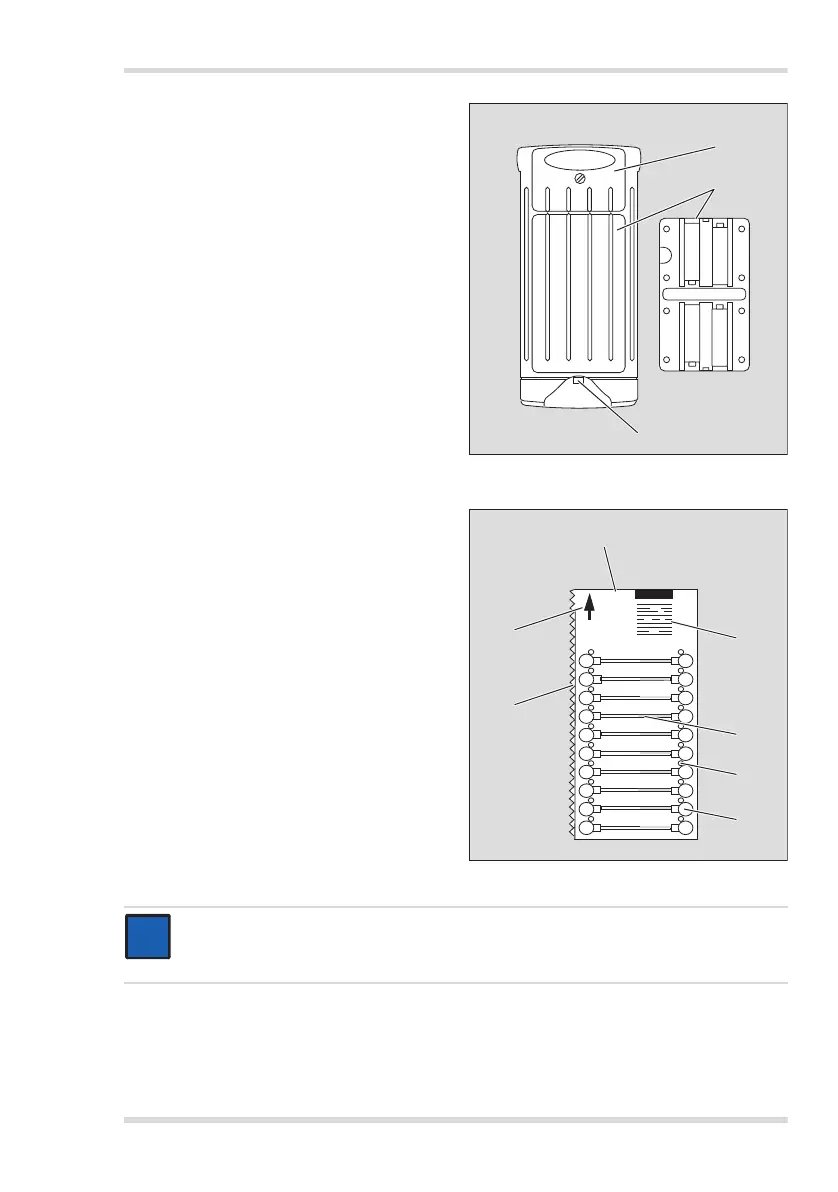

Rear of analyzer
1 Battery compartment cover fitted/
removed
2 Screw for battery compartment cover
3 Compartment for the optional Remote
System module
Chip
1 Gear rail for automatic chip transport in
the analyzer
2 Arrow indicating proper direction of
insertion
3 Name of substance, measuring range,
batch and part number; the expiry date is
printed on the rear
4 Barcode with the following chip data: chip
type, measuring range, measuring time,
required flow
5 Measurement channel: capillary with
reagent
6 Cancellation pins to position the chip at
the next unused channel
7 Sealing cap
NOTICE
The raised cancellation pins indicate which measurement channels are still
available. Measurement channels can only be used once.
00522837.eps
+
–
–
–
–
+
+
+
3
1
2
00622837.eps
1
2
3
4
5
6
7
Messbereich Schadstoff Batch-Nr. Sach-Nr
i
i
