Technical manual | X-am® 3500/8000 31
Operation

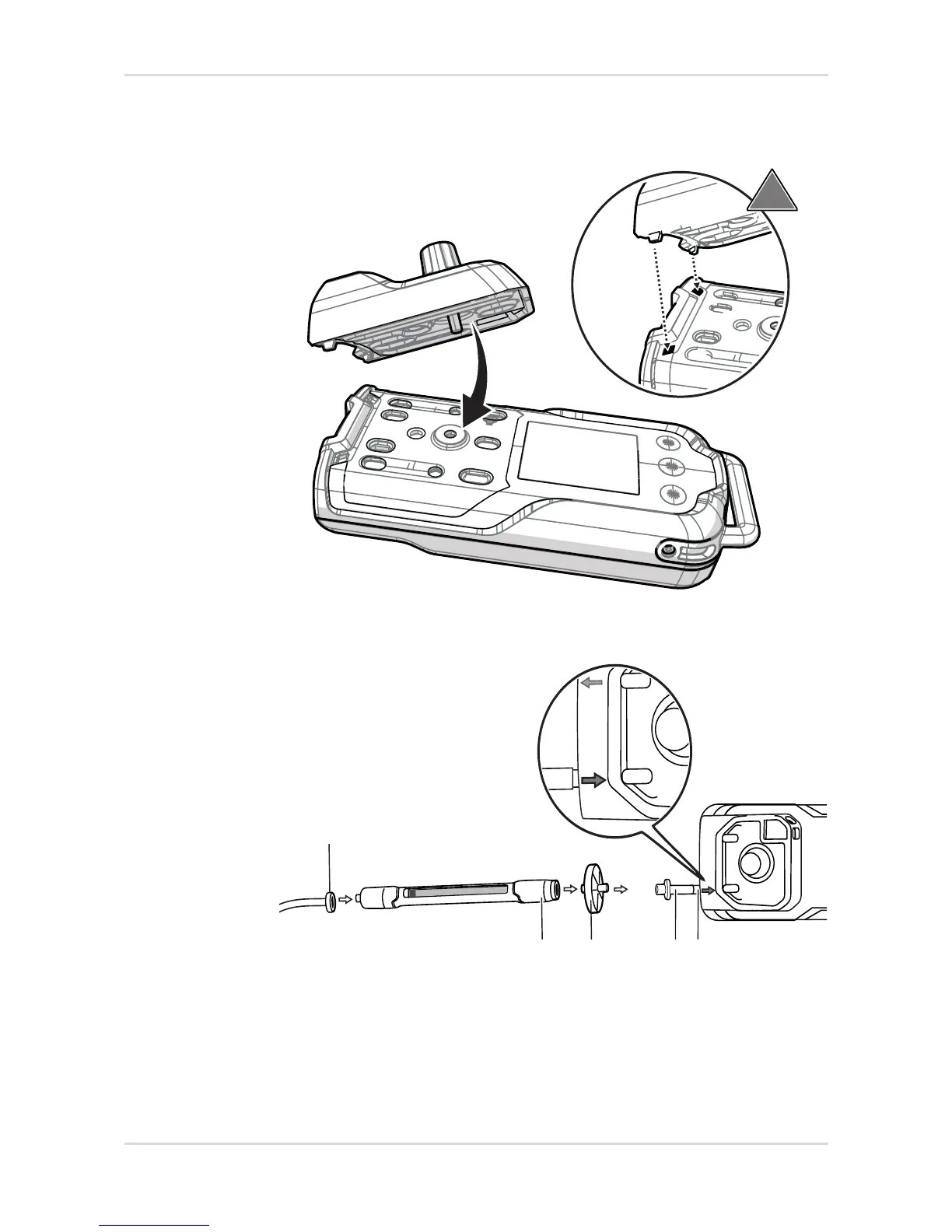

1. Mount the pump adapter to the gas detector. Make sure that both guide pins are
in the correct grooves.
2. Connect the dust and water filter (3) to the short hose piece (4) on the pump
adapter (5).
3. Mount the pre-tube bracket (2) to the dust and water filter (3).
4. Mount the hose or bar probe (1) to the pre-tube bracket (2) (max. hose length:
10 m).
5. As necessary: Use a floating probe.
3496434965
!
1
2
5
3
4
