Technical manual | X-am® 3500/8000 57
Maintenance

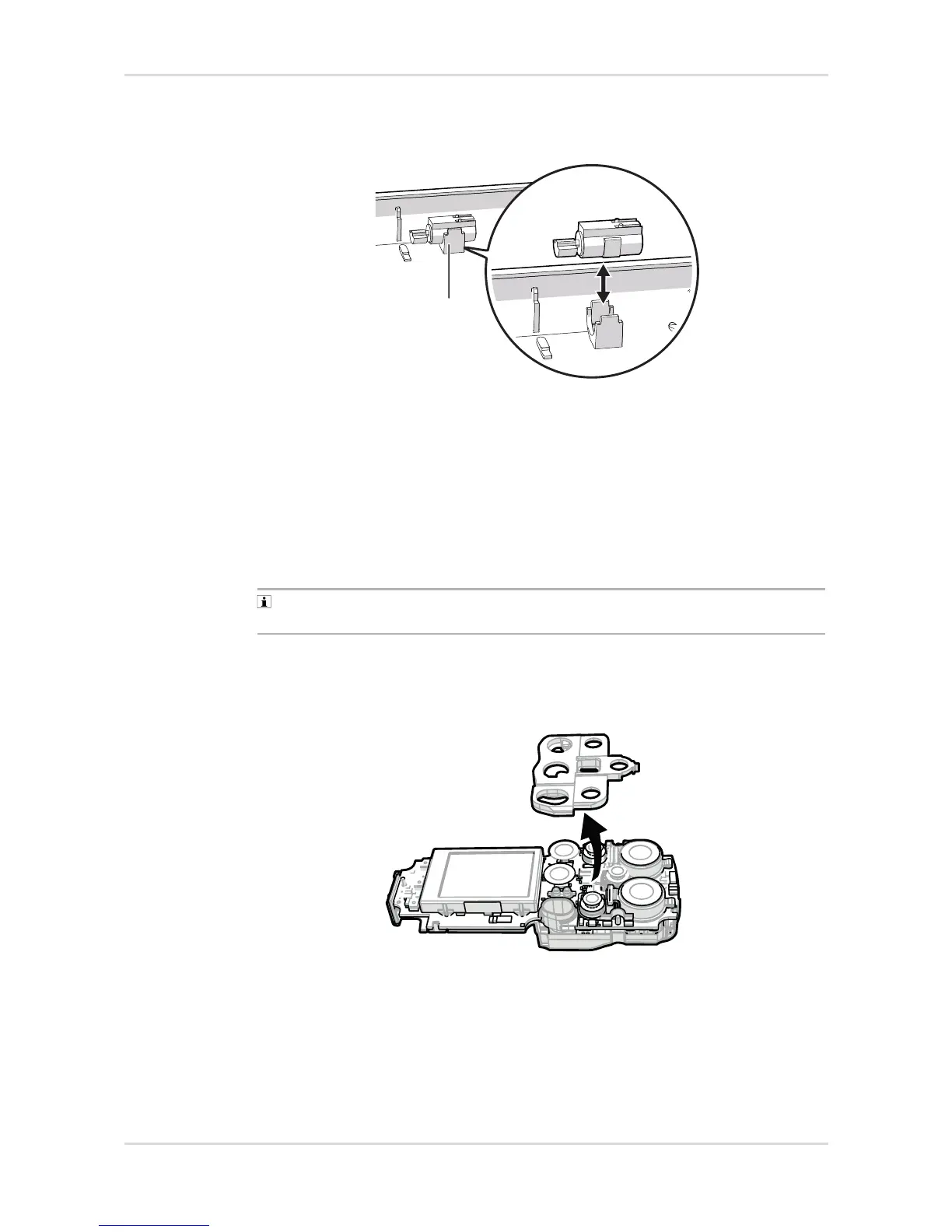

3. Remove the vibration motor (1) from the mount in the upper cradle.
4. Insert the new vibration motor in the upper cradle. Make sure that it is aligned
correctly. The imbalance faces down, and the contacts face the options board.
5. Apply a drop of contact grease (order number 83 24 826) to the contacts on the
vibration motor after exchanging it.
6.9.7 Sensor sealing plate
Requirements:
– The gas detector is open.
Use the correct sensor sealing plate. The sensor sealing plate which needs to be
used depends on the device configuration (with/without pump).
1. Loosen 3 screws (Torx T8) on the options board.
2. Rotate the gas detector and carefully lift it out of the front housing cradle.
3. Remove the sensor sealing plate from the EC sensors.
4. Insert a new sensor sealing plate of the same type (press it into the double tube
area (only with pump)).
36395
1
35003
