Technical manual | X-am® 3500/8000 61
Maintenance
6.10 Labelling field/label for strap
The label indicates things such as the installed sensors and other customer-specific
information on the gas detector.
The label can be applied to the labelling field provided or on the strap buckle.
The labels used by Dräger (e.g. standard label, colour: silver, order number:
83 27 645) fulfil explosion protection requirements.

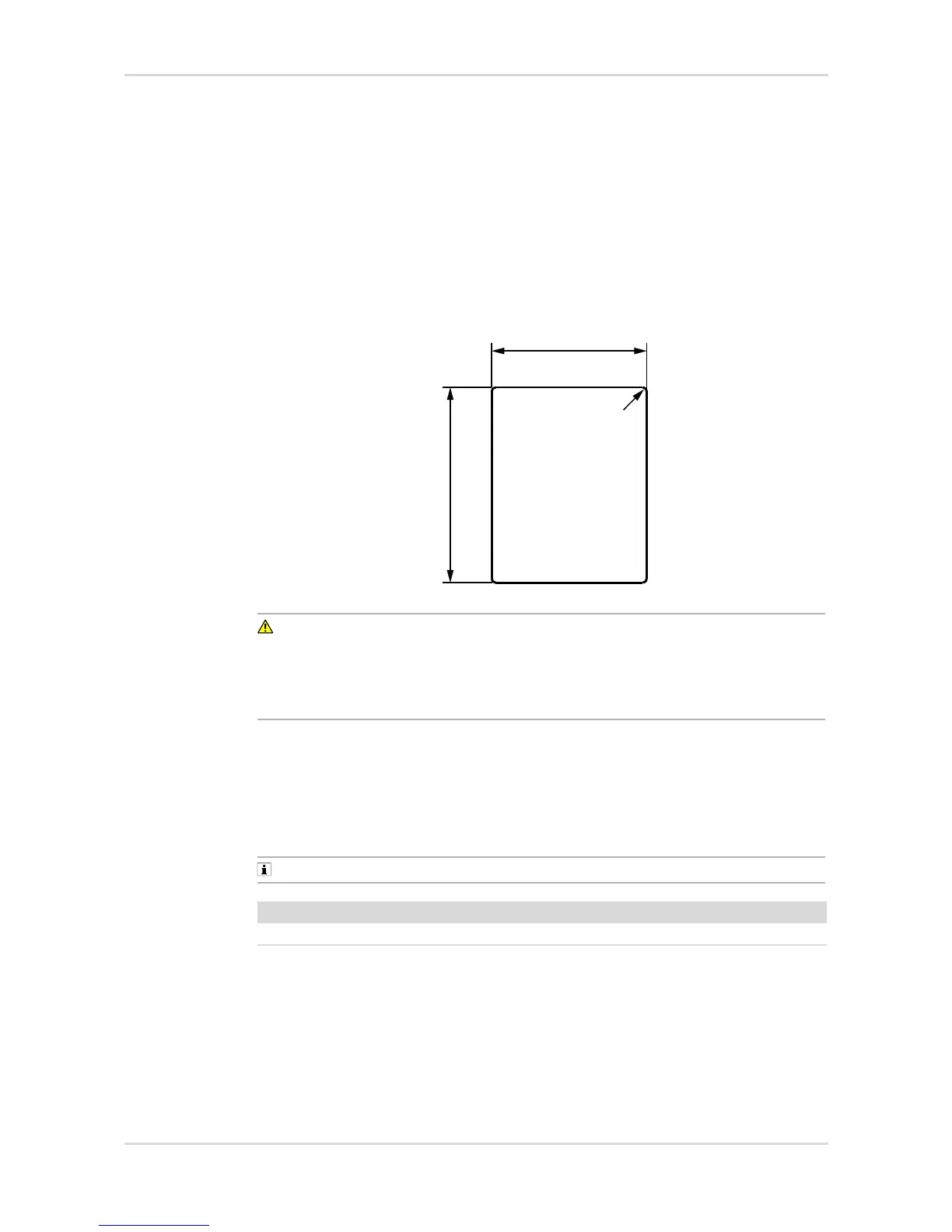

Labelling field dimensions:
WARNING
Loss of explosion protection!
Surfaces/labels may compromise the explosion protection.
► Surfaces/labels larger than 4 cm
2
must fulfil special explosion protection
conditions (e.g. electrical conductivity).
6.11 Mounting the clip
1. Lift the rivet out of the thread on the rear housing cradle with a pointy instrument.
The rivet can be reused.
2. Place the clip on the rear housing cradle and tighten the screw.
If the clip is removed, stick the rivet in the thread for protection.
6.12 Radio-Frequency Identification (RFID)
Radio-Frequency Identification (RFID) uses an electronic marking mounted on a
component or a system to identify devices. Every ID has an electronic transponder
in a disc made of light, robust plastic. The transponder is read-only and has a
35301
38,5 mm ±0,3 mm
48,5 mm ±0,3 mm
R1
Designation and description Order no.
Rivet set (pack of 10) 83 27 696
