Technical manual | X-am® 3500/8000 55
Maintenance

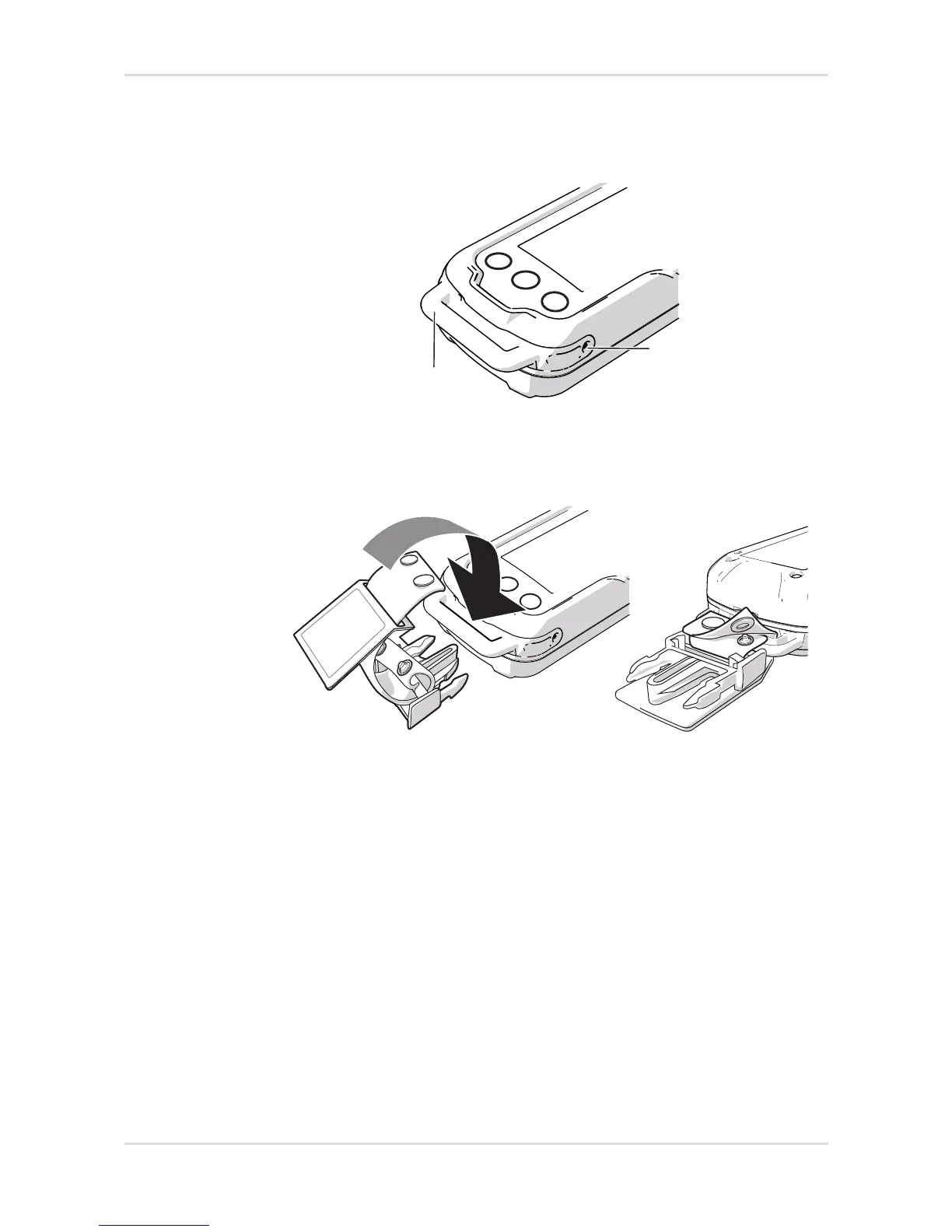

6.9.2 Blind bracket / strap retainer / labelling field/label for strap
1. Remove both screws (1).
2. Pull out the bracket (2) and attach the new bracket or strap retainer.
3. Insert and tighten the screws (10 - 15 Ncm).
4. Apply labelling field if necessary.
6.9.3 Battery
The battery is exchanged together with the rear housing cradle.
Requirements:
– The gas detector is open.
1. Remove the rear cradle of the housing with the battery.
2. Insert a new rear housing cradle with battery.
3. Screw on the rear housing cradle with 6 screws.
4. Switch on the gas detector.
The wizard for setting the date and time appears automatically.
5. Set date and time.
3528835287
1
2
