46 Technical manual | X-am® 3500/8000
Maintenance

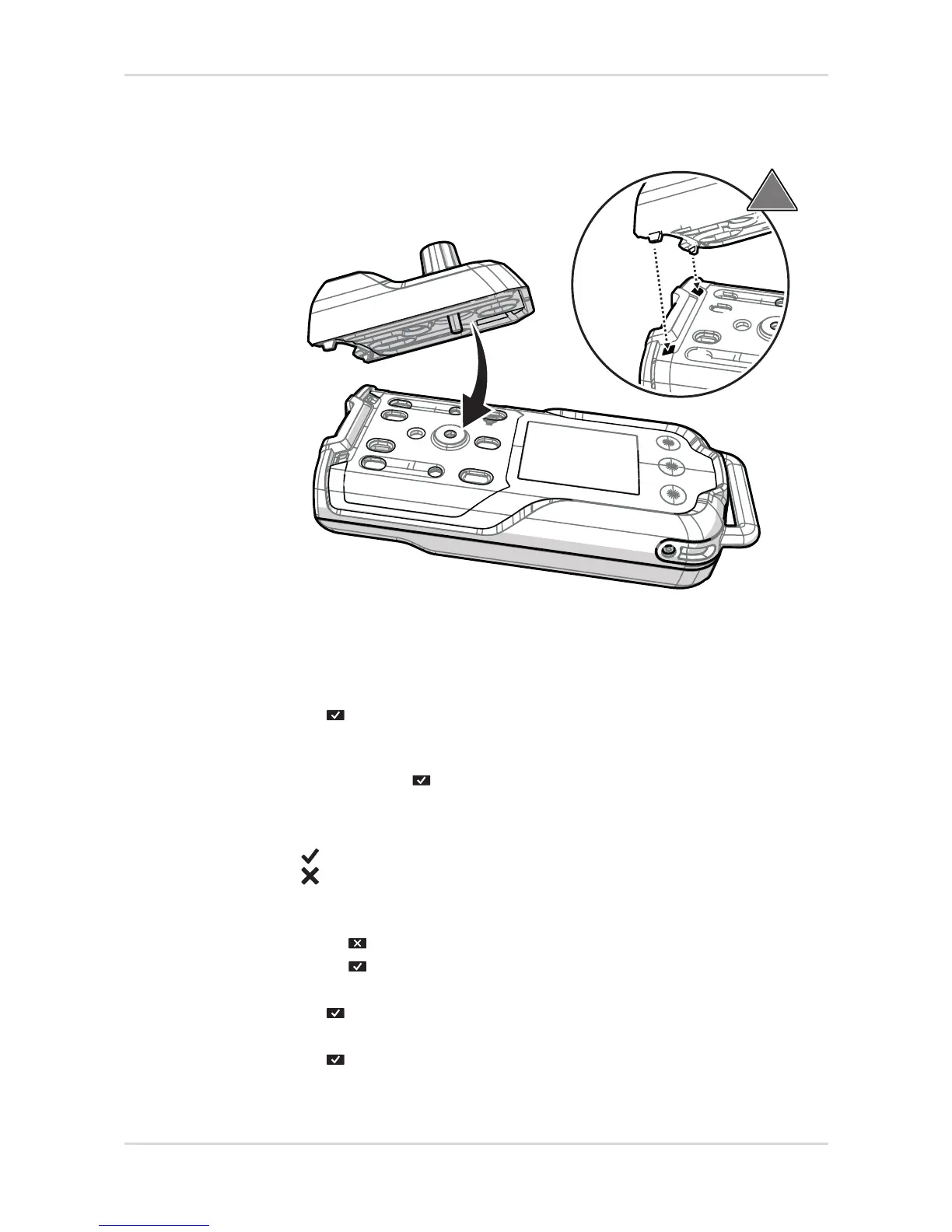

2. Mount the calibration adapter to the gas detector. Make sure that both guide
pins are in the correct grooves.
3. Connect the test gas cylinder to the calibration adapter.
4. If needed, connect a second hose (max. length: 2 m) to the second outlet on the
calibration adapter to direct the test gas to an exhaust or outside.
5. Open the valves on the test gas cylinder.
6. Select to start the multi-gas calibration.
All measuring channels which are included in the multi-gas calibration flash,
and all others are greyed out.
7. If necessary, press to override the automatic stability check. In this case, a
calibration happens immediately.
The new measured value is displayed for confirmation.
The result is displayed as follows:
Multi-gas calibration successful.
multi-gas calibration failed.
8. The multi-gas calibration is complete when all measuring channels included in
the calibration successfully passed or failed the calibration.
► Select and then confirm the dialog to discard the result.
► Select to confirm the result.
9. Close the valves on the test gas cylinder and remove the calibration adapter.
10.Select to complete the calibration.
The measured values are displayed.
11. Select to return to the menu.
