Technical manual | X-am® 3500/8000 51
Maintenance
e. WARNING
X-am 8000: Risk of incorrect measured values!
In pump mode and after calibration, incorrect measured values may be
returned if the following sensors are used on the sensor positions EC2 and
EC3.
► The DrägerSensors XXS O3, XXS Cl2 and XXS COCl2 may only be used
in sensor position EC1.
Carefully insert the new sensor evenly and not at an angle. Make sure that
the pins are inserted in the correct positions.
f. Place the sealing on the EC sensors.

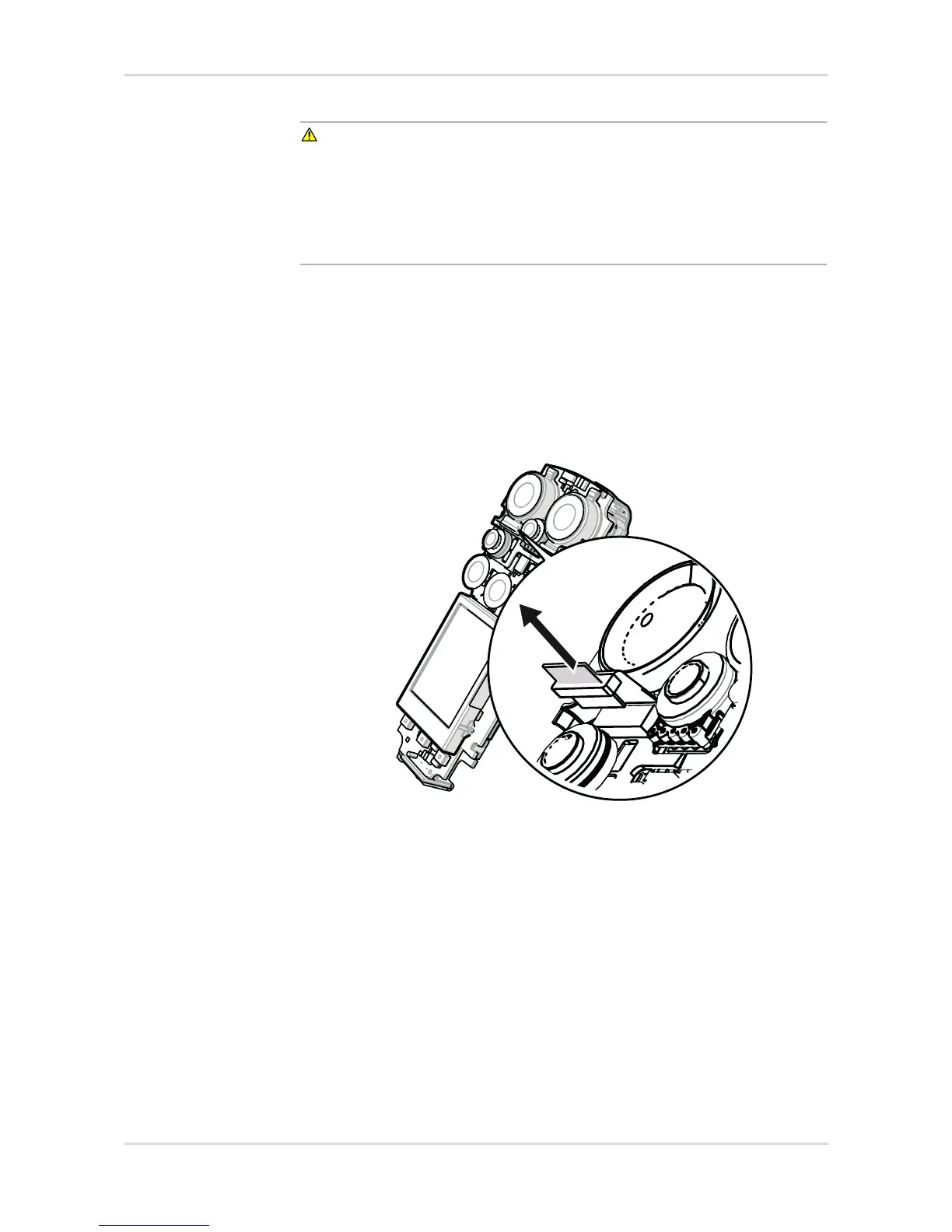

8. Exchanging PID, CatEx and IR sensors:
a. Open the sensor damper.
b. Carefully remove the flexstrip from the options board and pull out the sensor
(manually or with a removal tool (IR, PID) or with a dull instrument, e.g.
Rounded side of a pair of tweezers (CatEx)).
c. Have the sensor type and code (marked on the new sensor) as well as the
sensor position at hand for the new sensor inauguration.
d. Carefully insert the new sensor.
e. Carefully plug the flexstrip into the bushing on the options board.
f. Close the sensor damper and make sure that it is positioned correctly.
9. Place the front cradle of the housing on the options board with the cover and
rotate (do not angle, seals must seal properly when closed).
10.Screw on the options board with 3 screws (60 ±5 Ncm).
11. Reattach the rear and front housing cradles and makes sure that the seals and
sensor dampers are in the correct positions.
12.Screw on the rear housing cradle with 6 screws (60 ±5 Ncm).
13.Follow the instructions in the sensor exchange wizard in the CC-Vision PC
software.
35005
