Maintenance

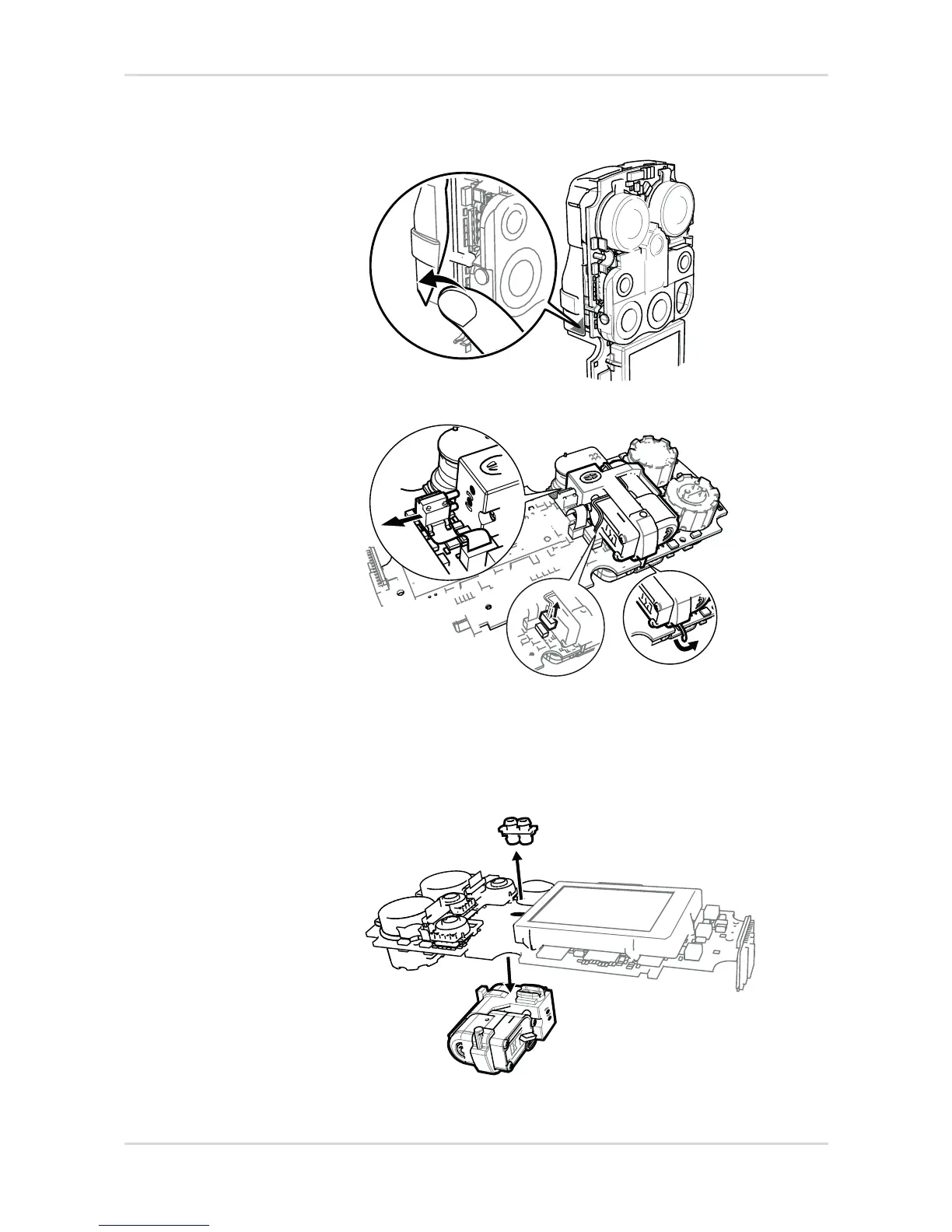

4. Remove the 3 clips from the options board cover and remove the options board.
5. Carefully remove the flexstrip with the differential pressure sensor (1) from the
pump block.
6. Carefully remove the power connection plug (2) from the options board.
7. Remove the pump block holder (3) from the options board.
8. Pull the pump block off of the options board and pull off the double pipe.
353023530435303
3
1
2
