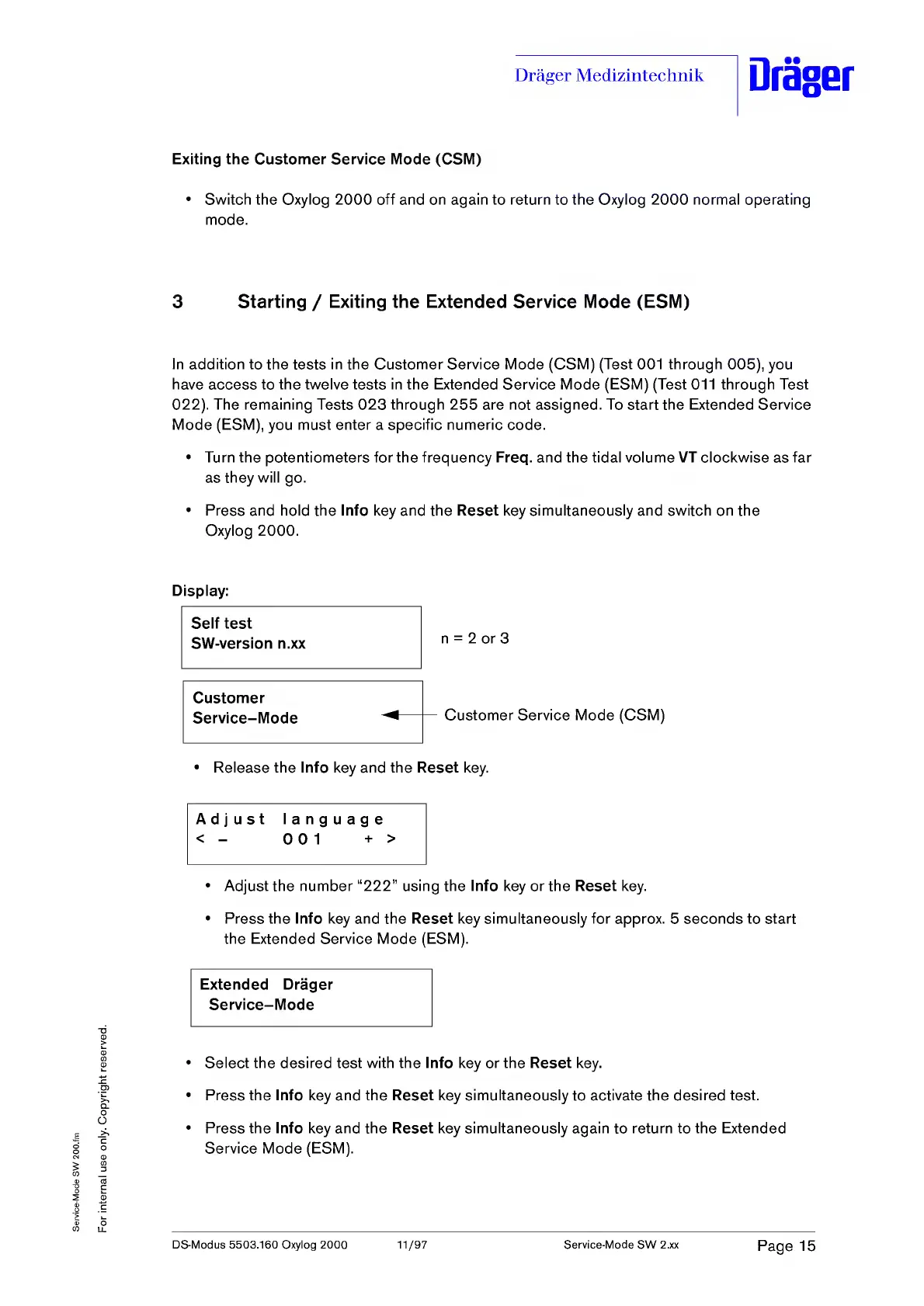

Exiting the Customer Service Mode (CSM)
• Switch the Oxylog 2000 off and on again to return to the Oxylog 2000 normal operating
mode.
3 Starting / Exiting the Extended Service Mode (ESM)
In addition to the tests in the Customer Service Mode (CSM) (Test 001 through 005), you
have access to the twelve tests in the Extended Service Mode (ESM) (Test 011 through Test
022). The remaining Tests 023 through 255 are not assigned. To start the Extended Service
Mode (ESM), you must enter a specific numeric code.
• Turn the potentiometers for the frequency Freq. and the tidal volume VT clockwise as far
as they will go.
• Press and hold the Info key and the Reset key simultaneously and switch on the
Oxylog 2000.
Display:
Self test
SW-version n.xx
Customer
Service-Mode
n = 2 or 3
Customer Service Mode (CSM)
• Release the Info key and the Reset key.
Adjust language
< - 001 + >
• Adjust the number “222" using the Info key or the Reset key.
• Press the Info key and the Reset key simultaneously for approx. 5 seconds to start
the Extended Service Mode (ESM).
Extended Drager
Service-Mode
• Select the desired test with the Info key or the Reset key.
• Press the Info key and the Reset key simultaneously to activate the desired test.
• Press the Info key and the Reset key simultaneously again to return to the Extended
Service Mode (ESM).
DS-Modus 5503.160 Oxylog 2000 11/97 Service-Mode SW 2.xx
Page 15
