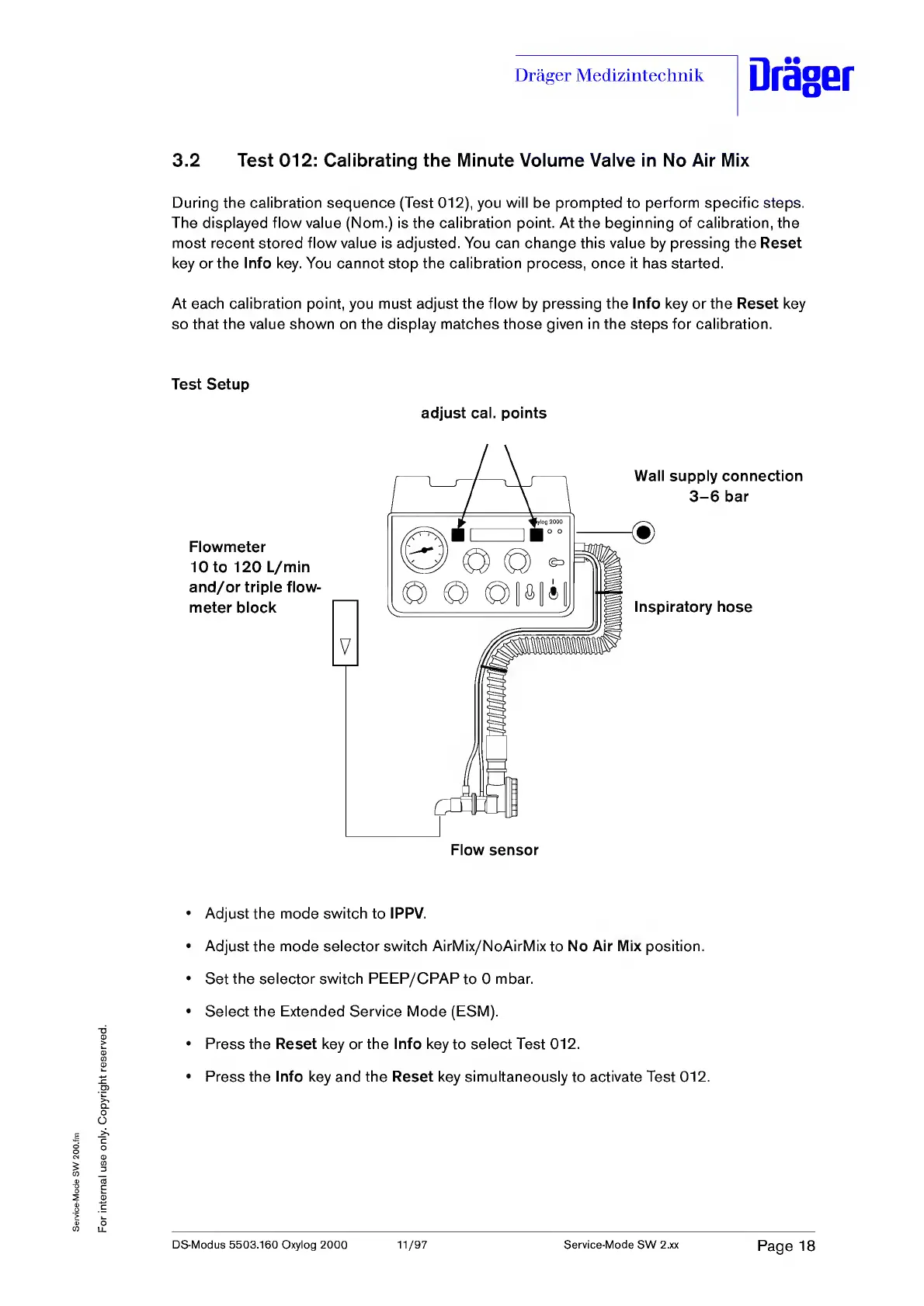

3.2 Test 012: Calibrating the Minute Volume Valve in No Air Mix
During the calibration sequence (Test 012), you will be prompted to perform specific steps.
The displayed flow value (Norn.) is the calibration point. At the beginning of calibration, the
most recent stored flow value is adjusted. You can change this value by pressing the Reset
key or the Info key. You cannot stop the calibration process, once it has started.
At each calibration point, you must adjust the flow by pressing the Info key or the Reset key
so that the value shown on the display matches those given in the steps for calibration.
Test Setup
adjust cal. points
• Adjust the mode switch to IPPV.
• Adjust the mode selector switch AirMix/NoAirMix to No Air Mix position.
• Set the selector switch PEEP/CPAP to 0 mbar.
• Select the Extended Service Mode (ESM).
• Press the Reset key or the Info key to select Test 012.
• Press the Info key and the Reset key simultaneously to activate Test 012.
