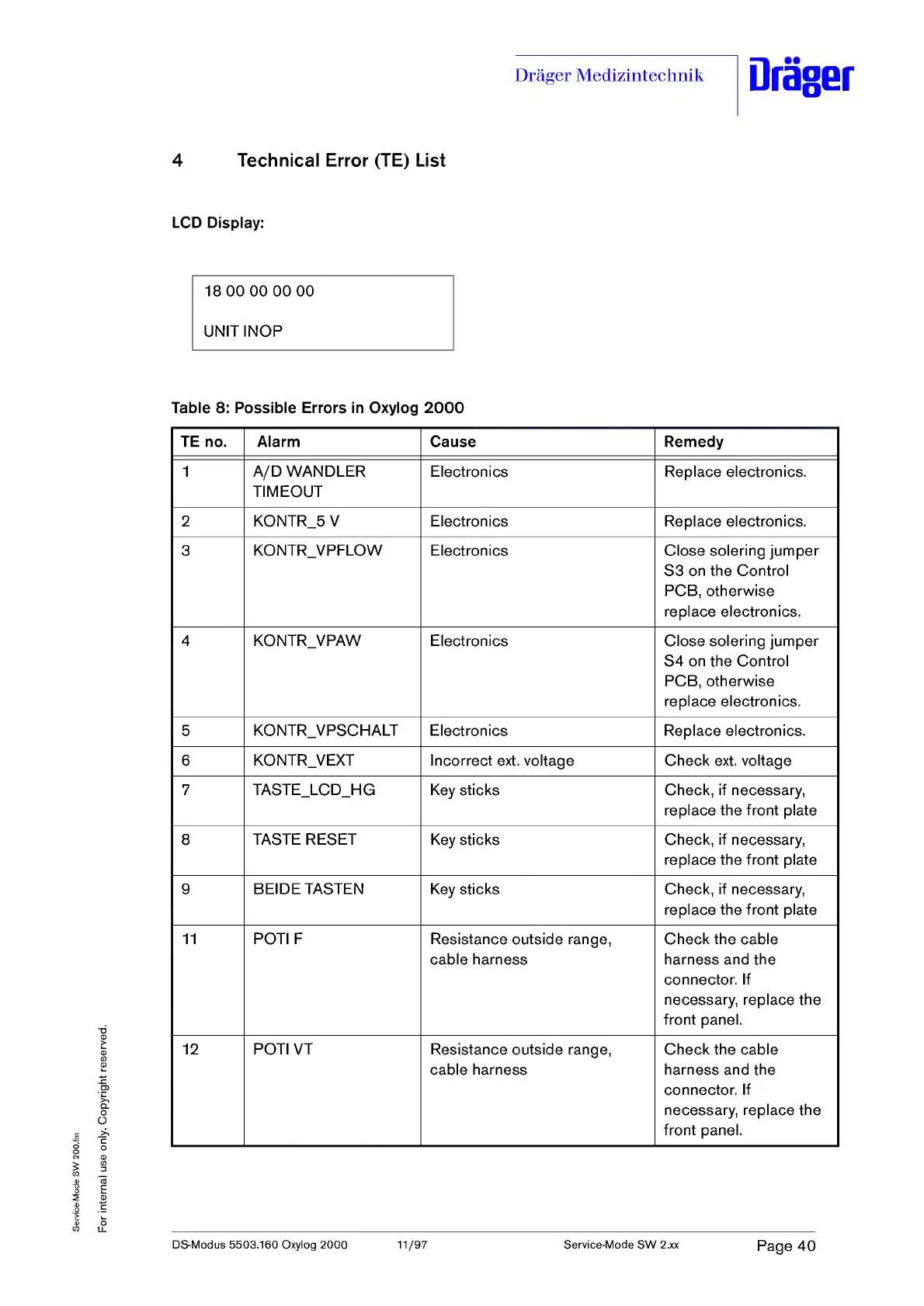

4 Technical Error (TE) List
LCD Display:
18 00 00 00 00
UNIT INOP
Table 8: Possible Errors in Oxylog 2000
TE no.
Alarm
Cause
Remedy
1 A/D WANDLER
TIMEOUT
Electronics
Replace electronics.
2
KONTR_5 V
Electronics
Replace electronics.
3 KONTR_VPFLOW Electronics Close solering jumper
S3 on the Control
PCB, otherwise
replace electronics.
4 KONTR_VPAW Electronics Close solering jumper
S4 on the Control
PCB, otherwise
replace electronics.
5 KONTR_VPSCHALT
Electronics Replace electronics.
6 KONTR_VEXT Incorrect ext. voltage Check ext. voltage
7
TASTE_LC D_H G
Key sticks Check, if necessary,
replace the front plate
8 TASTE RESET Key sticks Check, if necessary,
replace the front plate
9
BEIDE TASTEN Key sticks Check, if necessary,
replace the front plate
11 POTI F
Resistance outside range,
cable harness
Check the cable
harness and the
connector. If
necessary, replace the
front panel.
12 POTI VT
Resistance outside range,
cable harness
Check the cable
harness and the
connector. If
necessary, replace the
front panel.
DS-Modus 5503.160 Oxylog 2000 11/97 Service-Mode SW 2.xx
Page 40
