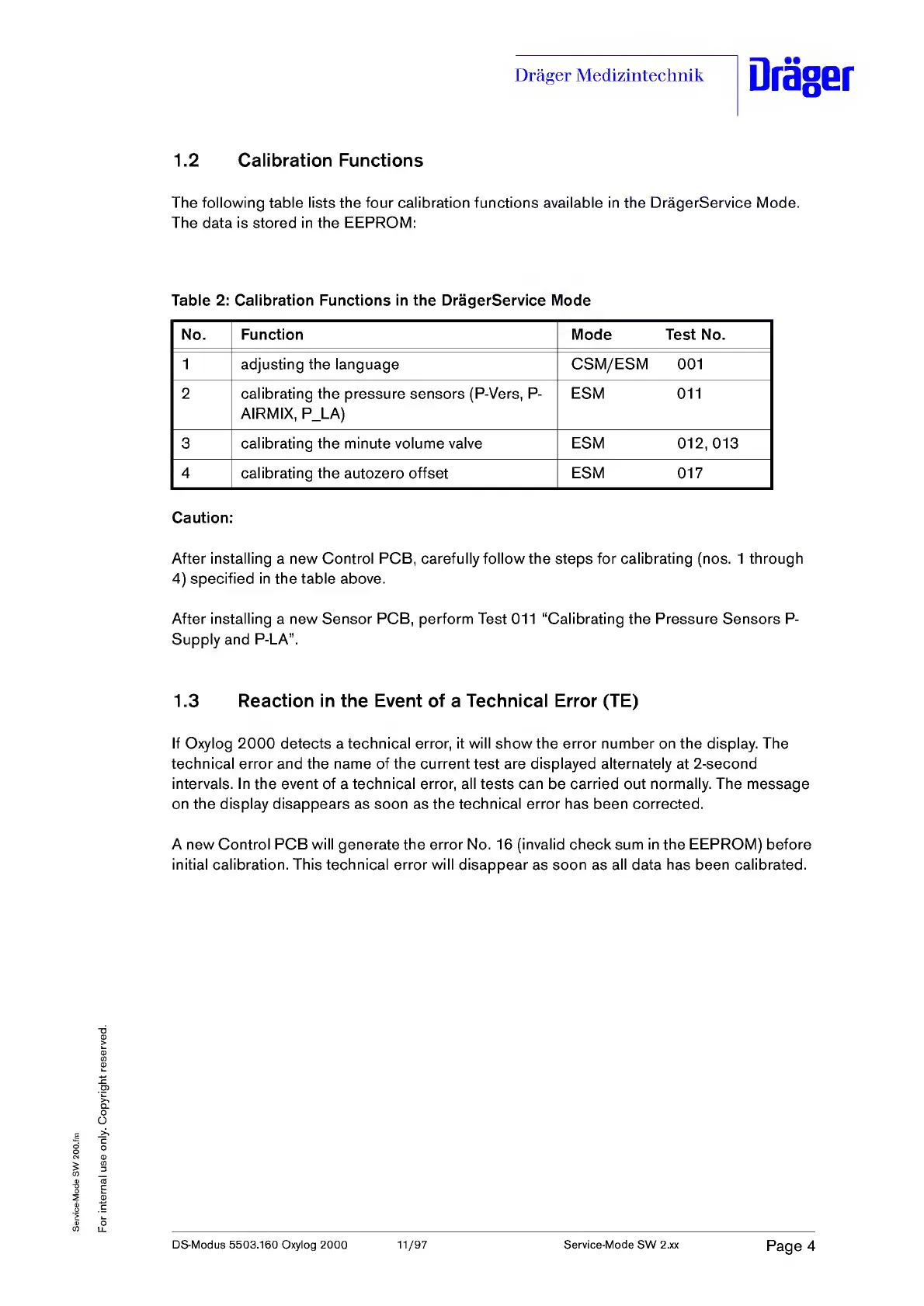

1.2 Calibration Functions
The following table lists the four calibration functions available in the DragerService Mode.
The data is stored in the EEPROM:
Table 2: Calibration Functions in the DragerService Mode
No.
Function
Mode
Test No.
1 adjusting the language CSM/ESM 001
2 calibrating the pressure sensors (P-Vers, P-
AIRMIX, P_LA)
ESM 011
3 calibrating the minute volume valve ESM 012, 013
4 calibrating the autozero offset ESM 017
Caution:
After installing a new Control PCB, carefully follow the steps for calibrating (nos. 1 through
4) specified in the table above.
After installing a new Sensor PCB, perform Test Oil “Calibrating the Pressure Sensors P-
Supply and P-LA".
1.3 Reaction in the Event of a Technical Error (TE)
If Oxylog 2000 detects a technical error, it will show the error number on the display. The
technical error and the name of the current test are displayed alternately at 2-second
intervals. In the event of a technical error, all tests can be carried out normally. The message
on the display disappears as soon as the technical error has been corrected.
A new Control PCB will generate the error No. 16 (invalid check sum in the EEPROM) before
initial calibration. This technical error will disappear as soon as all data has been calibrated.
DS-Modus 5503.160 Oxylog 2000 11/97 Service-Mode SW 2.xx
Page 4
