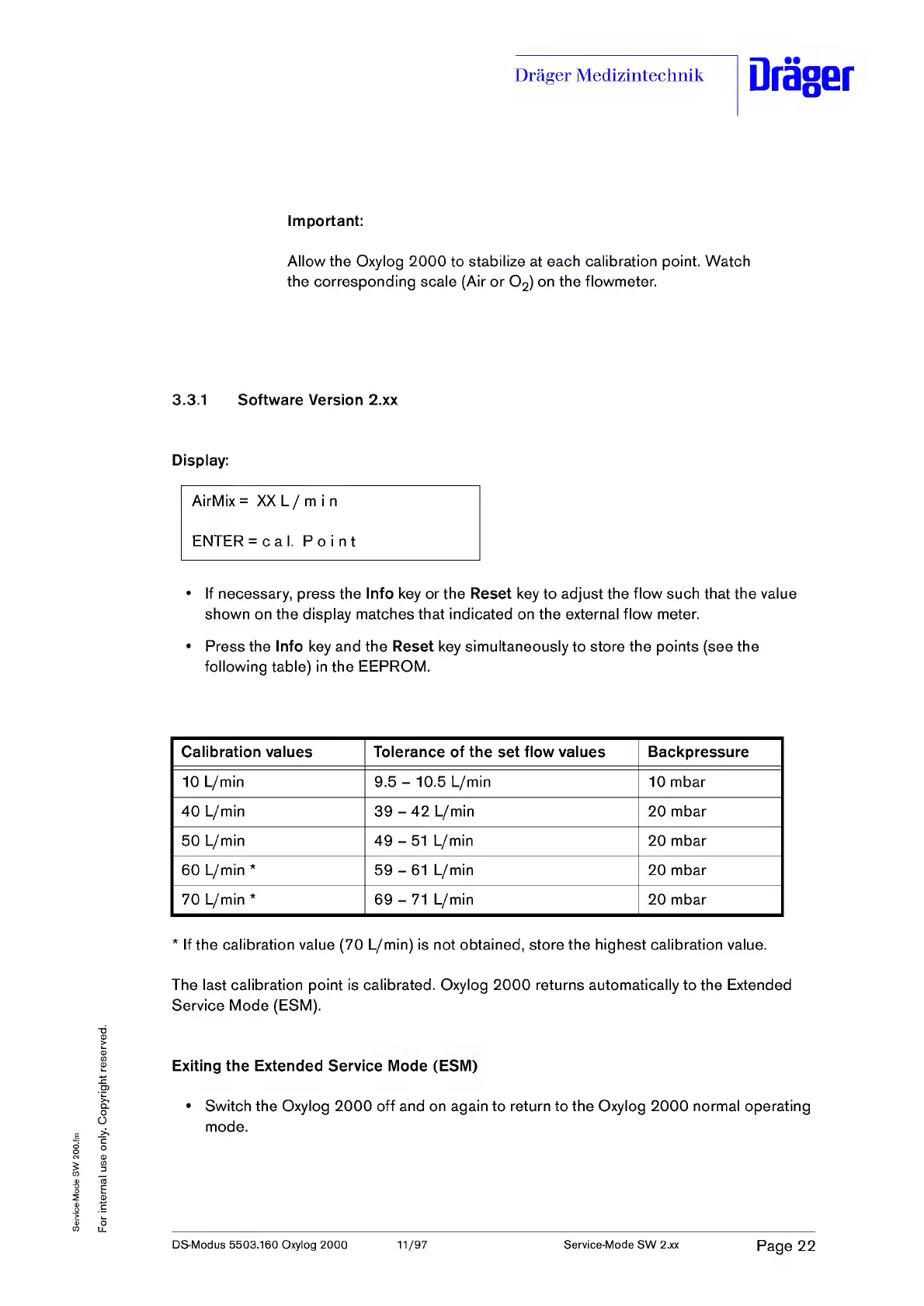

Important:
Allow the Oxylog 2000 to stabilize at each calibration point. Watch
the corresponding scale (Air or 0 2 ) on the flowmeter.
3.3.1 Software Version 2.xx
Display:
AirMix = XX L / m i n
ENTER = c a I. Point
• If necessary, press the Info key or the Reset key to adjust the flow such that the value
shown on the display matches that indicated on the external flow meter.
• Press the Info key and the Reset key simultaneously to store the points (see the
following table) in the EEPROM.
Calibration values
Tolerance of the set flow values Backpressure
10 L/min 9.5 - 10.5 L/min 10 mbar
40 L/min 39 - 42 L/min 20 mbar
50 L/min 49 - 51 L/min 20 mbar
60 L/min * 59 - 61 L/min 20 mbar
70 L/min * 69 - 71 L/min 20 mbar
* If the calibration value (70 L/min) is not obtained, store the highest calibration value.
The last calibration point is calibrated. Oxylog 2000 returns automatically to the Extended
Service Mode (ESM).
Exiting the Extended Service Mode (ESM)
• Switch the Oxylog 2000 off and on again to return to the Oxylog 2000 normal operating
mode.
DS-Modus 5503.160 Oxylog 2000 11/97 Service-Mode SW 2.xx
Page 22
