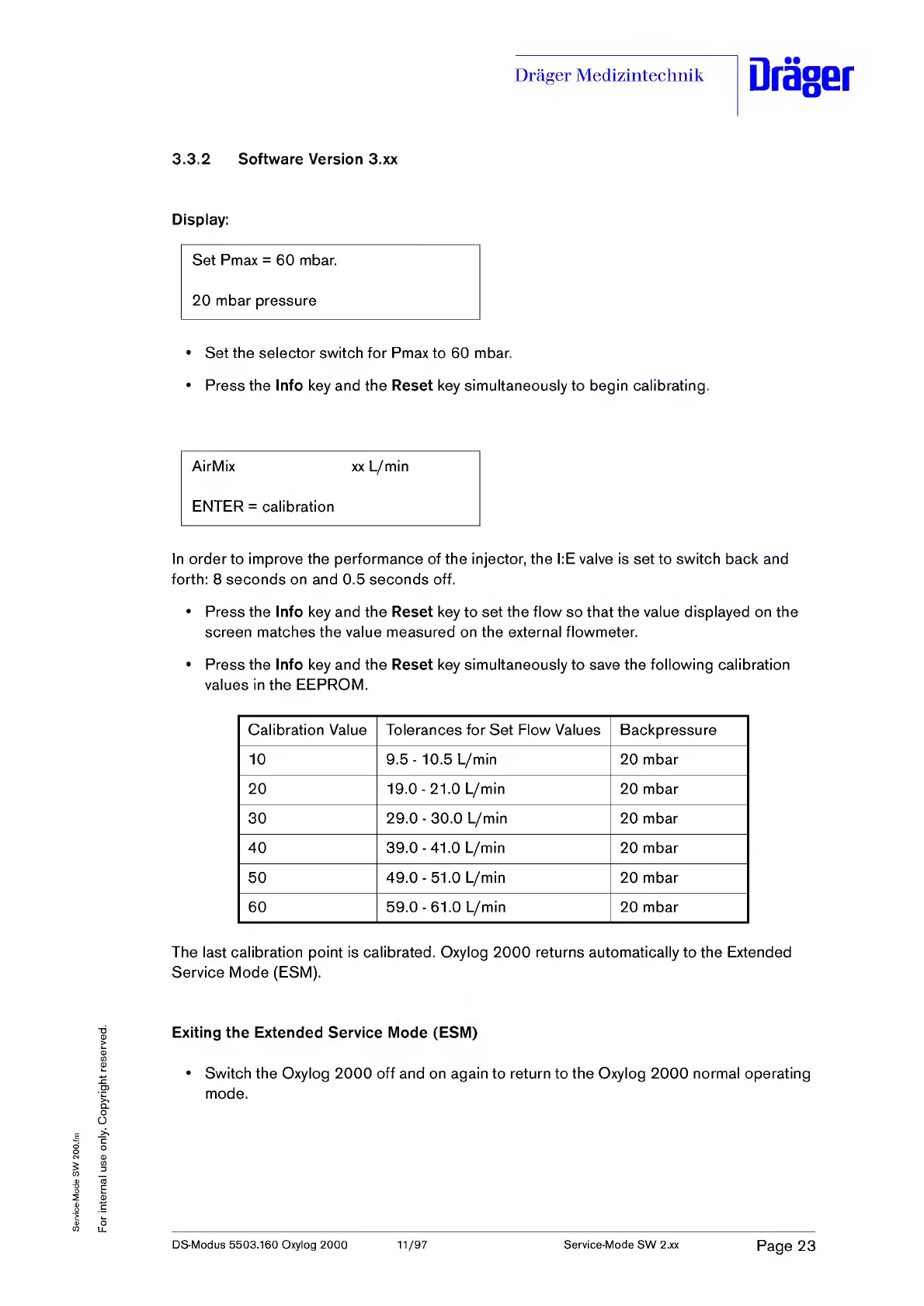

3.3.2 Software Version 3.xx
Display:
Set Pmax = 60 mbar.
20 mbar pressure
• Set the selector switch for Pmax to 60 mbar.
• Press the Info key and the Reset key simultaneously to begin calibrating.
AirMix xx L/min
ENTER = calibration
In order to improve the performance of the injector, the l:E valve is set to switch back and
forth: 8 seconds on and 0.5 seconds off.
• Press the Info key and the Reset key to set the flow so that the value displayed on the
screen matches the value measured on the external flowmeter.
• Press the Info key and the Reset key simultaneously to save the following calibration
values in the EEPROM.
Calibration Value
Tolerances for Set Flow Values
Backpressure
10 9.5- 10.5 L/min 20 mbar
20 19.0-21.0 L/min 20 mbar
30 29.0-30.0 L/min 20 mbar
40 39.0-41.0 L/min 20 mbar
50 49.0-51.0 L/min 20 mbar
60 59.0-61.0 L/min 20 mbar
The last calibration point is calibrated. Oxylog 2000 returns automatically to the Extended
Service Mode (ESM).
Exiting the Extended Service Mode (ESM)
• Switch the Oxylog 2000 off and on again to return to the Oxylog 2000 normal operating
mode.
DS-Modus 5503.160 Oxylog 2000 11/97 Service-Mode SW 2.xx
Page 23
