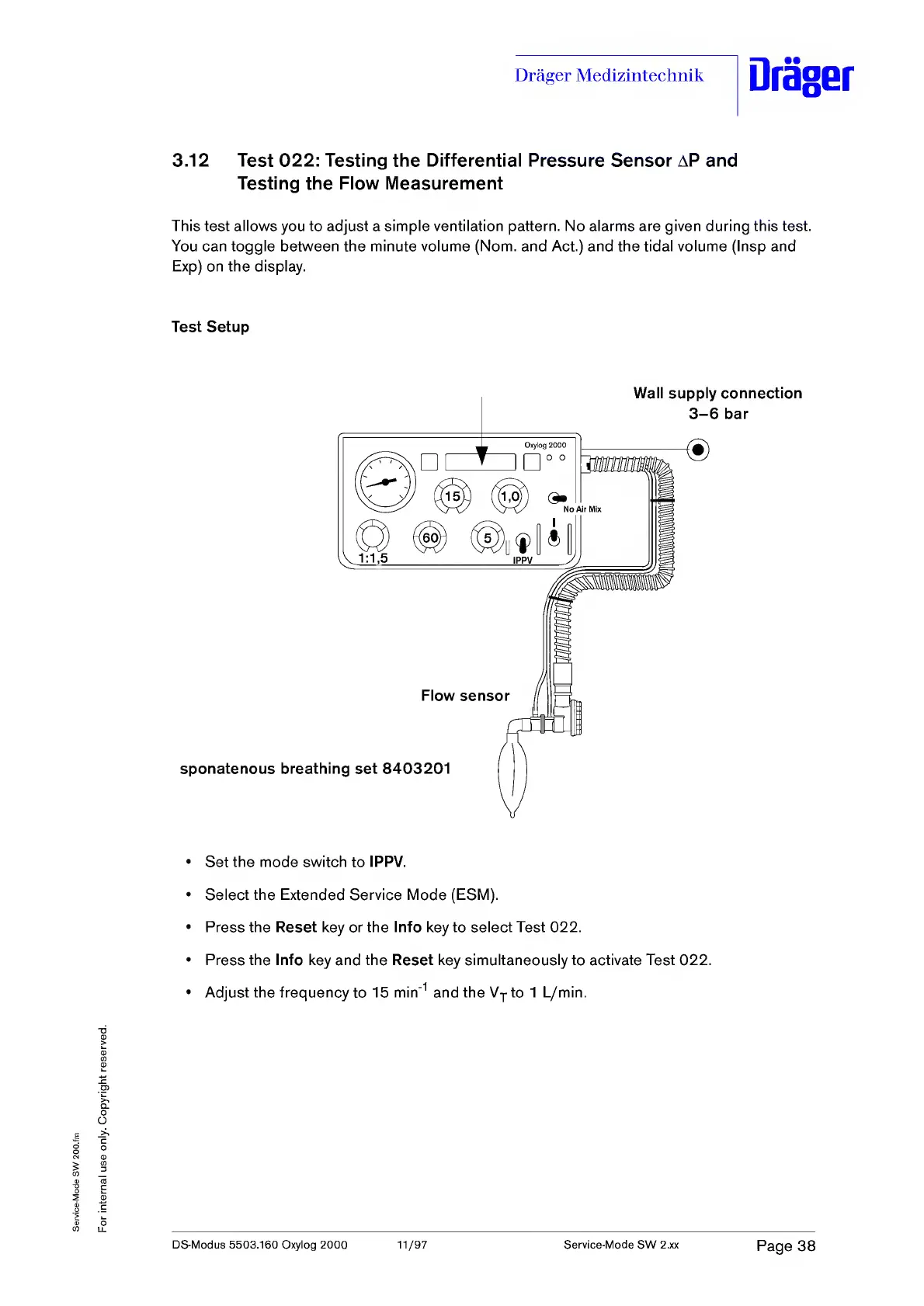

3.12 Test 022: Testing the Differential Pressure Sensor AP and
Testing the Flow Measurement
This test allows you to adjust a simple ventilation pattern. No alarms are given during this test.
You can toggle between the minute volume (Norn, and Act.) and the tidal volume (Insp and
Exp) on the display.
Test Setup
• Set the mode switch to IPPV.
• Select the Extended Service Mode (ESM).
• Press the Reset key or the Info key to select Test 022.
• Press the Info key and the Reset key simultaneously to activate Test 022.
• Adjust the frequency to 15 min' 1 and the V T to 1 L/min.
DS-Modus 5503.160 Oxylog 2000 11/97 Service-Mode SW 2.xx
Page 38
