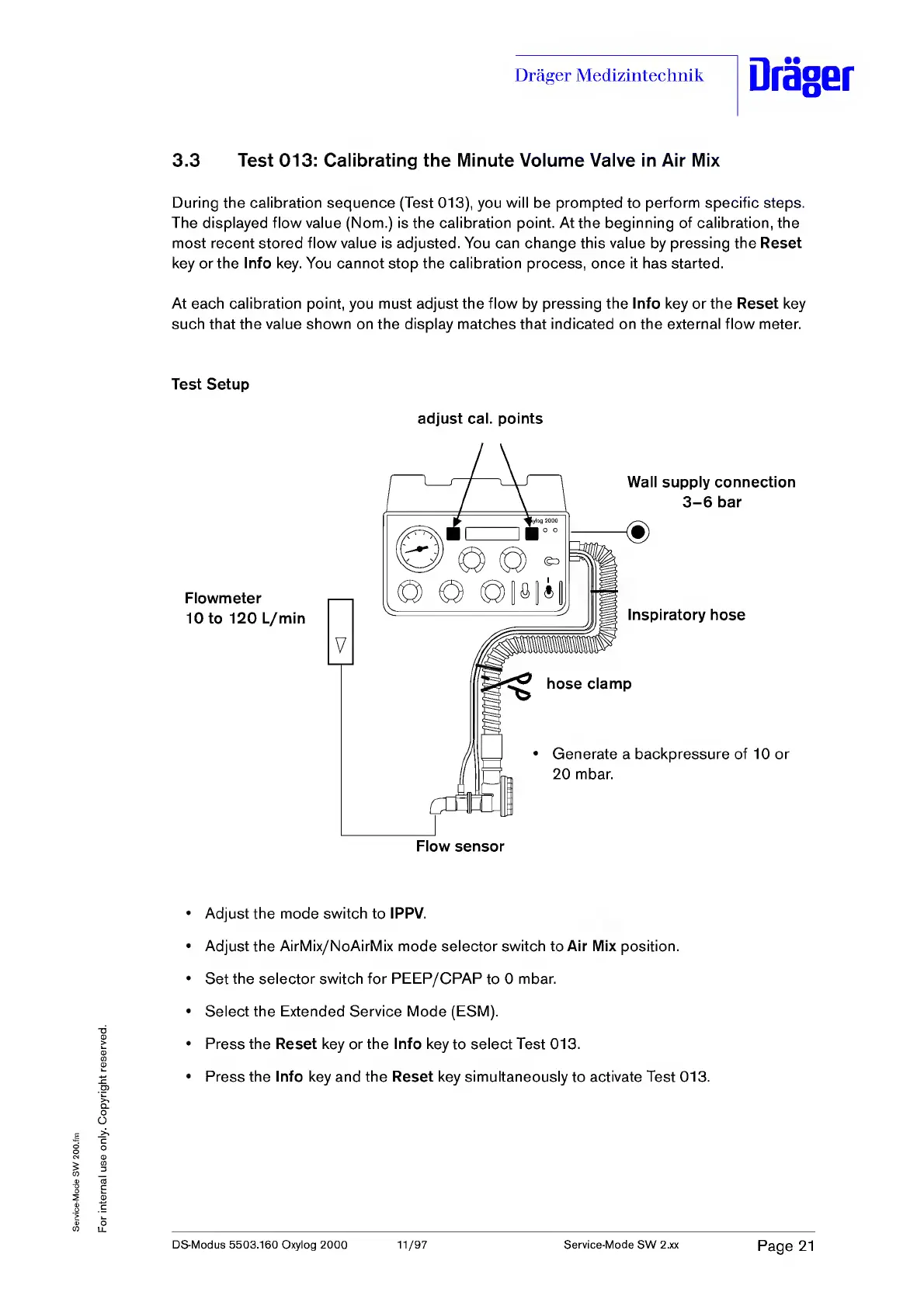

3.3 Test 013: Calibrating the Minute Volume Valve in Air Mix
During the calibration sequence (Test 013), you will be prompted to perform specific steps.
The displayed flow value (Norn.) is the calibration point. At the beginning of calibration, the
most recent stored flow value is adjusted. You can change this value by pressing the Reset
key or the Info key. You cannot stop the calibration process, once it has started.
At each calibration point, you must adjust the flow by pressing the Info key or the Reset key
such that the value shown on the display matches that indicated on the external flow meter.
Test Setup
adjust cal. points
• Adjust the mode switch to IPPV.
• Adjust the AirMix/NoAirMix mode selector switch to Air Mix position.
• Set the selector switch for PEEP/CPAP to 0 mbar.
• Select the Extended Service Mode (ESM).
• Press the Reset key or the Info key to select Test 013.
• Press the Info key and the Reset key simultaneously to activate Test 013.
DS-Modus 5503.160 Oxylog 2000 11/97 Service-Mode SW 2.xx
Page 21
