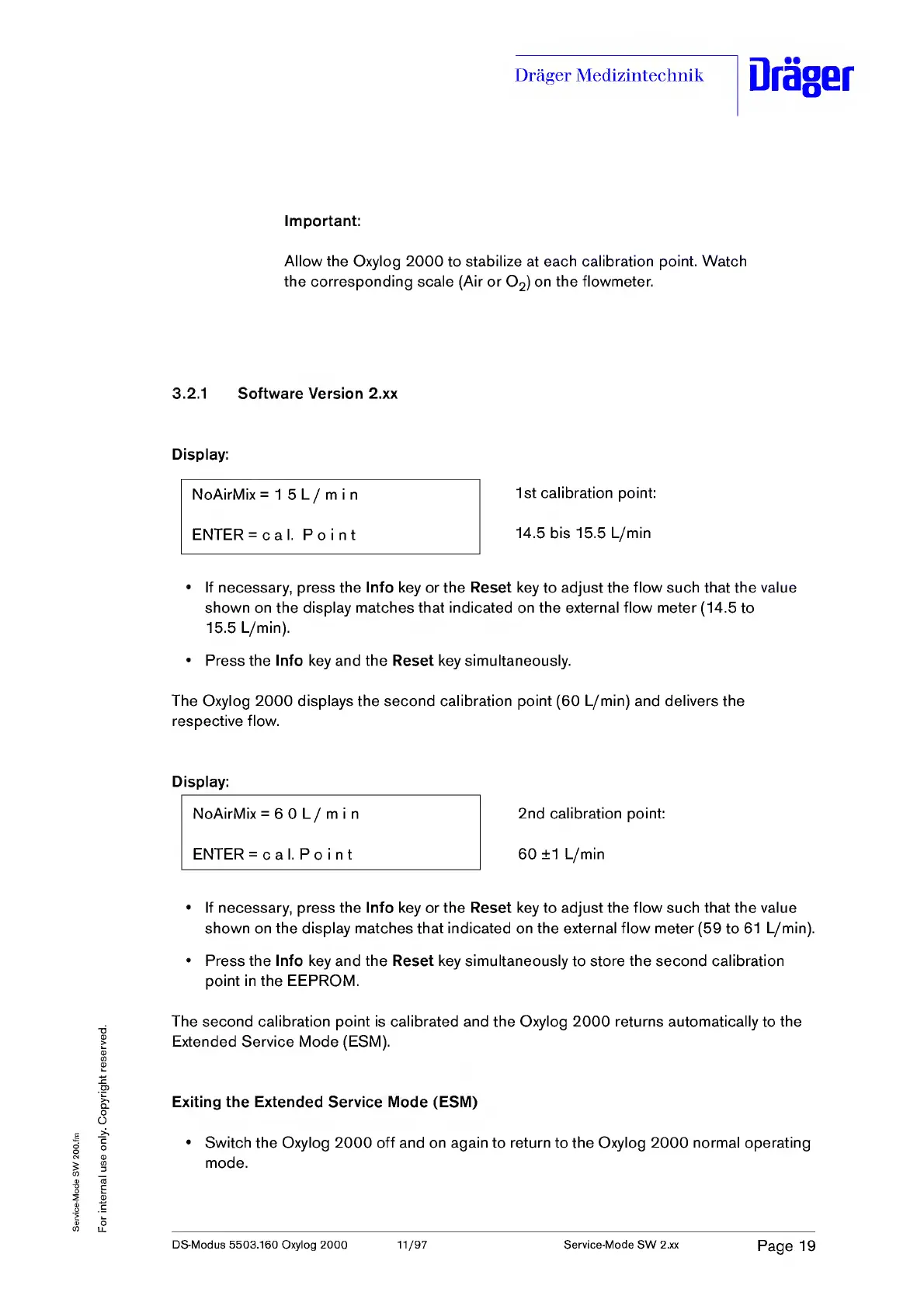

Important:
Allow the Oxylog 2000 to stabilize at each calibration point. Watch
the corresponding scale (Air or 0 2 ) on the flowmeter.
3.2.1 Software Version 2.xx
Display:
1st calibration point:
14.5 bis 15.5 L/min
NoAirMix = 1 5 L / m i n
ENTER = c a I. Point
• If necessary, press the Info key or the Reset key to adjust the flow such that the value
shown on the display matches that indicated on the external flow meter (14.5 to
15.5 L/min).
• Press the Info key and the Reset key simultaneously.
The Oxylog 2000 displays the second calibration point (60 L/min) and delivers the
respective flow.
Display:
2nd calibration point:
60 +1 L/min
NoAirMix = 6 0 L/ m i n
ENTER = cal. Point
• If necessary, press the Info key or the Reset key to adjust the flow such that the value
shown on the display matches that indicated on the external flow meter (59 to 61 L/min).
• Press the Info key and the Reset key simultaneously to store the second calibration
point in the EEPROM.
The second calibration point is calibrated and the Oxylog 2000 returns automatically to the
Extended Service Mode (ESM).
Exiting the Extended Service Mode (ESM)
• Switch the Oxylog 2000 off and on again to return to the Oxylog 2000 normal operating
mode.
DS-Modus 5503.160 Oxylog 2000 11/97 Service-Mode SW 2.xx
Page 19
