Display:
Flow range
Air Mix 4 to 60 L/min
No Air Mix 4 to 60 L/min
Nom. = XX.XL/ min
Act. = + XX. XL/min

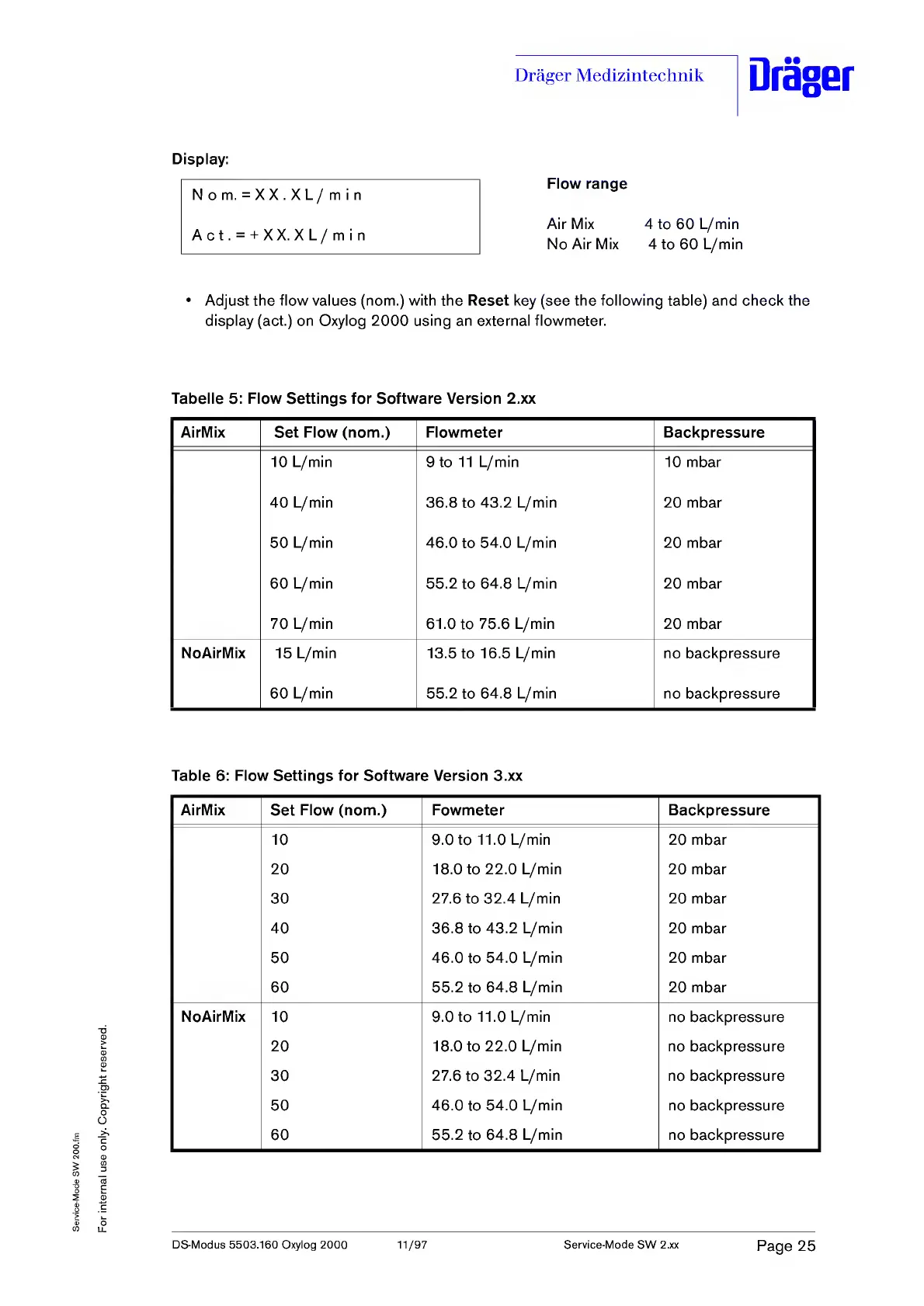

• Adjust the flow values (nom.) with the Reset key (see the following table) and check the
display (act.) on Oxylog 2000 using an external flowmeter.
Tabelle 5: Flow Settings for Software Version 2.xx
AirMix Set Flow (nom.) Flowmeter
Backpressure
10 L/min 9 to 11 L/min 10 mbar
40 L/min 36.8 to 43.2 L/min 20 mbar
50 L/min 46.0 to 54.0 L/min 20 mbar
60 L/min 55.2 to 64.8 L/min 20 mbar
70 L/min 61.0 to 75.6 L/min 20 mbar
NoAirMix 15 L/min 13.5 to 16.5 L/min
no backpressure
60 L/min 55.2 to 64.8 L/min
no backpressure
Table 6: Flow Settings for Software Version 3.xx
AirMix Set Flow (nom.) Fowmeter
Backpressure
10
9.0 to 11.0 L/min 20 mbar
20 18.0 to 22.0 L/min 20 mbar
30 27.6 to 32.4 L/min 20 mbar
40 36.8 to 43.2 L/min 20 mbar
50 46.0 to 54.0 L/min 20 mbar
60 55.2 to 64.8 L/min 20 mbar
NoAirMix 10 9.0 to 11.0 L/min no backpressure
20 18.0 to 22.0 L/min
no backpressure
30 27.6 to 32.4 L/min no backpressure
50 46.0 to 54.0 L/min
no backpressure
60 55.2 to 64.8 L/min
no backpressure
