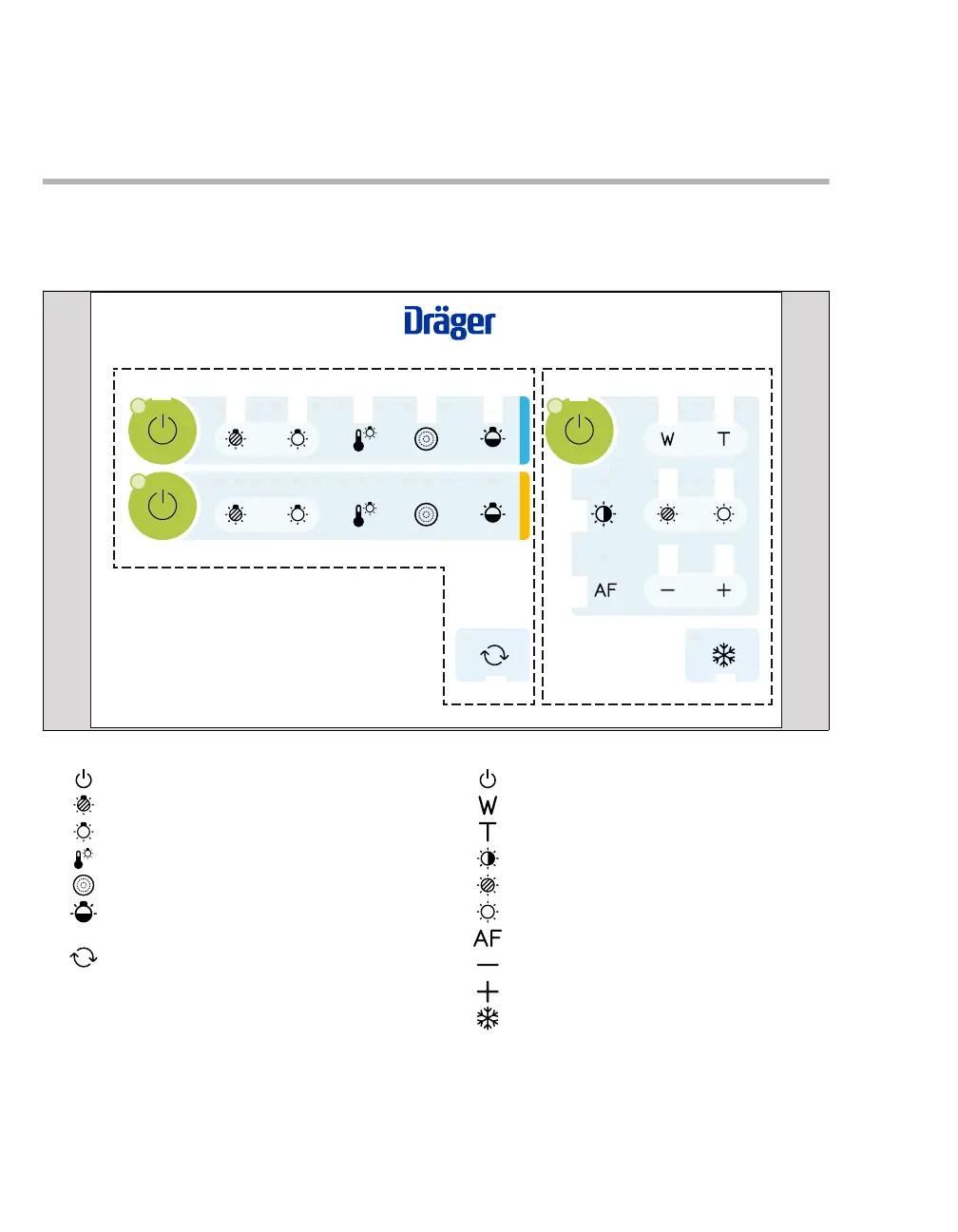

Wall-mounted control panel for 2 Polaris 600 lights and a MedView
camera (configuration example)
For a Polaris 600 light with MedView camera, the
camera control area is on the right-hand side of the
shared wall-mounted control panel.
Light control area
A key: Light on/standby
B key: Reduce illuminance
C key: Increase illuminance
D key: Set color temperature
E key: Set light field diameter
F key: Switch ambient light (Endo light)
on/off
G key: Switch synchronization on/off
Camera control area
H key: MedView camera on/standby
I key: Zoom out video image (Wide)
J key: Zoom in video image (Tele)
K key: Switch automatic exposure on/off
L key: Reduce exposure (manually)
M key: Increase exposure (manually)
N key: Switch autofocus on/off
O key: Focus on distant object (manually)
P key: Focus on near object (manually)
Q key: Switch freeze frame on/off
26980
A
H
B C D E F
I J
K
L M
N
O
P
Q
G
