Instructions for use Polaris 600 83
Maintenance
Adjusting the arm system
Adjusting the spring arm
Adjusting the height stop
Vertical movement of the light/display mount is
limited by a fixed lower and an adjustable upper
stop.
The adjustable upper stop (height stop) can be set
to any position between the positions (A) and (B).
This range is between approx. 0
o
and 45
o
.
The factory setting for the spring arm is position
(B).

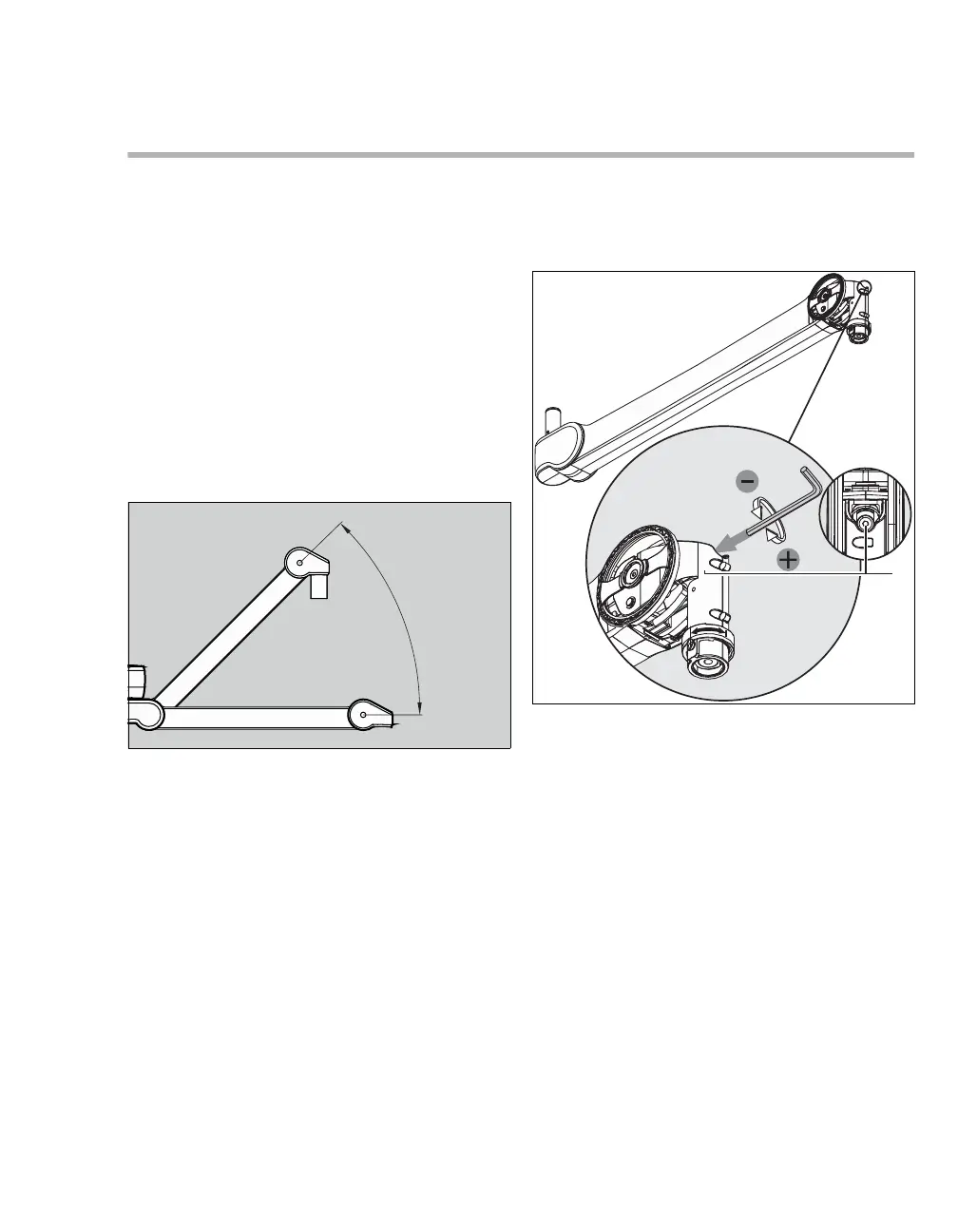

For simplification, the illustration shows the spring
arm without light/display mount.
Adjustment
 Remove covers and panels in accordance with
the Polaris 600 assembly instructions.
1 Insert a 5 mm Allen key into the adjustment
opening (1).
 Pull the spring arm down a little to relieve the
adjusting screw in the arm.
To reduce the swivel range
 Turn the Allen key left (counterclockwise) in
accordance with the illustration.
To increase the swivel range
 Turn the Allen key right (clockwise) in
accordance with the illustration.
 Carry out a function test.
50954
A
B
45°
50955
1
