Operating concept
28 Instructions for use Polaris 600

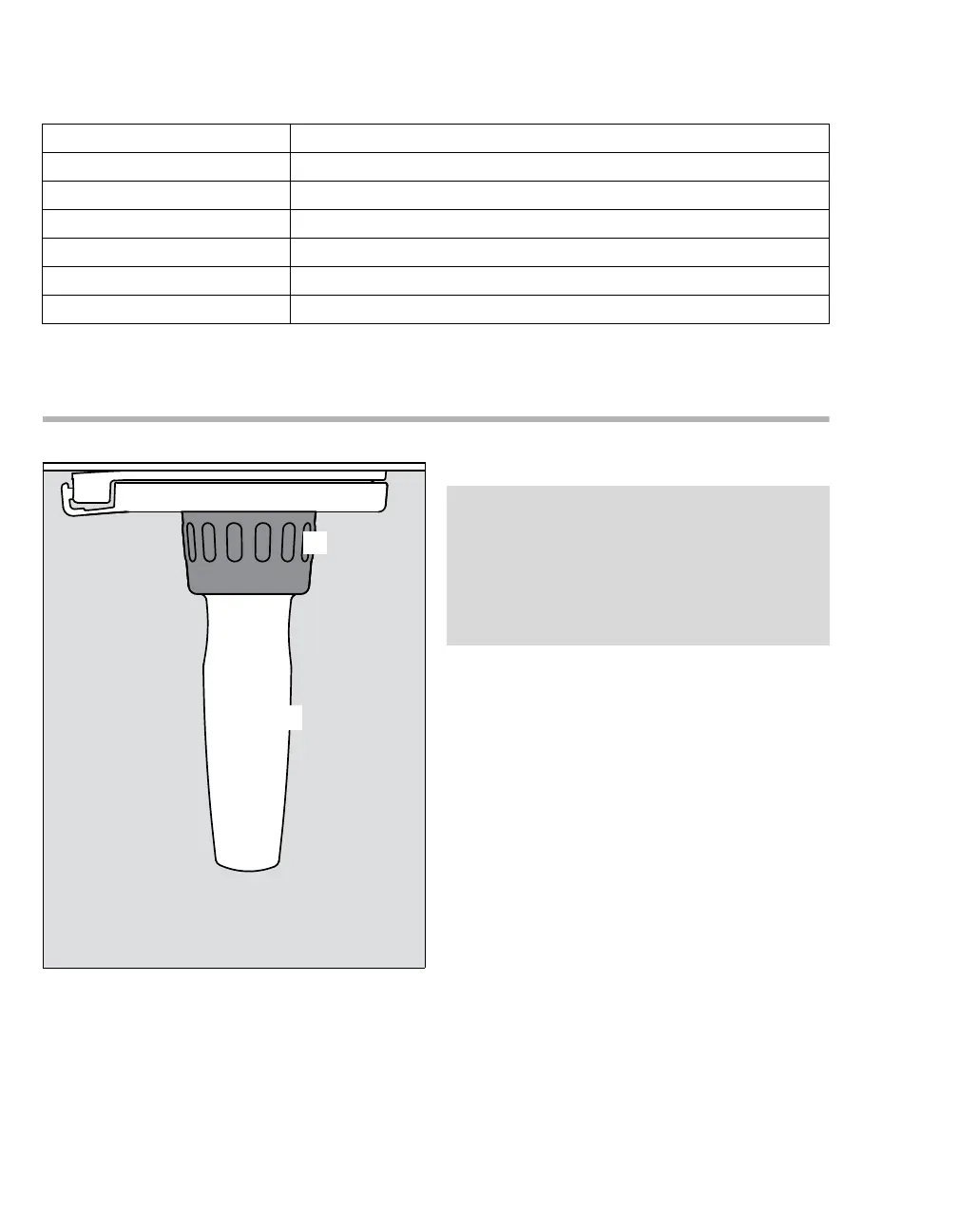

Sterilizable handle E
The handle is used both for positioning and for
adjusting the light.
It consists of the operating section (A) and the
handle section (B).
The handle section is used for sterile positioning.
The operating section is used for setting the
illuminance and the light field diameter.
The operating section of the handle is touch-
sensitive, i.e., it is sufficient to lay a finger on the
surface. It is not necessary to exert any pressure.
The better the contact between finger and surface,
the easier it is to adjust the light.
The operating section of the handle can be
operated when surgical gloves are worn.
 A wiping motion with one finger across the
surface of the operating section at any location
will adjust the illuminance, see "Setting
illuminance on the sterilizable handle E" on
page 51.
 Double-tapping with one finger on the surface
of the operating section at any location will
adjust the light field diameter, see "Setting
illuminance on the sterilizable handle E" on
page 51.
Correct operation of the sterilizable handle E
The touch-sensitive part of the handle is designed
so that, for correct operation, only one finger must
touch the operating section at any one time. If
Polaris 600 remote control for MedView camera
Light field diameter –
Illuminance –
Color temperature –
Synchronization –
Ambient light (Endo light) –
MedView camera X
26546
B
A
NOTE
The sterilizable handle E will lose its functionality
if disposable handles and the associated handle
adapter for disposable handles from
manufacturers other than Dräger are used. It will
no longer be possible to set the illuminance or
the light field diameter in the operating section.
