Замена мембранного
фильтра сенсоров на
уплотняющей пластине
Выключите инструмент.
1 Снимите с инструмента защитную
крышку блока сенсоров (крепится
двумя болтами).
Снимите уплотняющую пластину с
мембранным фильтром сенсоров
(крепится двумя болтами).
2 Используя защитную крышку блока
сенсоров,
3 снимите уплотняющую пластину,
следя за тем, чтобы не повредить
мембранный фильтр сенсоров!
Снимите старый мембранный фильтр
сенсоров и установите новый (код
заказа 83 13 369).
Установите на место и закрепите
пластину с мембранным фильтром
сенсоров, следя за правильным
положением прокладки.
1 Установите и закрепите защитную
крышку блока сенсоров.
Работа без мембранного фильтра
сенсоров
Возможна для специальных прило
жений (например, измерения паров).
При работе без мембранного фильтра
увеличивается скорость срабатывания
IR сенсора.

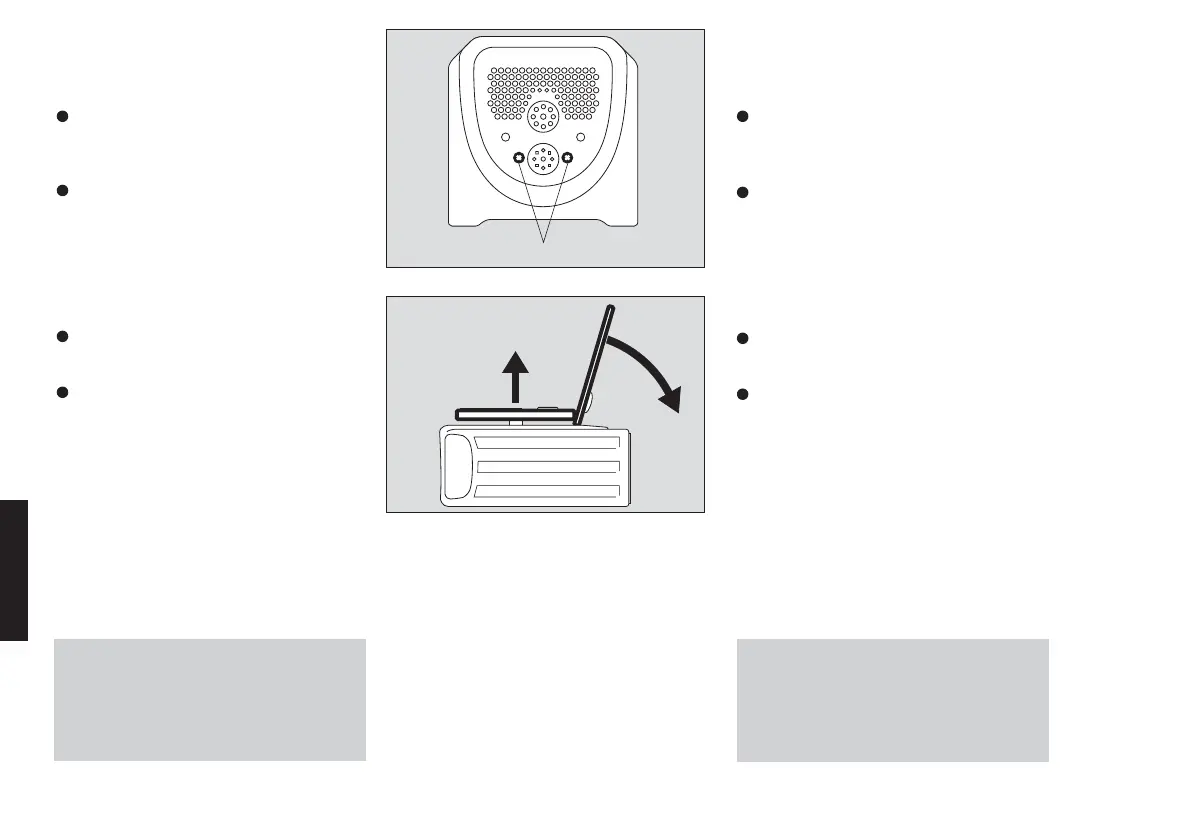

Replacing the sensor
membrane on sealing plate
Switch off the instrument.
1 Remove the sensor grille from the in
strument (secured with two screws).
Remove the sealing plate with sensor
membrane (secured with two screws).
2 With the aid of the sensor grille.
3 Remove the sealing plate, taking care
not to damage the sensor membrane!
Remove the old sensor membrane and
fit a new one (Order No. 83 13 369).
Mount and secure the sealing plate with
sensor membrane, taking care that the
gasket is correctly positioned.
1 Mount and secure the sensor grille.
Note:
The degree of protection (IP class) is
reduced when the instrument is ope#
rated without the sensor membrane.
The instrument is then only splash#
proof.
Замечание:
Класс защиты (класс IP) понижает#
ся, когда инструмент работает без
мембранного фильтра сенсоров.
При этом инструмент обладает
только брызгозащищенностью.
Operation without the sensor
membrane
This is possible for special applications
(such as measuring vapors).
Operation without the sensor membrane
permits faster reaction of the IR sensor.
