Aligning the Horizon Compact System
19
Horizon Compact Release 1.01.00 Wireless Ethernet Product User Manual – Volume 2
Table 2-5 Antenna Height vs Obstacle Distance for 24 GHz Unlicensed
Distance
from
Obstacle
(ft)
0 1 2 3 4 5 6 7 8 9 10 20 30 40 >40
Minimum
Antenna
Height
above
Obstacle
(ft)
1 2 3 4 4.36 4.46 4.55 4.64 4.73 4.82 4.91 5.82 6.73 7.64 8

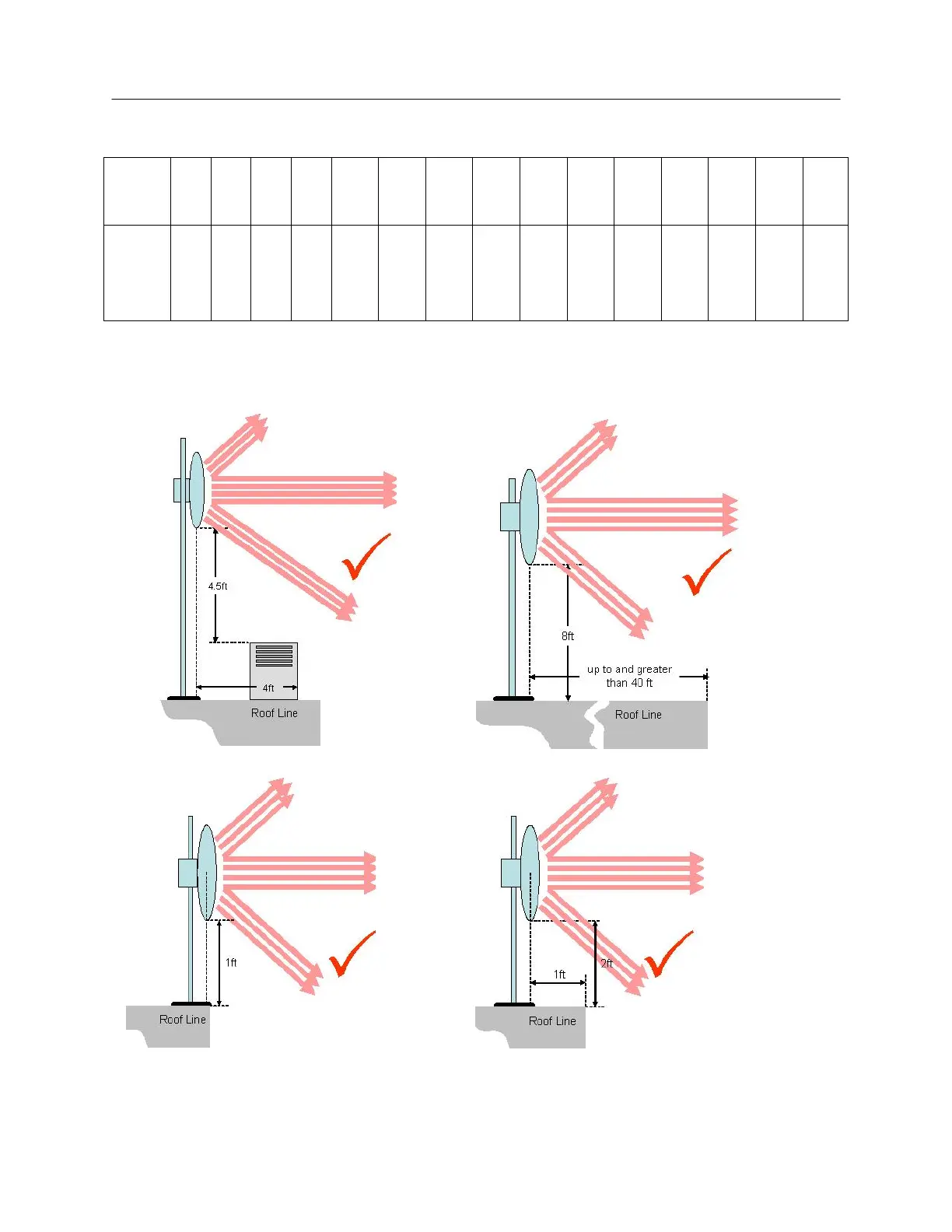

The following figures illustrate examples of correct and incorrect antenna location.
Figure 2-8 Correct & Incorrect Antenna location
