Advanced Configuration Features
95
Horizon Compact Release 1.01.00 Wireless Ethernet Product User Manual – Volume 2
NOTE: For clarity, the PonE power adapter and surge arrestor have been omitted from the
diagrams. Both the Port 1 and Port 2 Ethernet connections and the power feed via Port 1 must be
protected from transients.

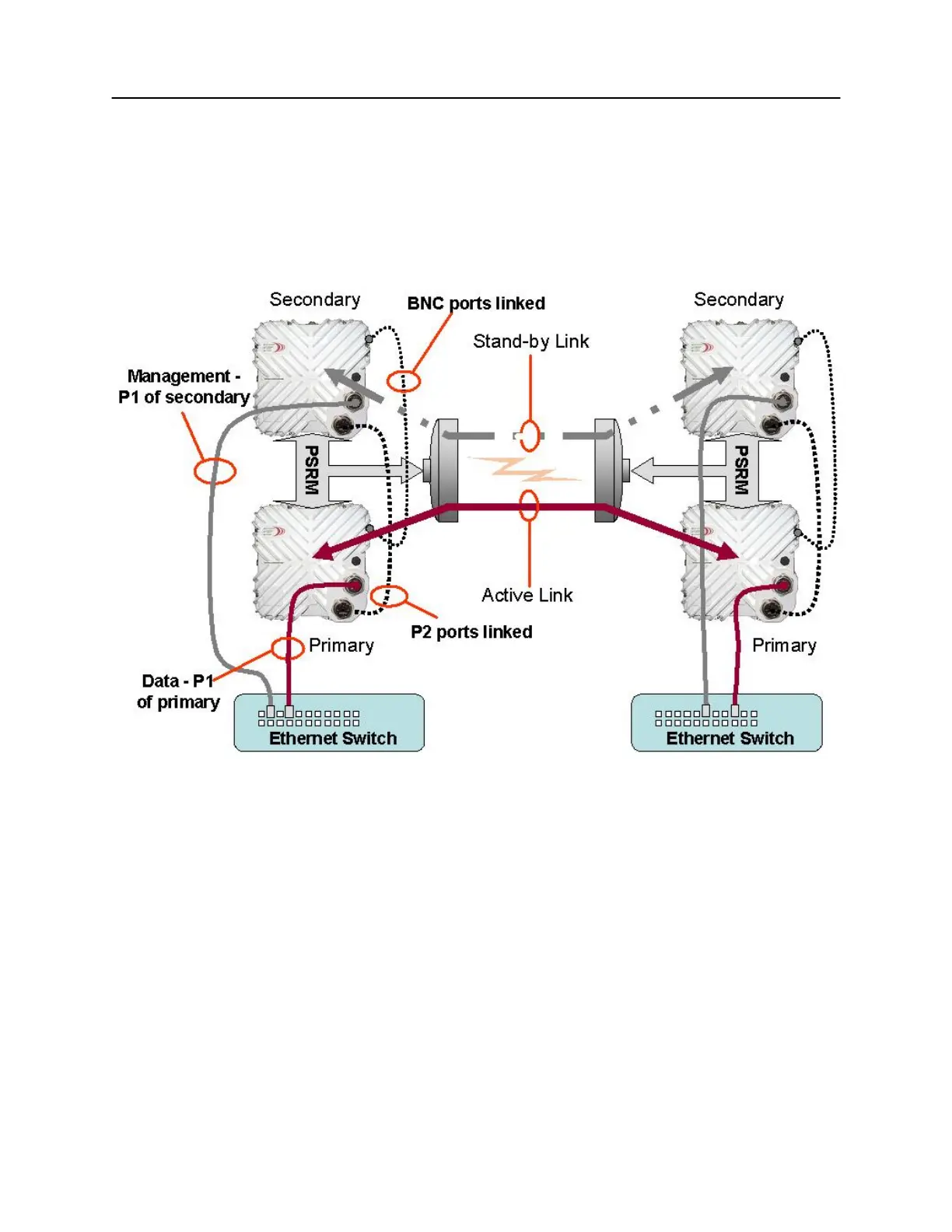

Figure 3-6 Redundancy Connections – single wire option – copper interface
