7-5
CH 7/ View Event Data
Event Data Display

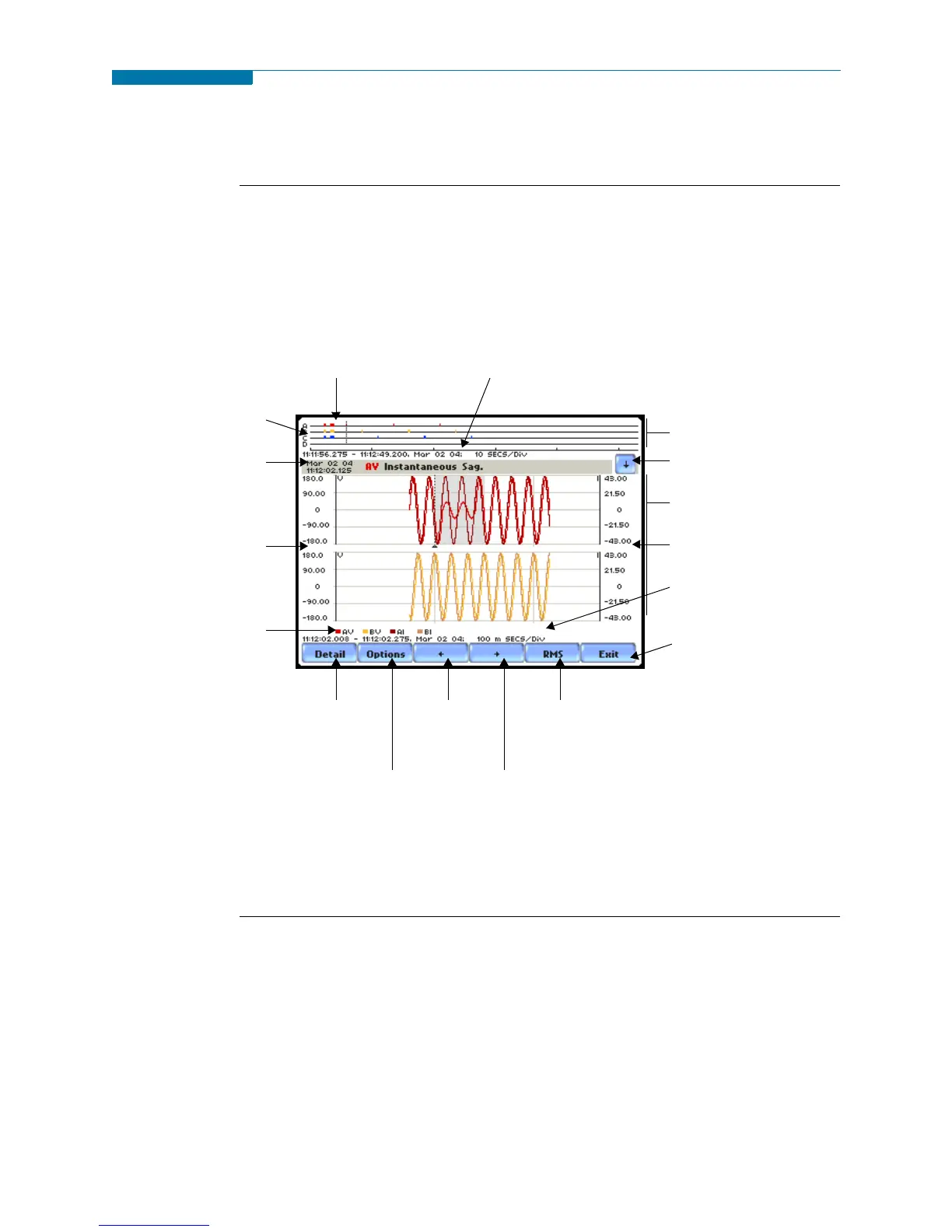

Event screen
The event screen will display an event activity graph, waveform detail, and buttons like
Detail magnification, Options to change and/or add parameters/channels to trend,
buttons to view previous/next event, and RMS/Waveform toggle. From the Home
screen, press Events. The following screen will be displayed:
NOTE: Event data is displayed only while monitoring or upon reading a stored file
from the data card.
MARK500
time, date, channel/
parameter, classification
of displayed event
monitoring start time and date,
monitoring end time and date
(or present time & date if monitoring is still on)
event activity graph (p. 7-6)
trigger channels
view event
detail
options to change/add
parameter/channel to plot
(p. 7-15)
display
previous
event
display next event
toggle between
waveform and rms
display
return to Home screen
display event list (p. 7-7)
event plot (p. 7-9)
event start and end time
and date; horizontal axis
time/division
vertical axis for voltage
color coded blocks
show triggered events
in the record
plotted channels/
parameters
vertical axis for current
