Advanced Power Meter Tab
Advanced Power Meter Tab

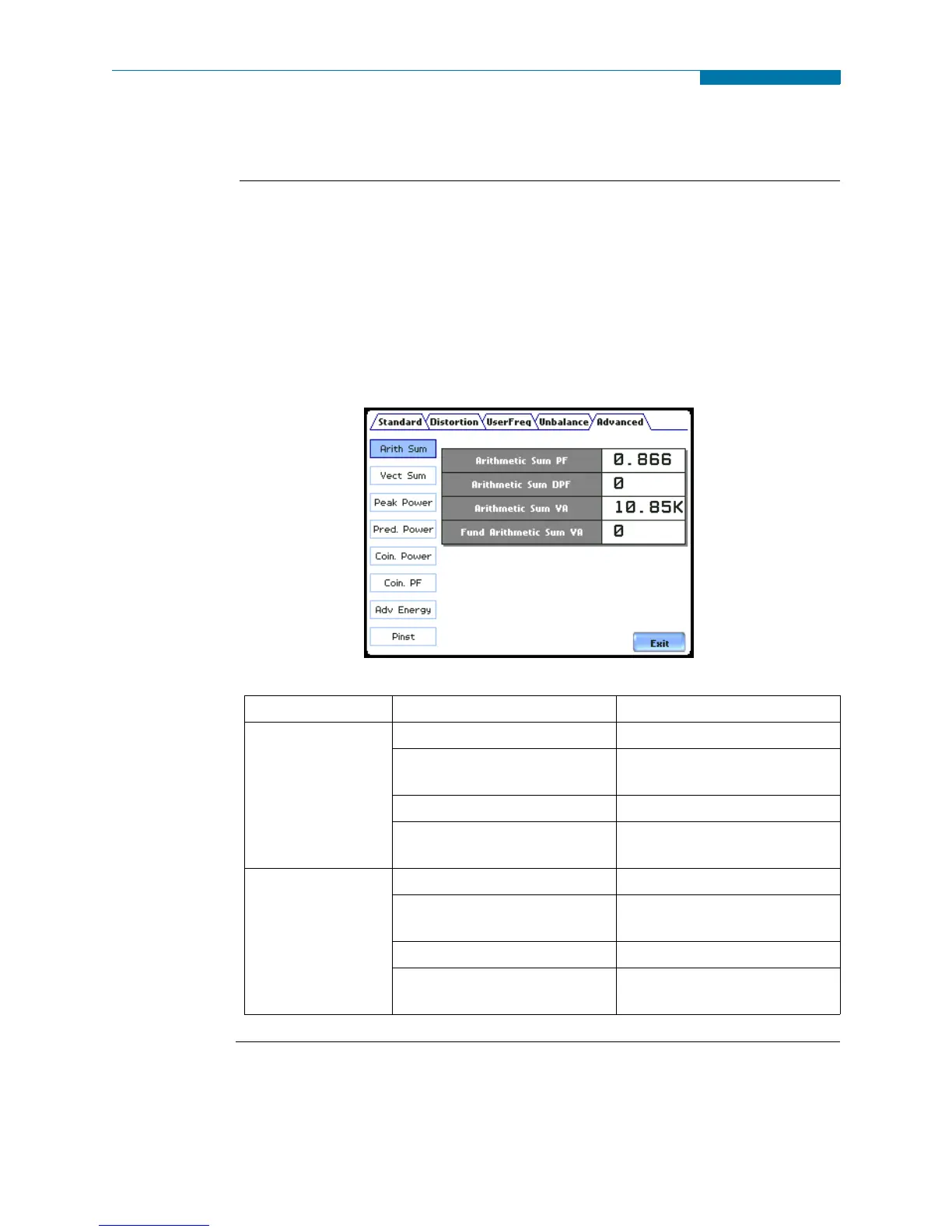

Advanced power
meter list
Advanced power metering tab meters multiple total apparent power and power factor
parameters, calculated using arithmetic and vector sums of the individual phases. These
methods may produce different values with distorted and/or unbalance phases.
Demand/Advanced Energy include various energy parameters on per phase and total
basis as well as in forward and reverse mode. Some parameters such as displacement
power factor are only valid for the fundamental frequency. The Advanced tab also
allows trending of rapid voltage changes that result in light flicker. Flicker parameters
under the Advanced tab are used primarily for specialized testing. Flicker
measurements are calculated as per IEC 61000-4-15.
Continued on next page
Advanced Tab Parameter Name Label
Arithmetic Sum Arithmetic Sum Power Factor Arithmetic Sum PF
Arithmetic Sum Displacement
Power Factor
Arithmetic Sum DPF
Arithmetic Sum Volts Ampere Arithmetic Sum VA
Fundamental Arithmetic Sum
Volts Ampere
Fund Arithmetic Sum VA
Vector Sum Vector Sum Power Factor Vector Sum PF
Vector Sum Displacement
Power Factor
Vector Sum DPF
Vector Sum Volts Ampere Vector Sum VA
Fundamental Vector Sum Volts
Ampere
Fundamental Vector Sum VA
