2-7

CH 2/ Voltage Measurement Cable and Current Probe Connections

Example:

Neutral to

ground

connection

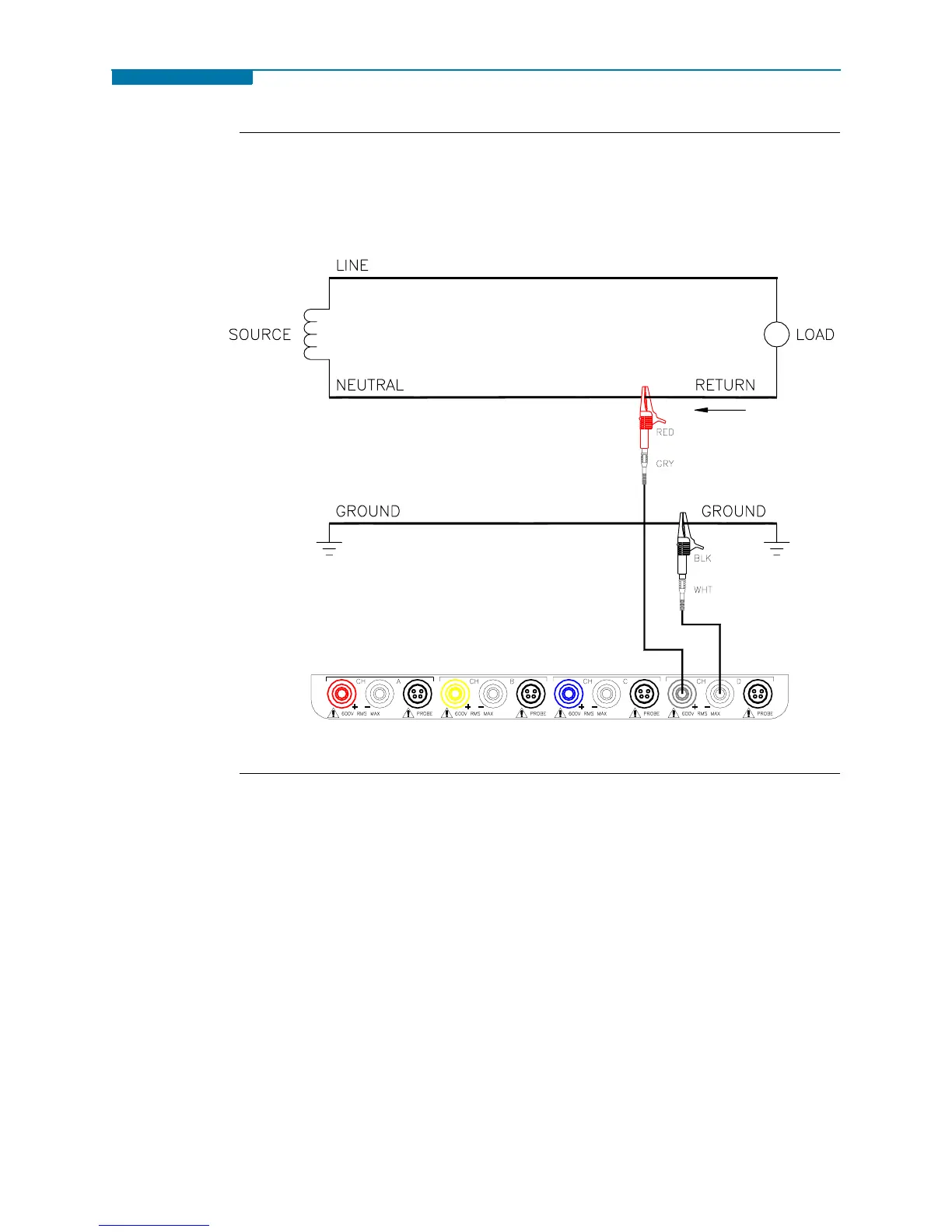

The following figure shows a voltage connection using channel D as a differential input

for measuring neutral to ground voltage. Connections are identical for split phase and

wye configurations. One probe connects the source neutral line to the D+ input.

Another probe connects the ground to the D- input.

PX5-13.vsd
