2-10

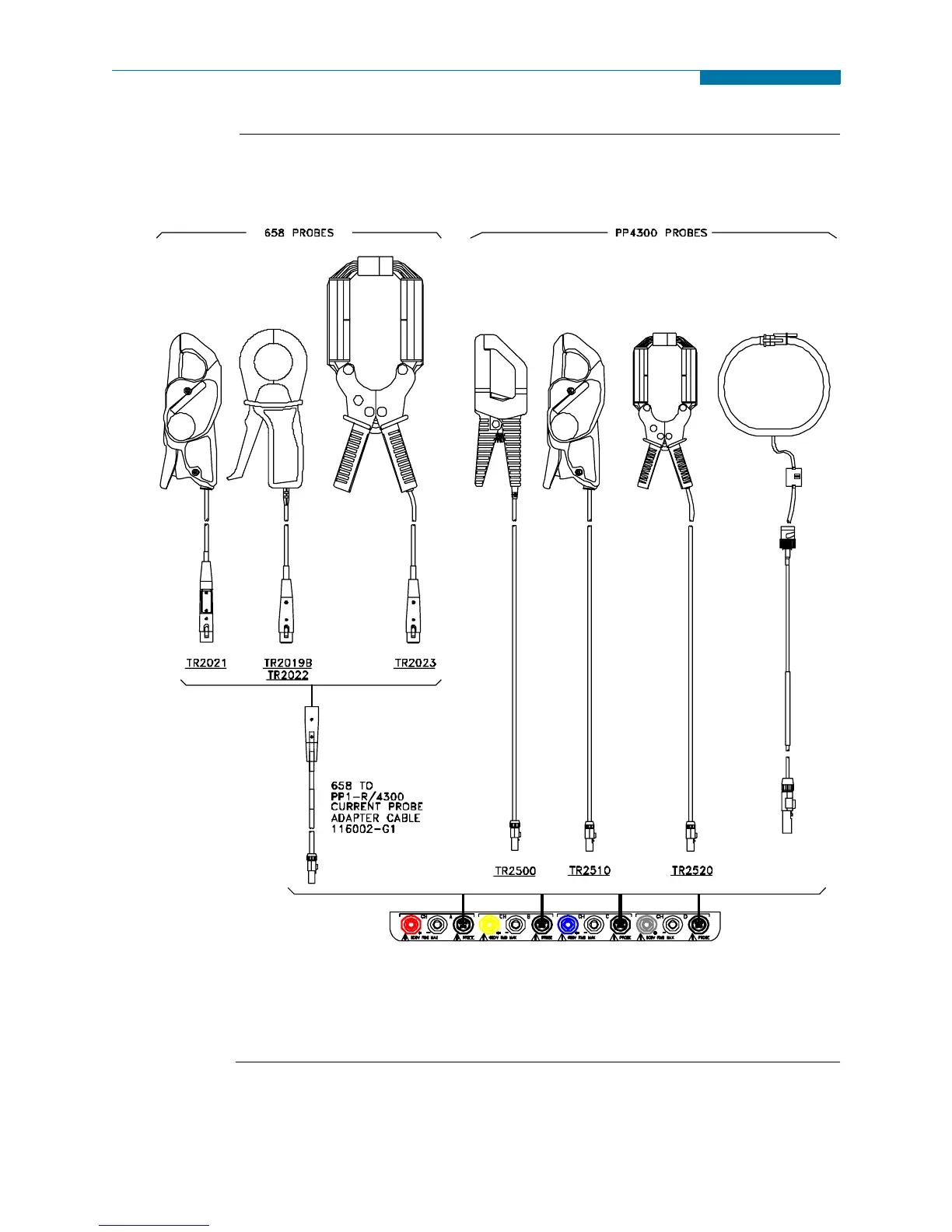

Connecting Current Probes, continued
Typical current
probes
NOTE: Current probes TR2500 can be used interchangeably with TR2500A, TR2510
with TR2510A, and TR2520 with TR2520A.
Continued on next page
4300 TO LEMFLEX
CURRENT PROBE
ADAPTER CABLE
116310-G1
PX5-14.vsd
