Vigor2920 Series User’s Guide

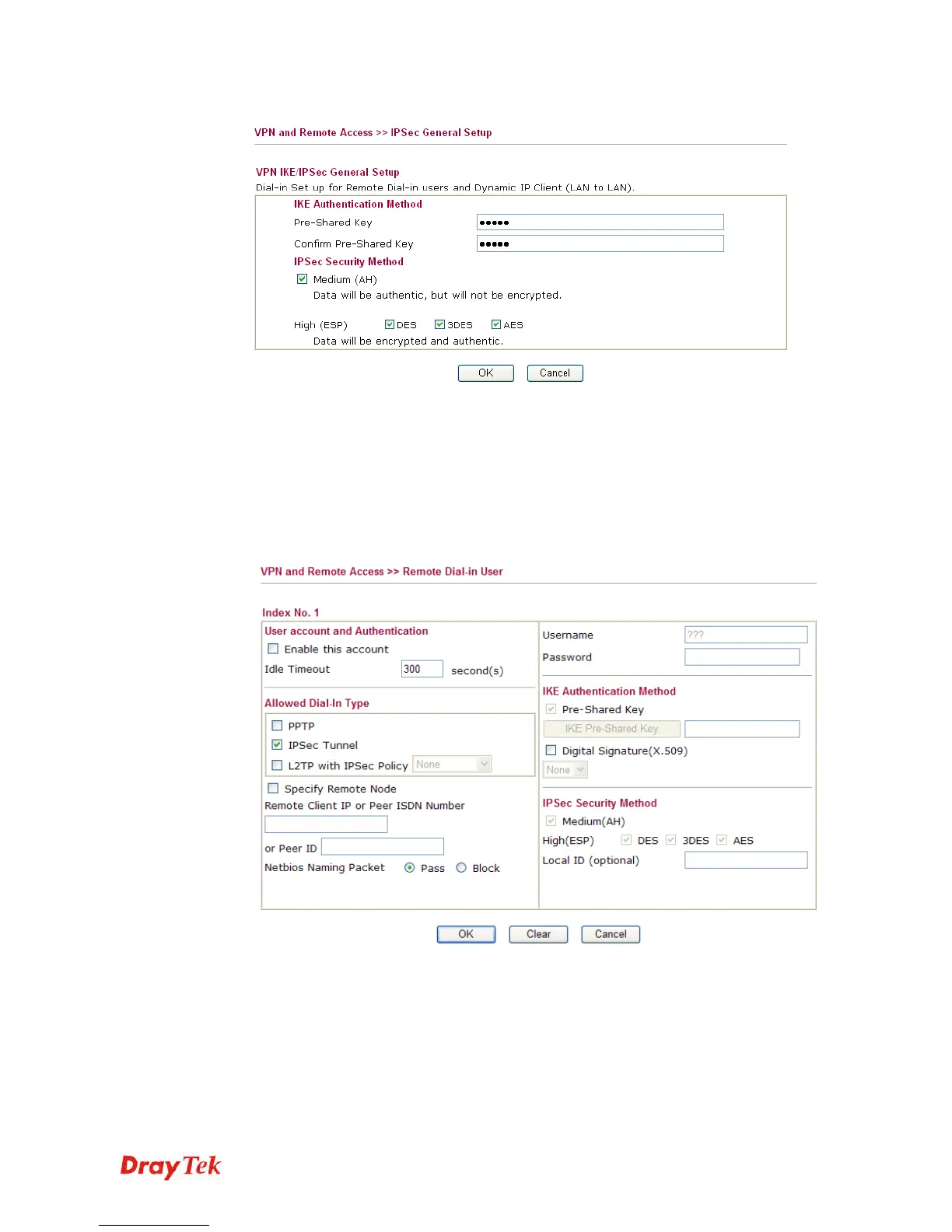

3. Go to Remote Dial-In User. Click on one index number to edit a profile.

4. Set Dial-In settings to as shown below to allow the remote user dial-in to build VPN

connection.

If an IPSec-based service is selected, you may further specify the remote peer IP

Address, IKE Authentication Method and IPSec Security Method for this Dial-In

connection. Otherwise, it will apply the settings defined in IPSec General Setup above.
