Vigor2920 Series User’s Guide
172
Enable
Check this box to enable this policy.
Protocol
Display the protocol used for this policy.
Interface
Display the interface to send packets to once the policy is
matched.
Interface Address
Display the WAN IP or WAN IP alias address which is
used as source IP of the outgoing packets.
Src IP Start
Displays the IP address for the start of the source IP.
Src IP End
Displays the IP address for the end of the source IP.
Dest IP Start
Displays the IP address for the start of the destination IP.
Dest IP End
Displays the IP address for the end of the destination IP.
Dest Port Start
Displays the IP address for the start of the destination port.
Dest Port End
Displays the IP address for the end of the destination port.
Move UP/Move Down
Use Up or Down link to move the order of the policy.
Wizard Mode
This mode will guide you to configure the common settings
with several pages.
Advance Mode
This mode allows you to modify all the settings in one
page.

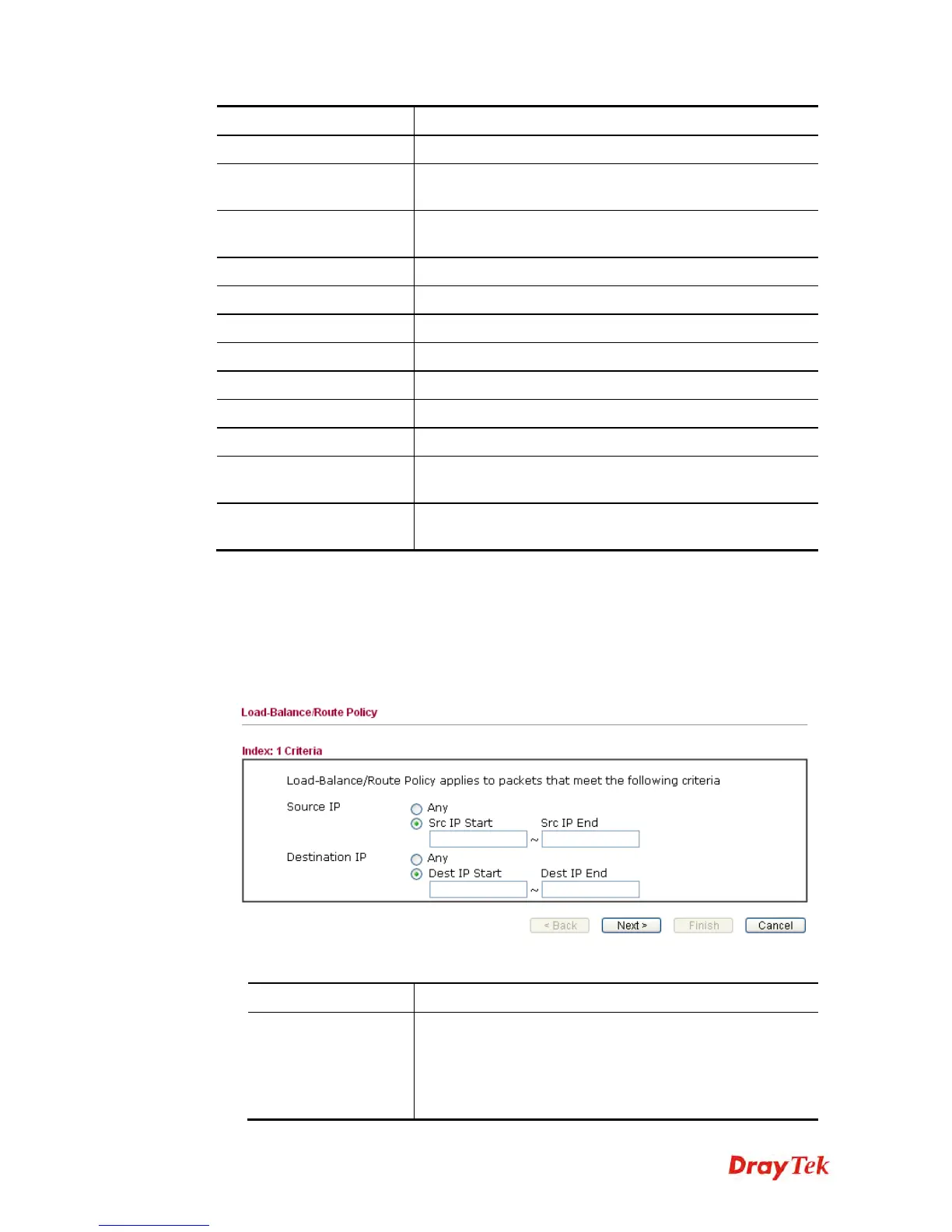

Click Index 1 to access into the following page for configuring load-balance policy. Here we
choose Advance Mode as an example.
To use Wizard Mode, simple do the following steps:
1. Click the Wizard Mode radio button.
2. Click Index 1. The setting page will appear as follows:
Available settings are explained as follows:
Item Description
Source IP
Any – Any IP can be treated as the source IP.
Src IP Start - Type the source IP start for the specified
WAN interface.
Src IP End - Type the source IP end for the specified
WAN interface. If this field is blank, it means that all the
To Next Page
