Vigor2920 Series User’s Guide
266
Item Description
End IP address.
For Subnet Address, you have to fill in Start IP address and
Subnet Mask.
DiffServ CodePoint
All the packets of data will be divided with different levels and
will be processed according to the level type by the system.
Please assign one of the levels of the data for processing with
QoS control.
Service Type
It determines the service type of the data for processing with
QoS control. It can also be edited. You can choose the
predefined service type from the Service Type drop down list.
Those types are predefined in factory. Simply choose the one
that you want for using by current QoS.
4. After finishing all the settings here, please click OK to save the configuration.
By the way, you can set up to 20 rules for one Class. If you want to edit an existed rule, please
select the radio button of that one and click Edit to open the rule edit page for modification.
E
E
d
d
i
i
t
t
t
t
h
h
e
e
S
S
e
e
r
r
v
v
i
i
c
c
e
e
T
T
y
y
p
p
e
e
f
f
o
o
r
r
C
C
l
l
a
a
s
s
s
s
R
R
u
u
l
l
e
e

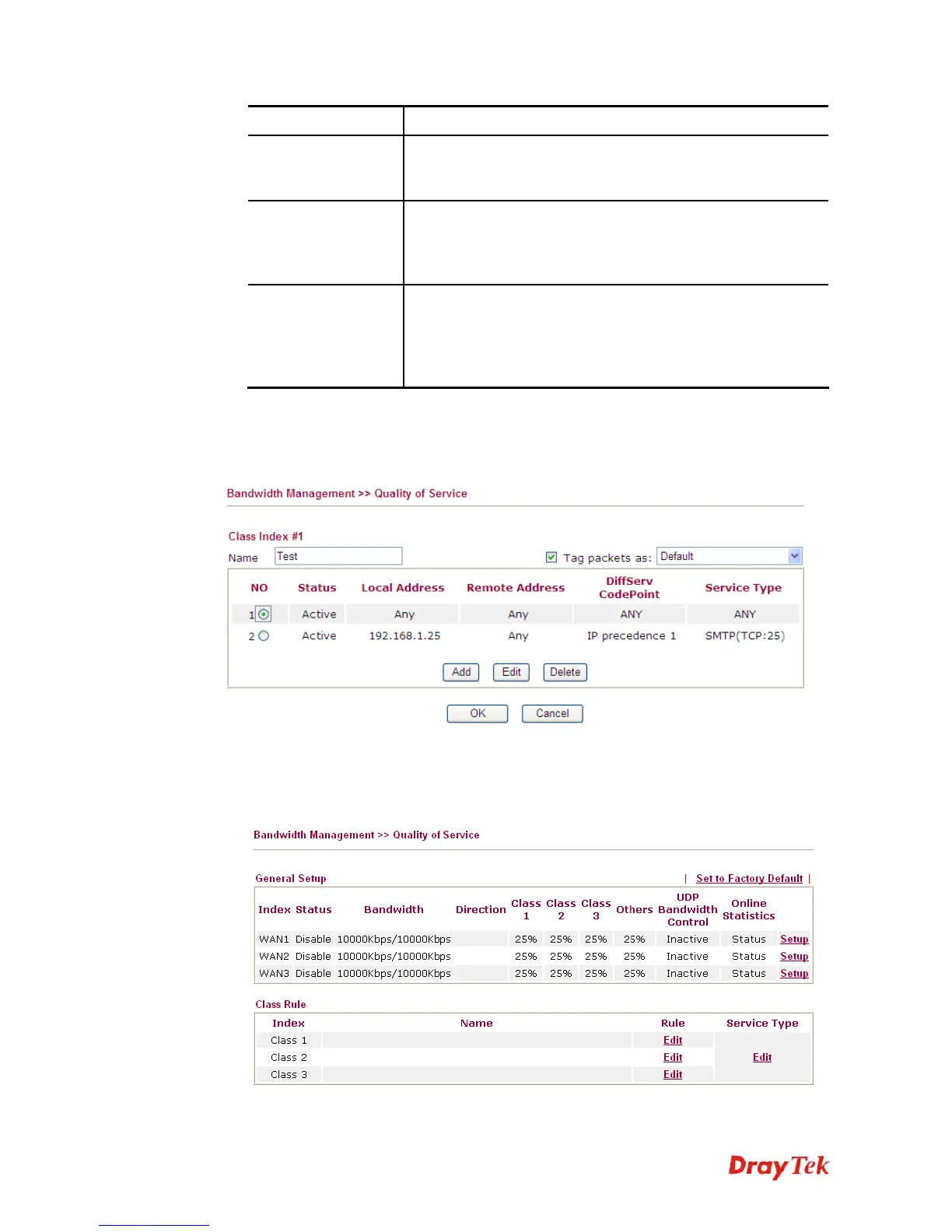

1. To add a new service type, edit or delete an existed service type, please click the Edit
link under Service Type field.
2. After you click the Edit link, you will see the following page.
