Vigor2920 Series User’s Guide

280

After finished the above settings, click OK button to save the settings.

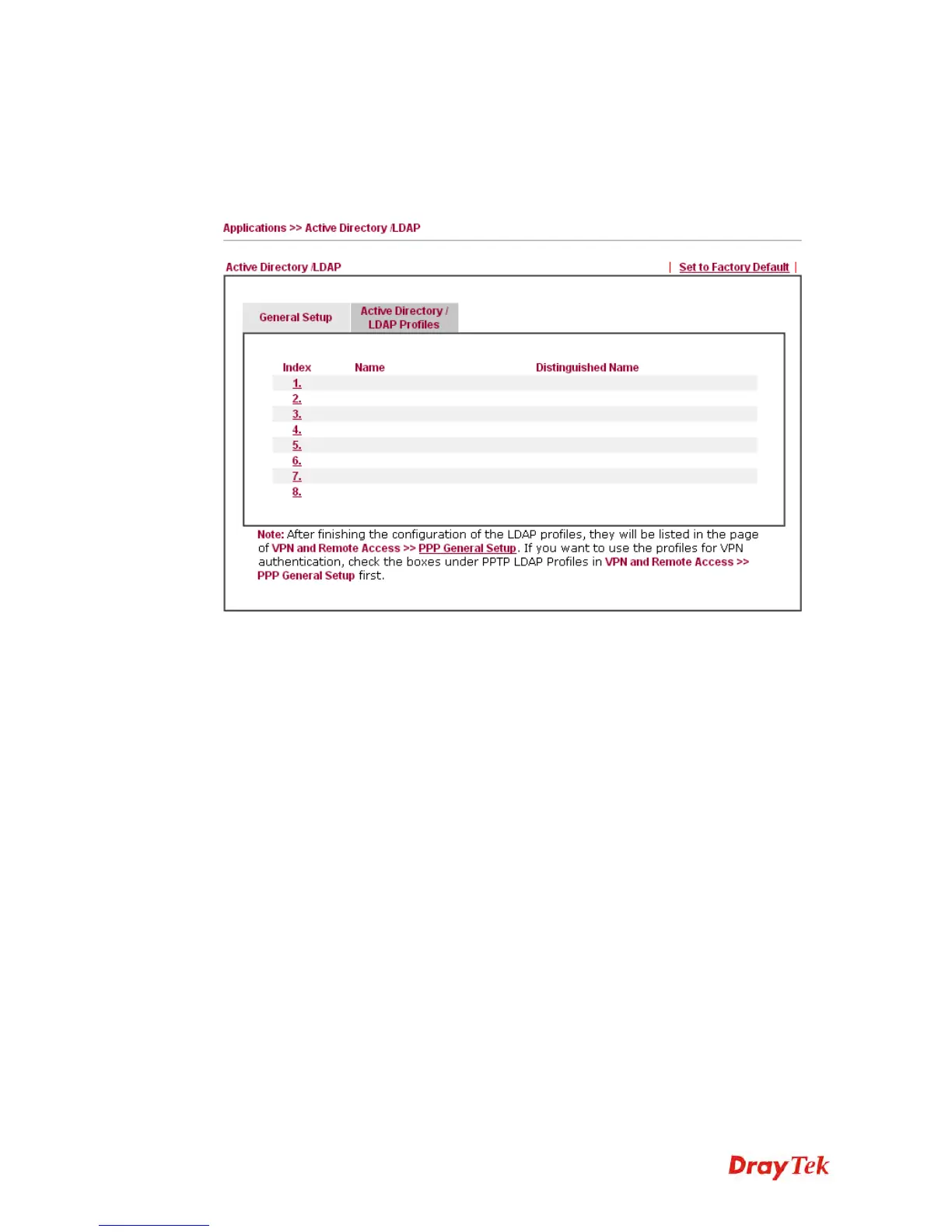

You can configure eight AD/LDAP profiles. These profiles would be used with User

Management for different purposes in management.
