Delete
Remove the selected profile.
To delete a profile, simply select the one you want to delete
and click the Delete button.
Refresh
Renew current web page.
IPSec
Display the LAN to LAN profile with IPSec policy.
PPTP Dial-out
Display the LAN to LAN profile with PPTP Dial-out policy.
PPTP Dial-in
Display the LAN to LAN profile with PPTP Dial-in policy.
Profile
Display the name of LAN to LAN profile.
Enable This Profile
Display the status of the profile. False means disabled; True
means enabled.
Local IP / Subnet Mask
Display the LAN IP address with subnet mask of this profile.
Remote IP / Subnet
Mask
Display the WAN IP address with subnet mask of this
profile.
More Remote Subnet
Display other LAN IP addresses with subnet mask which can
be used of this profile.
H
H
o
o
w
w
t
t
o
o
c
c
r
r
e
e
a
a
t
t
e
e
a
a
n
n
I
I
P
P
S
S
e
e
c
c
V
V
P
P
N
N
p
p
r
r
o
o
f
f
i
i
l
l
e
e
The IPSec services can provide access control, connectionless integrity, data origin
authentication, rejection of replayed packets that is a form of partial sequence integrity, and
confidentiality by encryption. These objectives are met through the use of two traffic
security protocols, the Authentication Header (AH) and the Encapsulating Security Payload
(ESP), and through the use of cryptographic key management procedures and protocols.

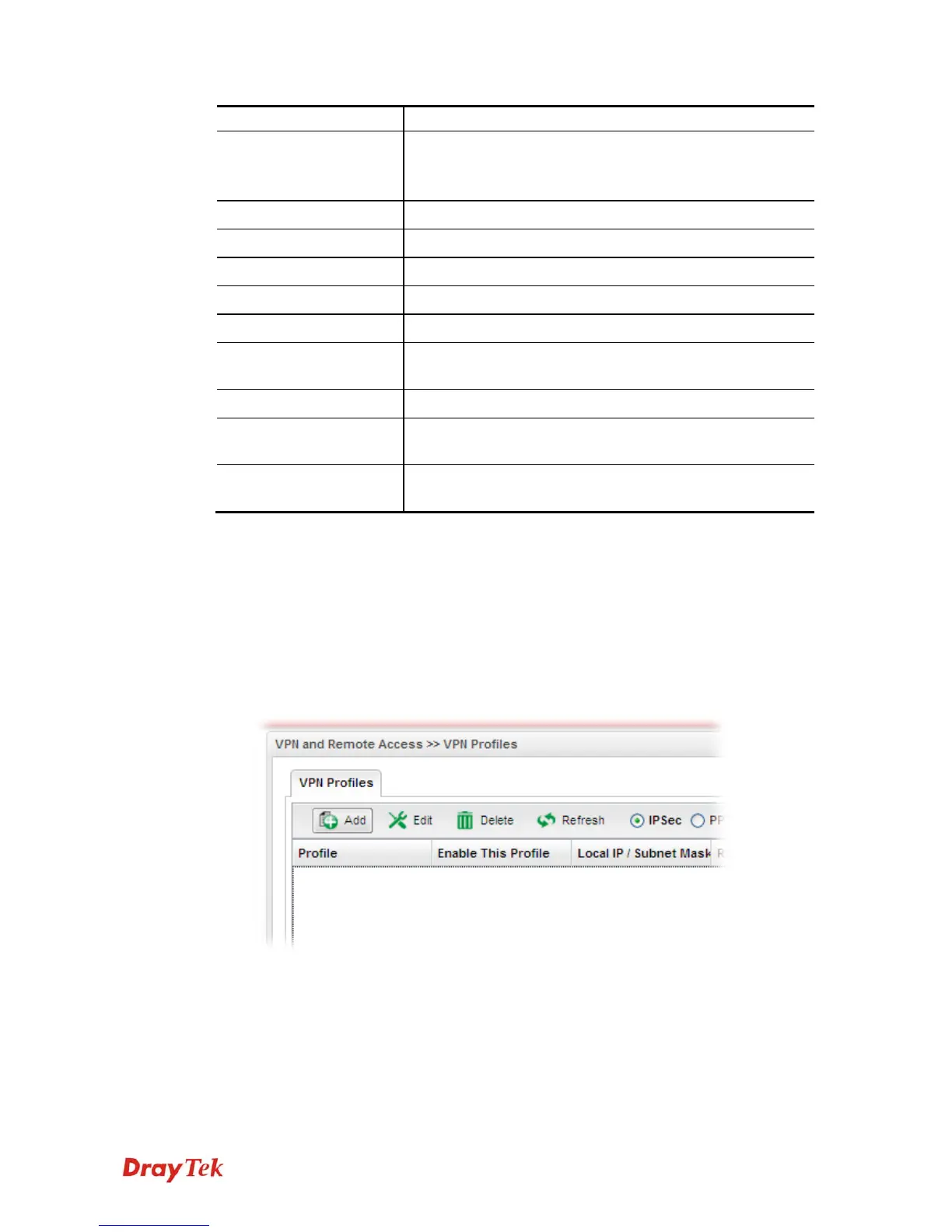

1. Open VPN and Remote Access >> LAN to LAN.
2. Simply click the Add button.
3. The following dialog will appear. Click the Basic tab to configure the settings.
