Draytek VigorAP 802 User Manual

3
I-1-1 LED Indicators and Connectors

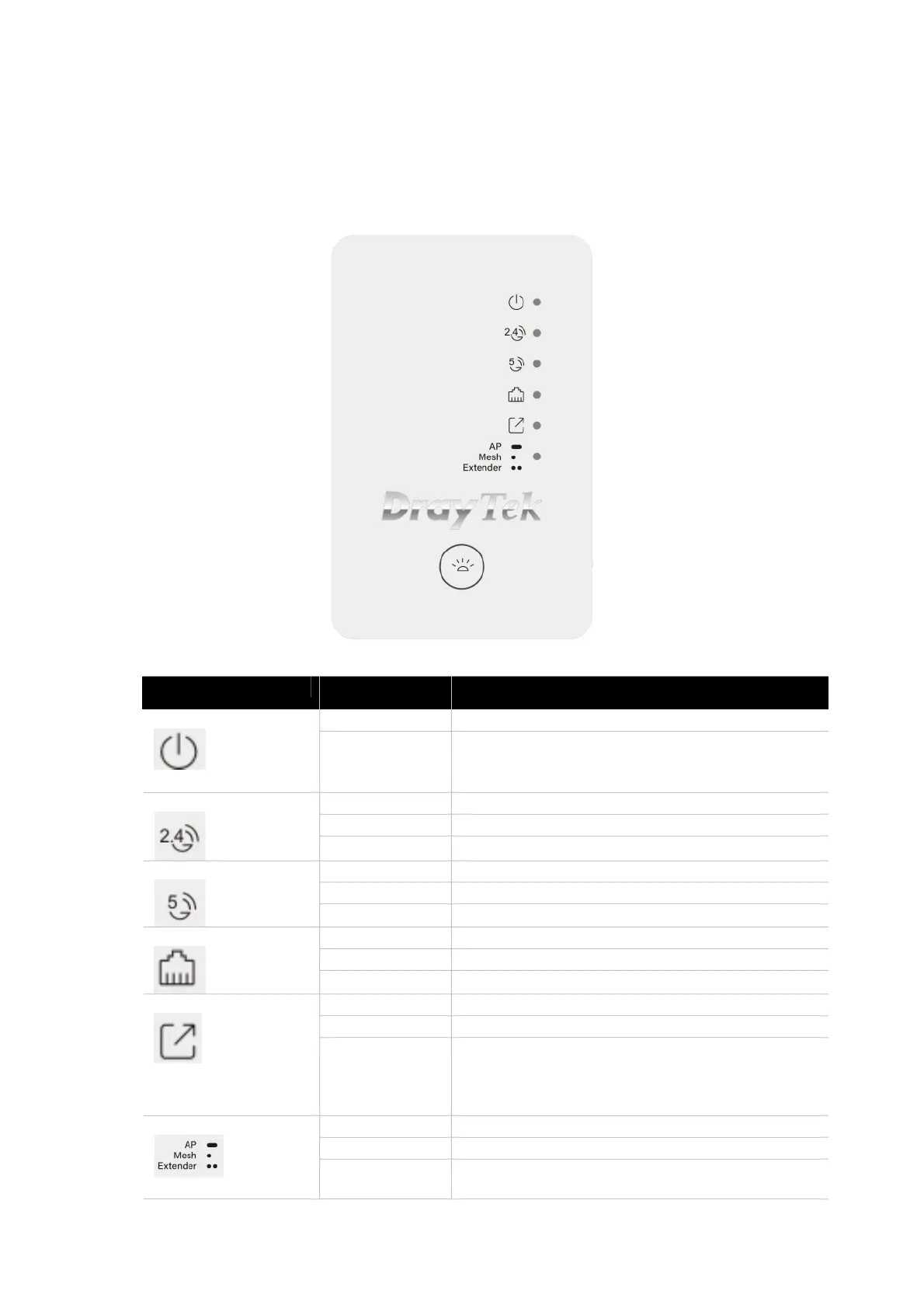

Before you use the Vigor modem, please get acquainted with the LED indicators and connectors
first.
LED Status Explanation
Off The system is not ready or is failed.
ACT
Blinking Slowly: The system is ready and can work normally.
Quickly: The system is booting up or resetting to the
Factory Default value.
On Wireless function (2.4G) is ready.
Off Wireless function (2.4G) is not ready.
2.4G
Blinking Data is transmitting (sending/receiving).
On Wireless function (5G) is ready.
Off Wireless function (5G) is not ready.
5G
Blinking Data is transmitting (sending/receiving).
On A normal connection is through its corresponding port.
Off LAN is disconnected.
LAN
Blinking Data is transmitting (sending/receiving).
On Connect to Mesh network or other AP.
Off Disconnect to Mesh network or other AP.
Uplink
Blinking The system is trying to connect to mesh network or
other AP. For AP mode, the system is scanning the
surrounding network. Or WPS is enabled and the
system is waiting for response from the wireless client.
On Indicate VigorAP is configured as AP mode.
Flash one time Indicate VigorAP is configured as Mesh Node mode.
Mode
Flash twice Indicate VigorAP is configured as Range Extender
mode.
