VigorSwitch G2240 User’s Guide
66
Parameter description:
VLAN ID: The configurable VID range:1~4094
UDP/TCP Port: To select the UDP/TCP port classification method by Range
or Specific.
UDP/TCP Port Range: The configurable ports range: 0~65535
You can refer to following UDP/TCP port-numbers
information.
http://www.iana.org/assignments/port-numbers
UDP/TCP Port No.: The configurable specific port value: 0~65535
DSCP Value: The configurable DSCP value: 0~63
Traffic Class: Low / Normal / Medium / High
2
2
.
.
6
6
.
.
3
3
R
R
a
a
t
t
e
e
L
L
i
i
m
m
i
i
t
t
e
e
r
r
s
s

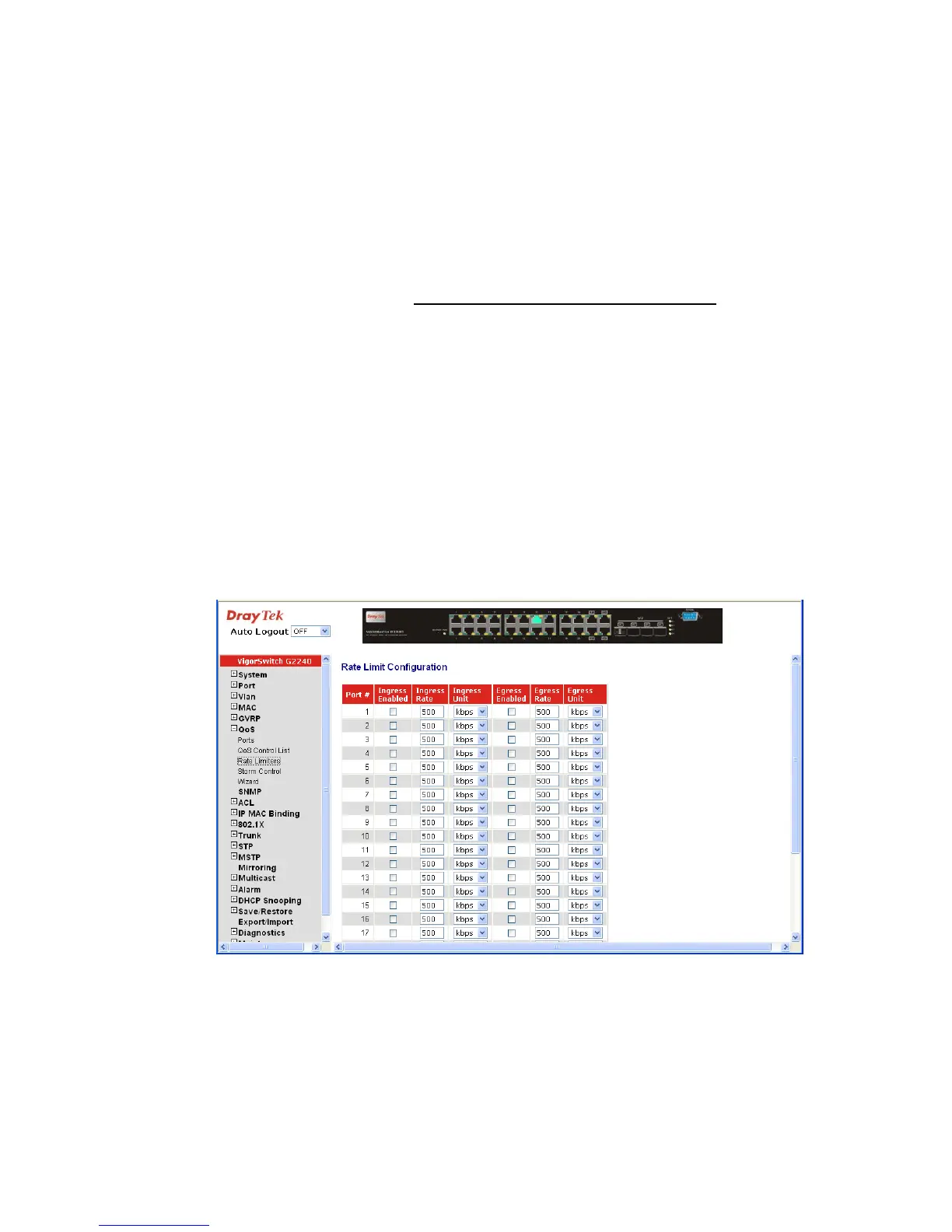

Function name:
Rate Limit Configuration
Function description:
Each port includes an ingress policer, and an egress shaper, which can limit the bandwidth
of received and transmitted frames. Ingress policer or egress shaper operation is controlled
per port in the Rate Limit Configuration.
Parameter description:
Port #: Port number.
Ingress Enabled: Ingress enabled to limit ingress bandwidth by ingress rate.
Ingress Rate: The configurable ingress rate range:
500 Kbps ~ 1000000 Kbps
|1 Mbps ~ 1000 Mbps
