Draytek VigorSwitch G2240 - Access Control List

VigorSwitch G2240 User’s Guide
81
2
2
.
.
8
8
.
.
3
3
A
A
c
c
c
c
e
e
s
s
s
s
C
C
o
o
n
n
t
t
r
r
o
o
l
l
L
L
i
i
s
s
t
t

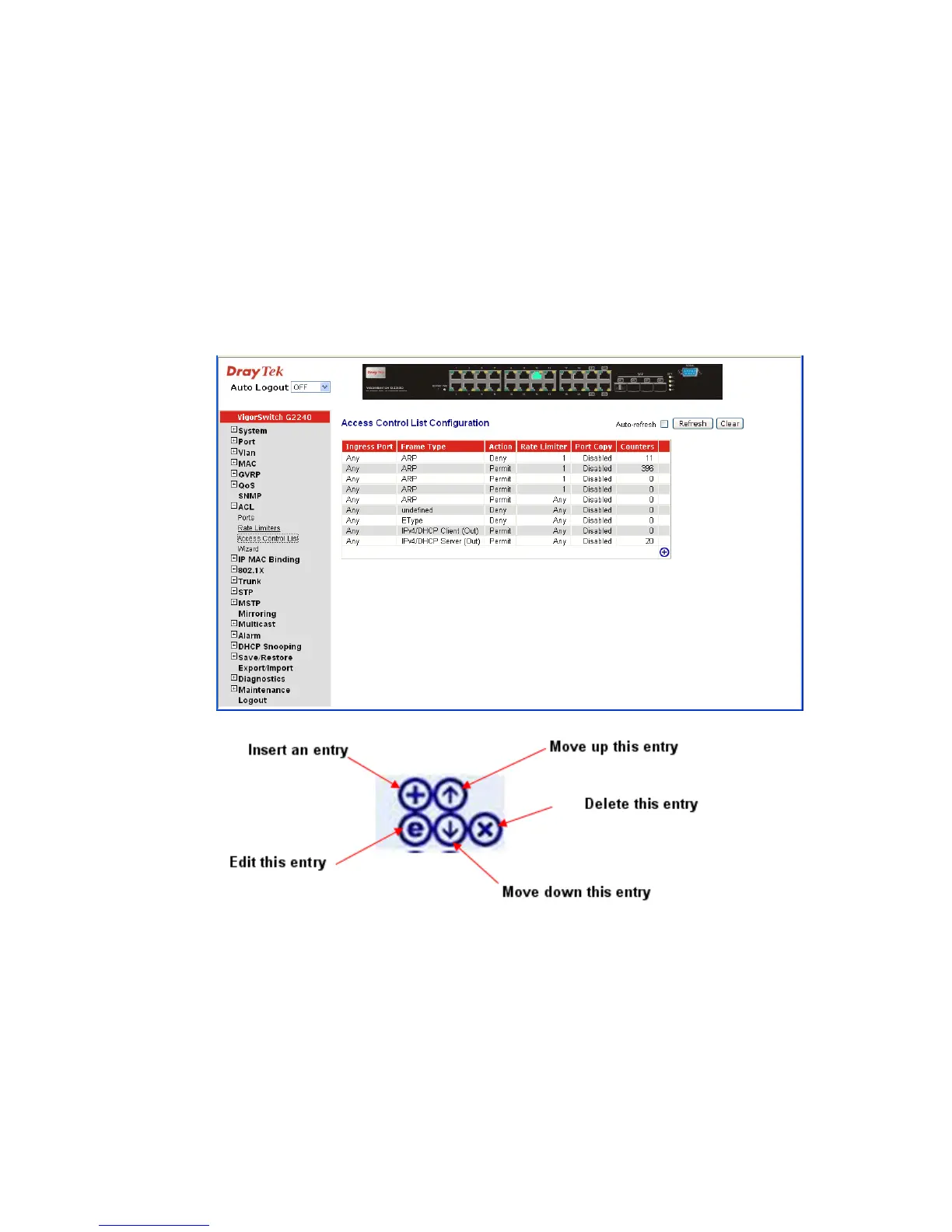

Function name:
ACL Control List Configuration
Function description:
The switch ACL function support up to 128 Access Control Entries (ACEs), using the
shared 128 ACEs for ingress classification. You can create an ACE and assign this ACE
for each port with <Any> or assign this ACE for a policy or assign this ACE for a port.
There are 8 policies, each port can select one of policy, then decides which of the
Permit/Deny, Rate Limitation and Port Copy actions would take according to the ACL
configuration packet’s IPv4, EtherType, ARP Protocol, MAC Parameters and VLAN
parameters.
Parameters description:
Ingress Port: Configurable Range: Any / Policy 1-8 / Port 1-24
Any: Apply this ACE rule for each port ingress classification
Policy 1-8: Apply this ACE rule for specific policy
Port 1-24: Apply this ACE rule for specific port ingress
classification
Frame Type: Range: Any / Ethernet Type / ARP / IPv4
Any: It is including all frame type
Ethernet Type: It is including all Ethernet frame type
