VAPOR-LOGIC
®
VERSION 6 INSTALLATION AND OPERATION MANUAL
Humidification system overview
Vapor-logic
display
Humidifier
OM-7942_VL
Dispersion assembly
Every humidification system with a Vapor-logic controller has a display connection and an Ethernet
connection for connecting to a Web interface on a computer. A GTS humidifier is shown here,
with display mounted on the cabinet. Other types of DriSteem humidifiers can have the display
contained within a control cabinet or mounted remotely.
Connect a computer directly to the
Vapor-logic board, or through a
network, to use the Web interface
OPERATING CONDITIONS
The Vapor-logic main board and display must be operated and stored within
the limits listed below. Exceeding these limits can result in poor display
performance and/or damage to the unit.
Main board
Operating temperature: 32 °F to 158 °F (0 °C to 70 °C)
Storage temperature: -40 °F to 185 °F (-40 °C to 85 °C)
Operating humidity range: <95% noncondensing
Display
Operating temperature: 32 °F to 158 °F (0 °C to 70 °C)
Storage temperature: -22 °F to 176 °F (-30 °C to 80 °C)
Operating humidity range: <90% noncondensing
OVERVIEW

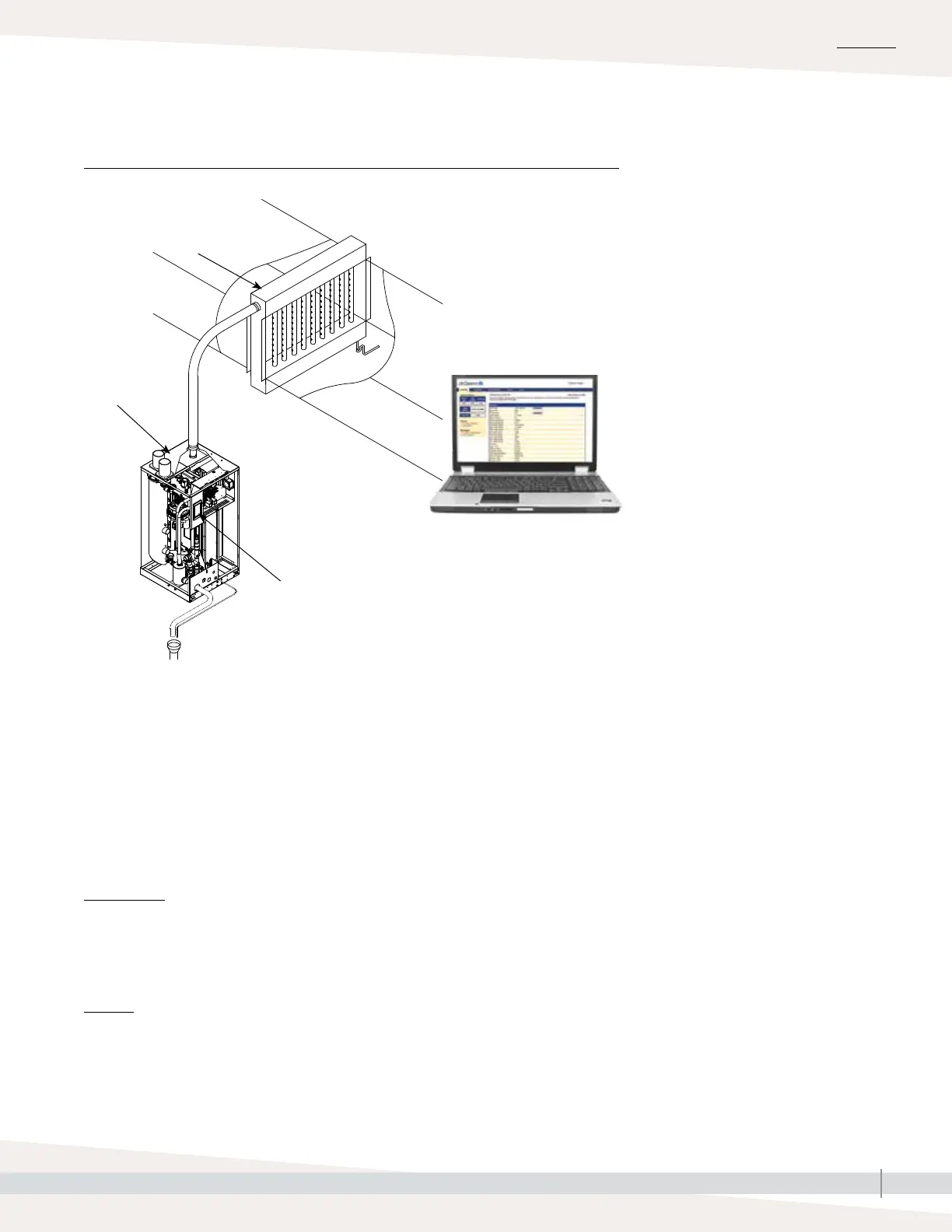

FIGURE 3-1: TYPICAL HUMIDIFICATION SYSTEM LAYOUT (GTS HUMIDIFIER SHOWN)
