DRI-STEEM XT Series Electrode Steam Humidifier Installation, Operation, and Maintenance Manual • Page 23
Dispersion: Interconnecting piping
requirements (continued)

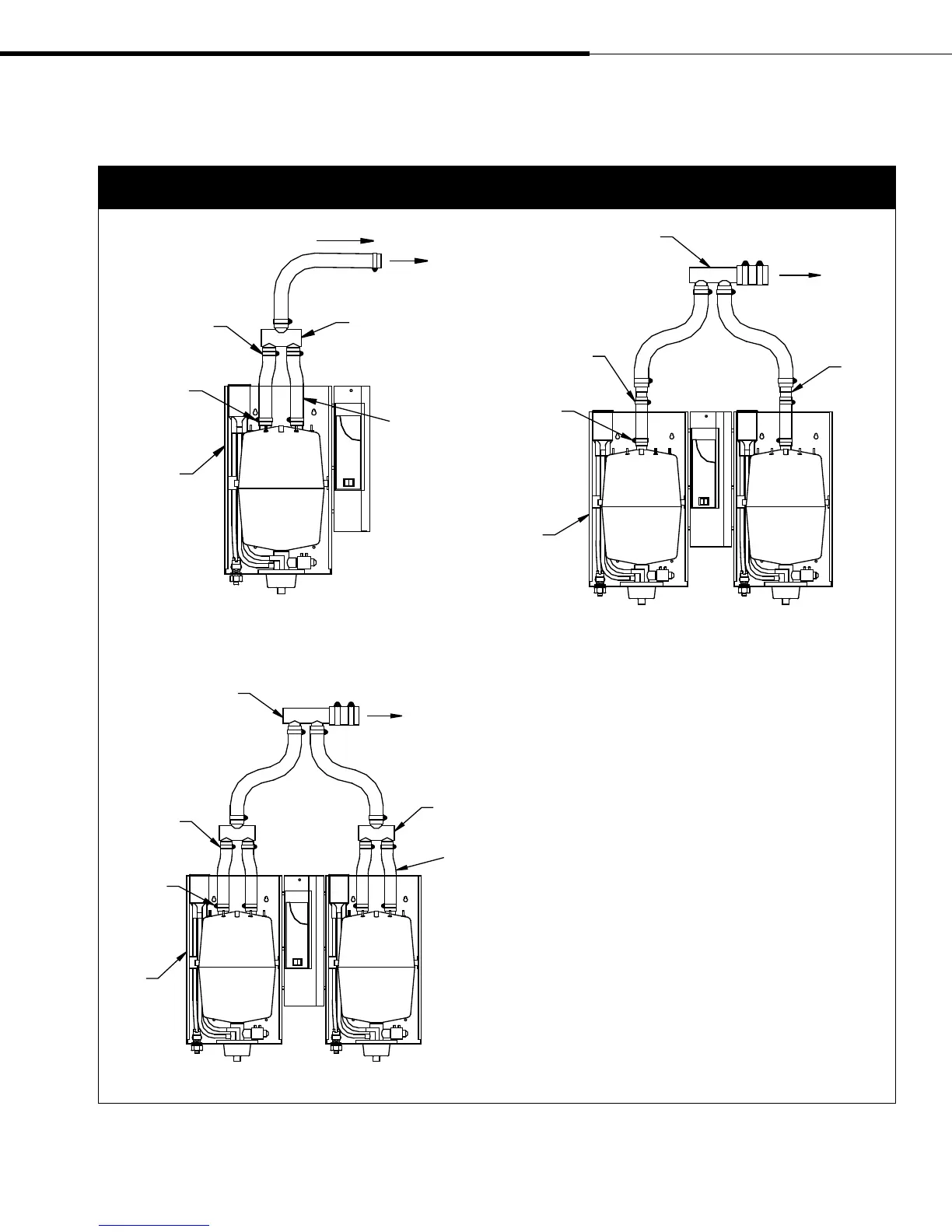

Figure 23-1:
Piping from steam cylinders to ducted dispersion assembly
Pitch 2"/ft (15% min.)
To dispersion
assembly
Worm-drive hose
clamp*
Stainless steel Y connector*
White braided hose*
Bolt hose
clamp*
XT-100
Humidifier
Note:
* A stainless steel Y connector, two white braided hoses, and four
hose clamps ship with each XT-100 with duct dispersion.
Bolt hose
clamp*
Stainless steel tube
connector, DRI-STEEM
part number 162820
To dispersion
assembly
Worm-drive
hose clamp*
Stainless
steel
adaptor*
XT-150
Humidifier
Note:
* Two stainless steel adaptors, two white braided hoses, and four hose
clamps ship with each XT-150 Humidifier with duct dispersion.
Bolt hose
clamp*
Stainless steel tube
connector, DRI-STEEM
part number 162820
To dispersion
assembly
Worm-drive
hose clamp*
Stainless steel
Y connector*
XT-200
Humidifier
Note:
* Two stainless steel Y connectors, four white braided hoses, and eight
hose clamps ship with each XT-200 Humidifier with duct dispersion.
White braided
hose*
OM-7442, OM-7443, OM-7444
